8210SRM40.30

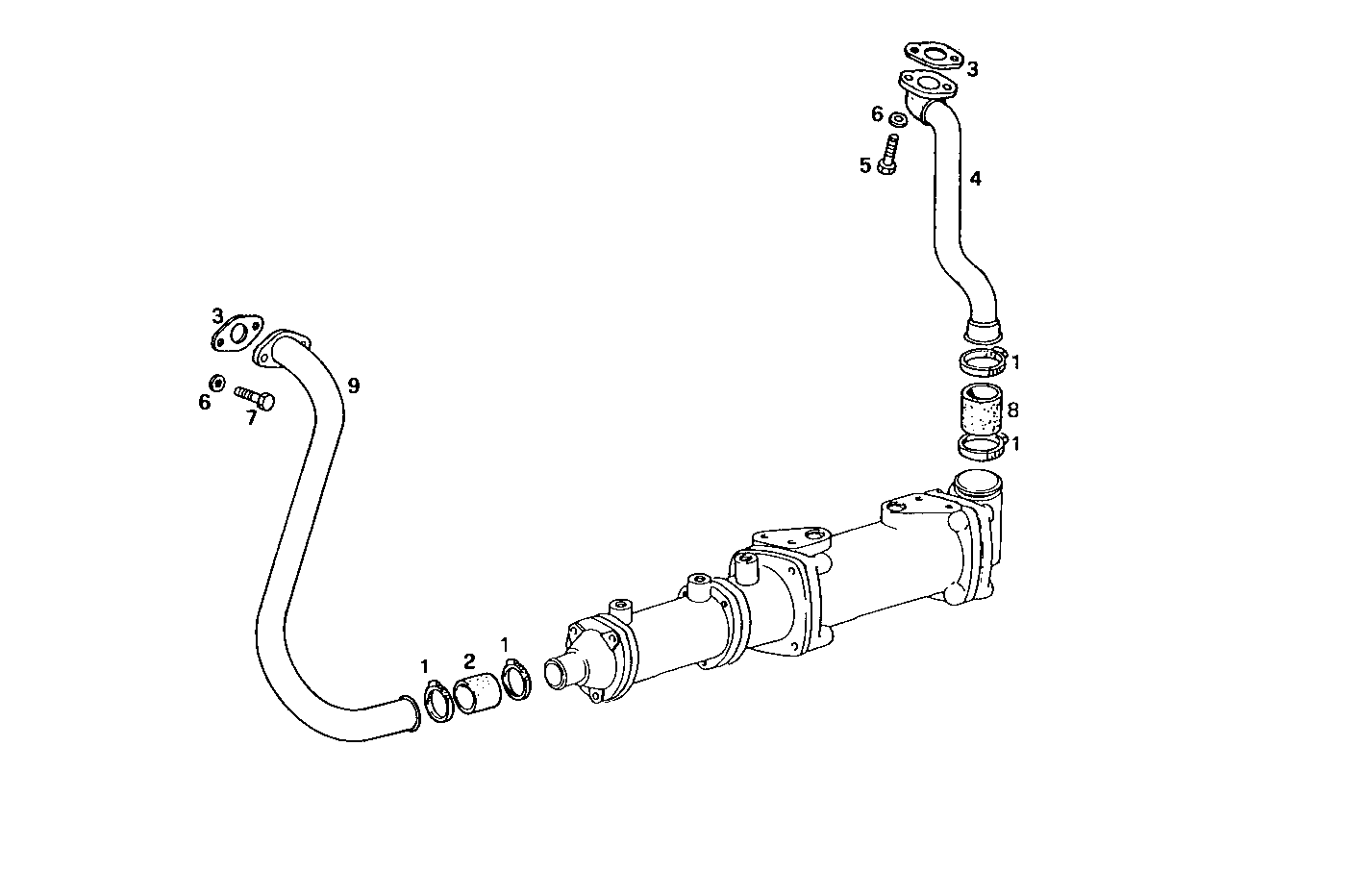

3210.200/05 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 17764891 | CLIP Ø40/60 MM |
| 2 | 8109706 | CONNECTOR SLEEVE |
| 3 | 4863951 | FLAT ENGINE GASKET |
| 4 | 4709713 | WATER PIPE |
| 5 | 16605734 | HEXAGON BOLT M8X30 MM |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 8 | 98437153 | WATER HOSE |
| 9 | 8029007 | WATER PIPE |
