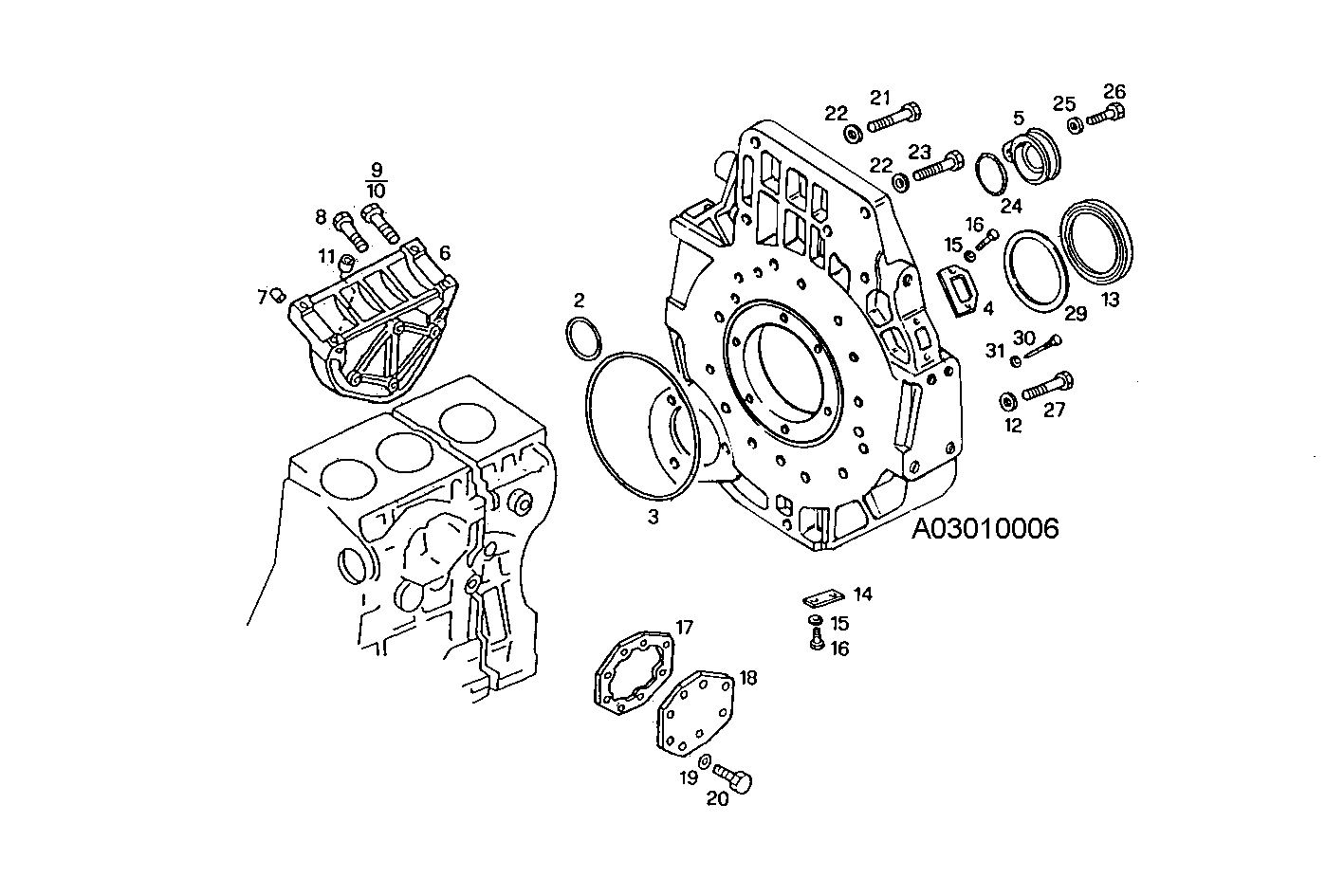

| Item |
Part number |
Description |
|
2 |
98464890 |
O-RING Ø74,6 MM SP=3,53 MM |
|
3 |
98464798 |
O-RING Ø247 MM SP=6,98 MM |
|
4 |
4558988 |
REAR C.CASE COVER |
|
5 |
4651691 |
COVER |
|
6 |
4643582 |
SUPPORT |
|
7 |
10837710 |
DOWEL PIN Ø10 MM |
|
8 |
16326524 |
SCREW |
|
9 |
16326824 |
LOCKING SCREW M12X60 MM |
|
10 |
16327024 |
LOCKING SCREW M12X70 MM |
|
11 |
4626942 |
DOWEL PIN |
|
12 |
4837398 |
WASHER Ø12X28 MM SP=4 MM |
|
13 |
98467213 |
WASHER |
|
14 |
4749426 |
COVER |
|
15 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
16 |
16605424 |
SCREW M8X16 MM (8.8) |
|
17 |
4863958 |
FLAT ENGINE GASKET |
|
18 |
4530113 |
COVER |
|
19 |
17088474 |
WASHER Ø6X12 MM |
|
20 |
16603624 |
HEXAGON BOLT M6X16 MM (8.8) |
|
21 |
15860130 |
HEXAGON BOLT M8X20 MM |
|
22 |
4604279 |
SPRING WASHER Ø14X32 MM SP=4 MM |
|
23 |
15977530 |
HEXAGON BOLT M14X1,5X60 MM |
|
24 |
17284281 |
O-RING Ø55,24X2,62 MM |
|
25 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
26 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
27 |
15540730 |
HEXAGON BOLT M12X1,25X45 MM |
|
29 |
4692004 |
RING |
|
30 |
61315660 |
SCREW |
|
31 |
12649624 |
WASHER Ø6 MM |
