8210SRM40.30A550

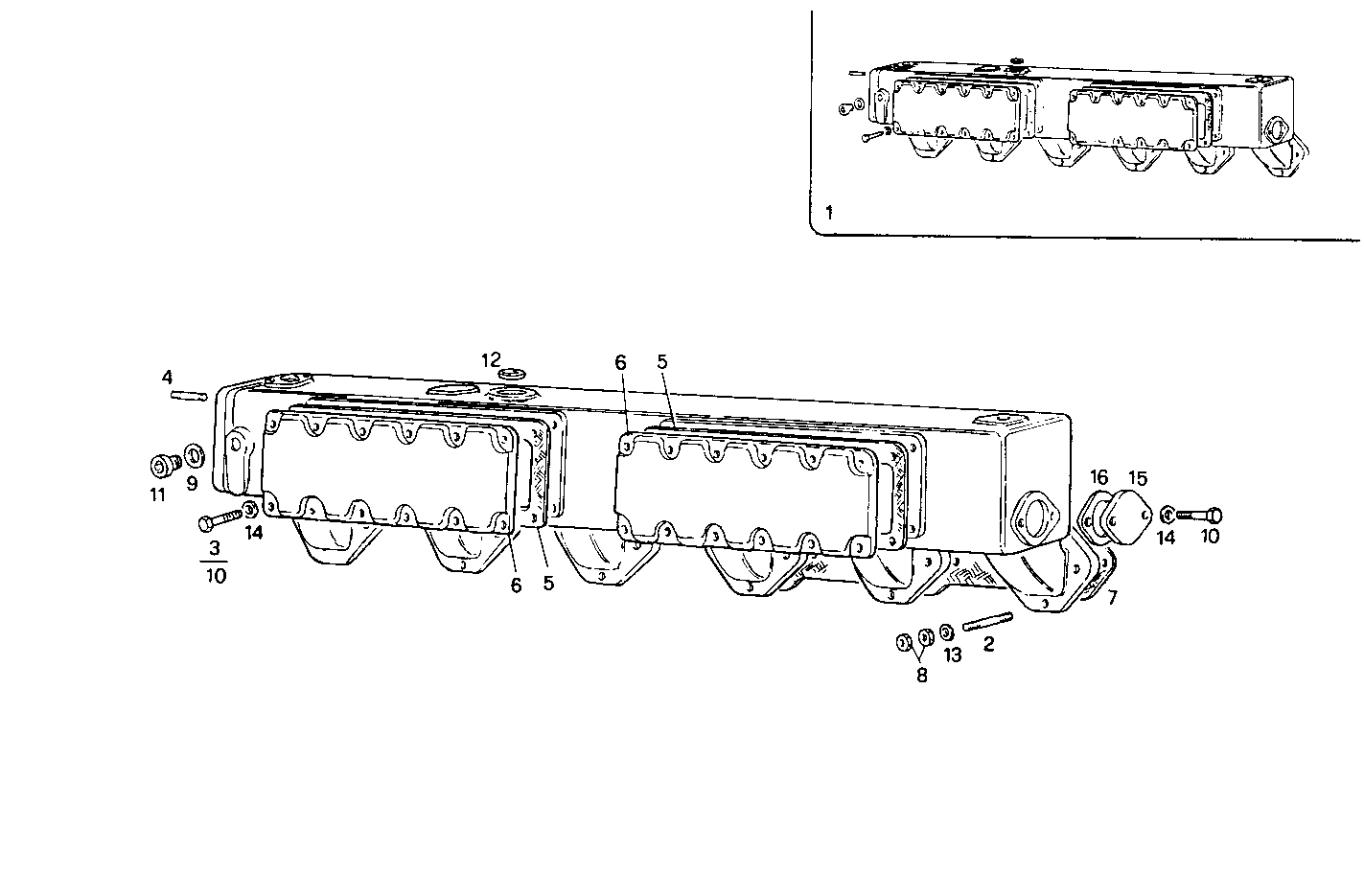

0760.120 EXHAUST MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 8028853 | COOLED EXHAUST MANIF. ASSY |
| 2 | 4842861 | STUD |
| 3 | 16605824 | HEXAGON BOLT M8X35 MM |
| 4 | 13449830 | STUD M10X1,25X35 MM |
| 5 | 8021800 | GASKET |
| 6 | 8021358 | COVER |
| 7 | 4839530 | EXH. MANIFOLD GKT |
| 8 | 4927248 | NUT M10X1,25 |
| 9 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 10 | 16605424 | SCREW M8X16 MM (8.8) |
| 11 | 16992540 | PLUG M18X1,5 |
| 12 | 16991170 | LOCK PLUG Ø36 MM |
| 13 | 16665614 | WASHER Ø10,5 MM |
| 14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 15 | 8100154 | COVER |
| 16 | 8009640 | GASKET |
