8210SRM40.30A550

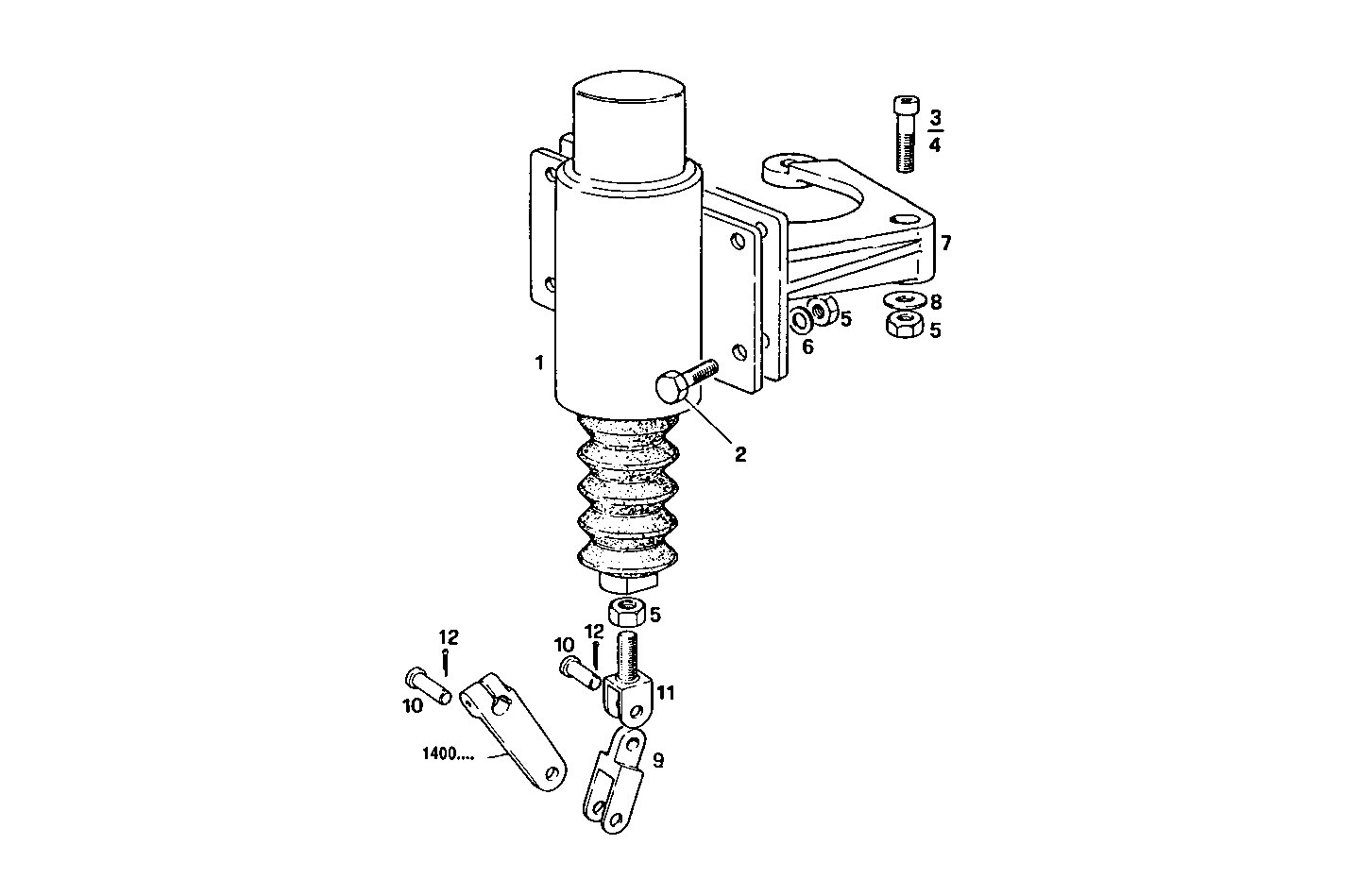

5650.040 ELECTRIC STOP ENGINE
Item | Part number | Description |
---|---|---|
1 | 8105421 | SOLENOID ASSY 24V |
2 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
3 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
4 | 16689324 | SCREW M6X25 |
5 | 17037821 | HEXAGON NUT M6X1 |
6 | 17088474 | WASHER Ø6X12 MM |
7 | 8109114 | SUPPORT |
8 | 17494734 | WASHER Ø6X11,8X1,6 MM |
9 | 8108833 | CLEVIS |
10 | 17718411 | PIN Ø5 MM |
11 | 8108834 | CLEVIS |
12 | 16582501 | SPLIT PIN Ø1,6X12 MM |
