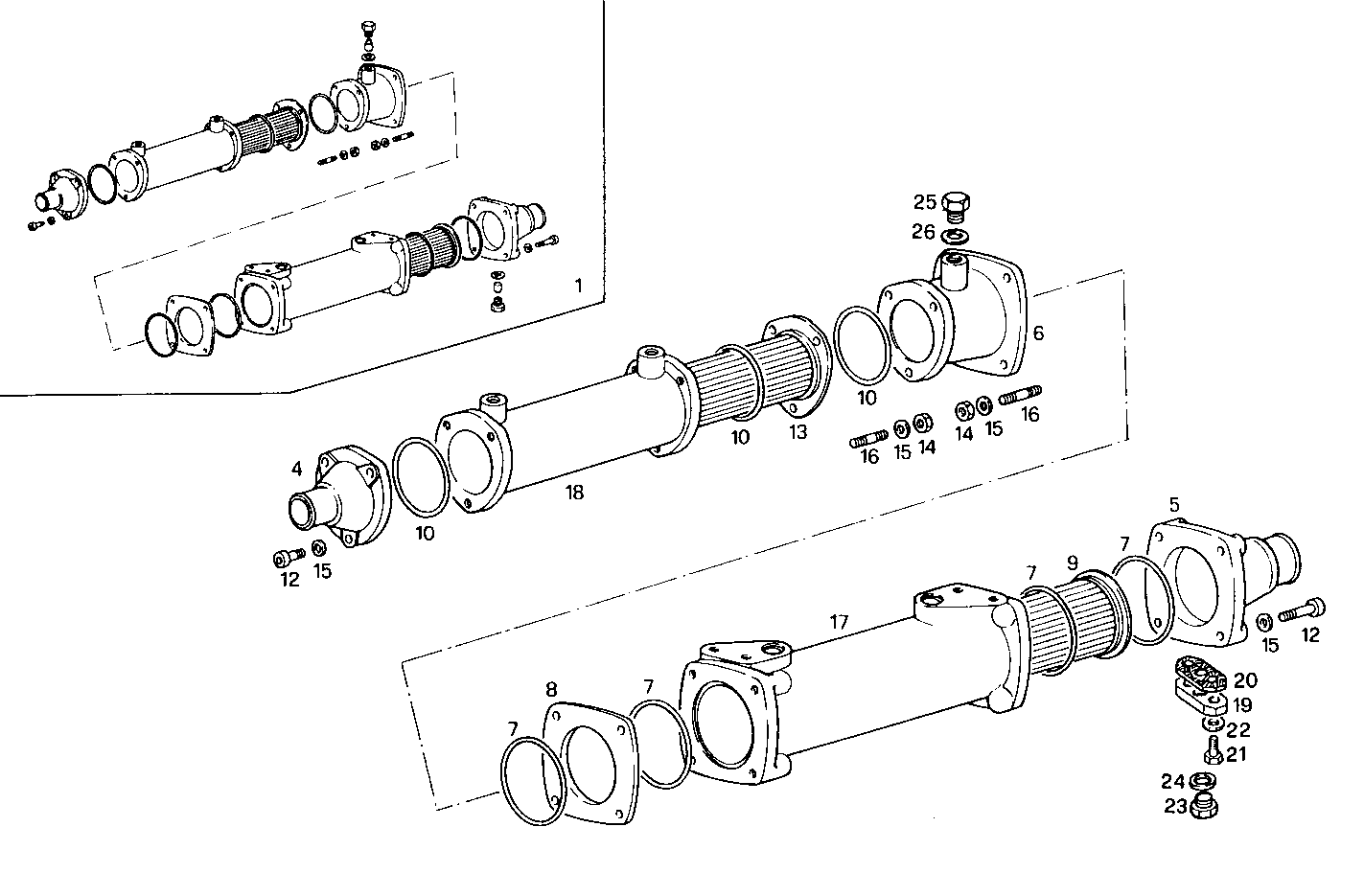

| Item |
Part number |
Description |
|
1 |
8028854 |
MARINE GEAR OIL HEAT EXCH ASSY |
|
4 |
8024581 |
HEAT EXCHANG.COVER |
|
5 |
4837667 |
HEAT EXCHANG.COVER |
|
6 |
8024284 |
FLANGE |
|
7 |
8019074 |
O-RING |
|
8 |
4837668 |
SPACING BAR |
|
9 |
4837665 |
TUBE STACK |
|
10 |
17290881 |
O-RING Ø82,14X3,53 MM |
|
12 |
16690824 |
CYLIND-HEAD SCREW M8X35 MM |
|
13 |
8017384 |
TUBE STACK |
|
14 |
17037931 |
HEXAGON NUT M8X1,25 |
|
15 |
17800474 |
WASHER Ø8X15X1,0 MM |
|
16 |
16746824 |
STUD M8X30 MM (8.8) |
|
17 |
4837664 |
HEAT EXANGER BODY |
|
18 |
8017382 |
HEAT EXANGER BODY |
|
19 |
4872744 |
COVER |
|
20 |
4863948 |
FLAT ENGINE GASKET |
|
21 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
22 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
23 |
16992411 |
THREADED PLUG M16X1,5 |
|
24 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
25 |
16992511 |
THREADED PLUG M18X1,5 |
|
26 |
4858610 |
WASHER Ø18X24 MM SP=1,5 MM |
