8210SRM45.31

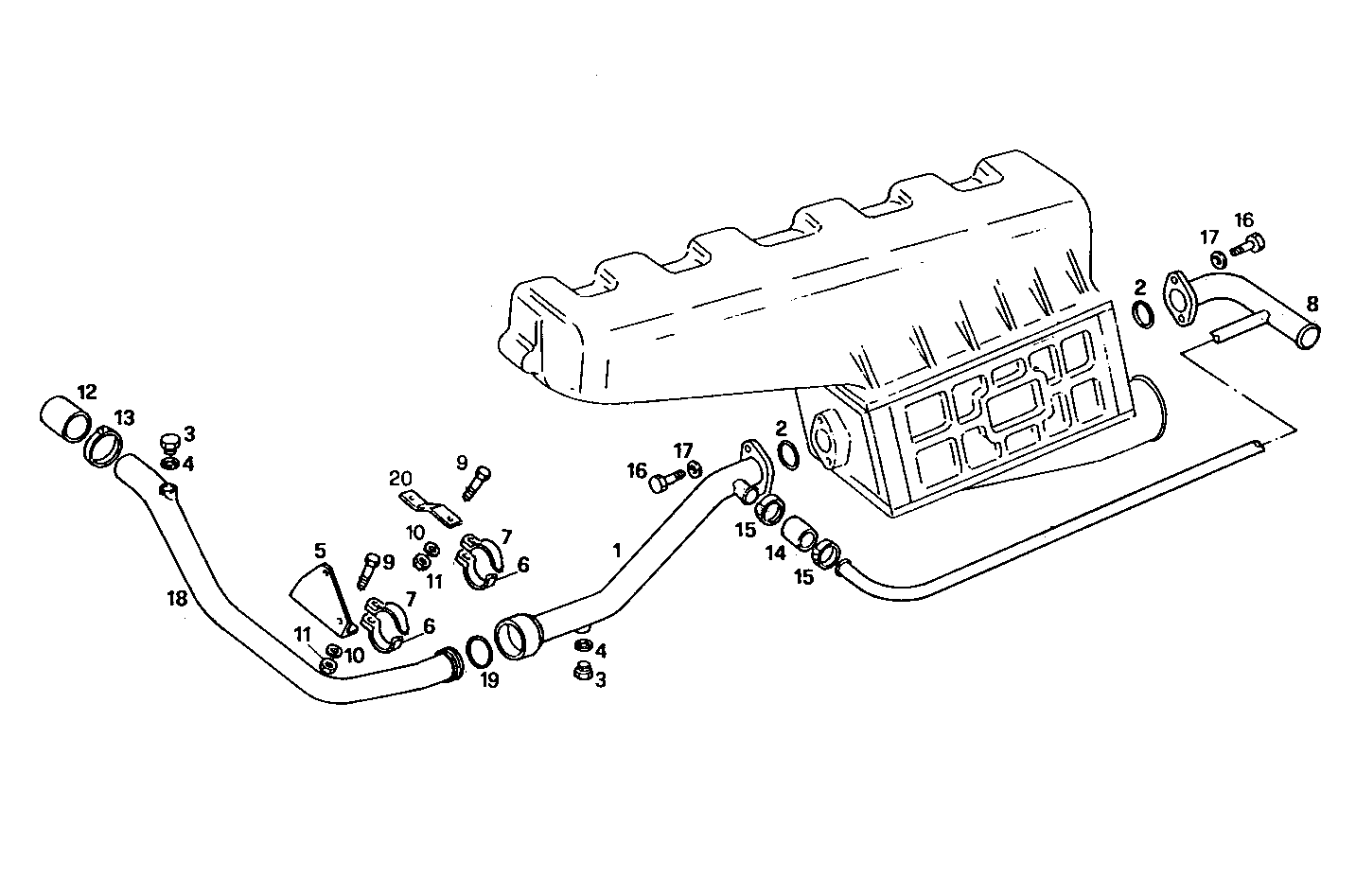

3210.232/03 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8028991 | WATER PIPE |
| 2 | 17289981 | O-RING Ø53,57X3,53 MM |
| 3 | 16992611 | THREADED PLUG M22X1,5 |
| 4 | 10263460 | WASHER Ø22X28X1,5 MM |
| 5 | 8024546 | RETAINER |
| 6 | 8017810 | CLAMP |
| 7 | 8017811 | CLAMP |
| 8 | 8028992 | WATER PIPE |
| 9 | 16607624 | SCREW M10X25 |
| 10 | 17090174 | SPRING WASHER Ø10X20 MM |
| 11 | 17038121 | HEXAGON NUT M10 |
| 12 | 8107383 | RUBBER SLEEVE Ø60 MM |
| 13 | 17765093 | CLIP Ø60/80 MM |
| 14 | 8007804 | RUBBER SLEEVE WATER |
| 15 | 17764793 | CLIP Ø32/50 MM |
| 16 | 16609824 | HEXAGON BOLT M12X1,75X25 MM |
| 17 | 17091074 | WASHER Ø12X24X2,8 MM |
| 18 | 8024544 | WATER PIPE |
| 19 | 17290581 | O-RING Ø72,63X3,53 MM |
| 20 | 8006219 | RETAINER |
