8210SRM45.31

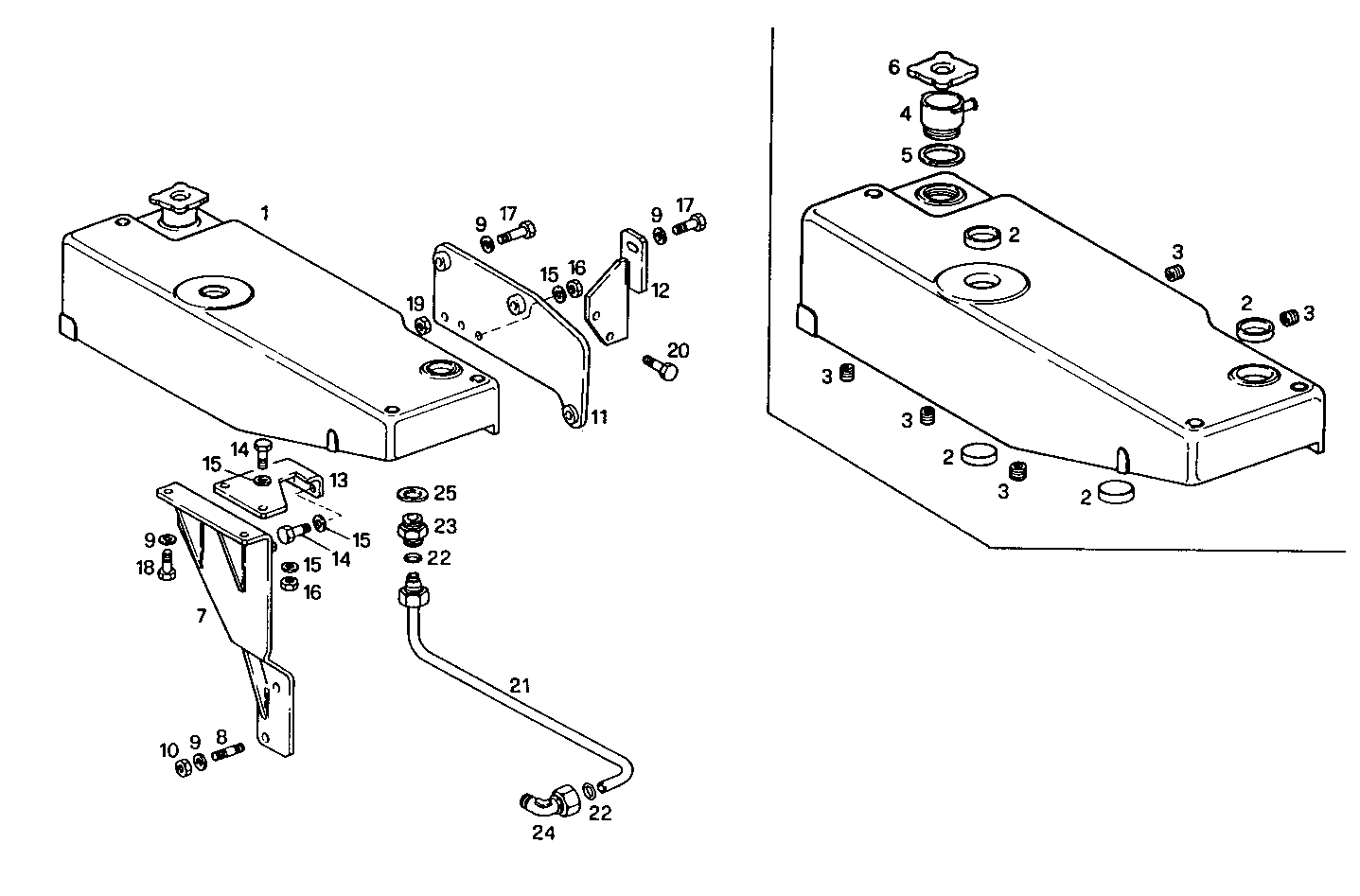

3290.018 EXPANSION TANK

Iveco/FPT EXPANSION TANK

Item Part number Description
1 8024798 WATER EXPANSION TANK ASSY
2 16991170 LOCK PLUG Ø36 MM
3 17873371 THREADED INSERT M10X1,5
4 8102030 FILLER NECK
5 10265360 SEAL GASKET Ø40X48 MM SP=1,5 MM
6 4930462 PLUG
7 8025148 SUPPORT
8 13453221 STUD M10X1,25X20 MM
9 17090474 SPRING WASHER Ø10X27 MM SP=2,5
10 17038221 HEXAGON NUT M10
11 8025149 PLATE
12 8025152 RETAINER
13 8030088 RETAINER
14 16605624 HEXAGON BOLT M8X25 MM (8.8)
15 17089874 WASHER Ø8X22 MM
16 17037931 HEXAGON NUT M8X1,25
17 16607724 HEXAGON BOLT M10X1,5X30 MM (8.8)
18 16607924 HEXAGON BOLT M10X1,5X40 MM
19 17038121 HEXAGON NUT M10
20 16606024 SCREW M8X45 MM
21 8030057 WATER PIPE
22 8024649 O-RING Ø12 MM
23 8012712 PIPE SOCKET M22X1,5/M22X1,5
24 8111454 PIPE SOCKET M22X1,5
25 10263460 WASHER Ø22X28X1,5 MM
