8210SRM45.31

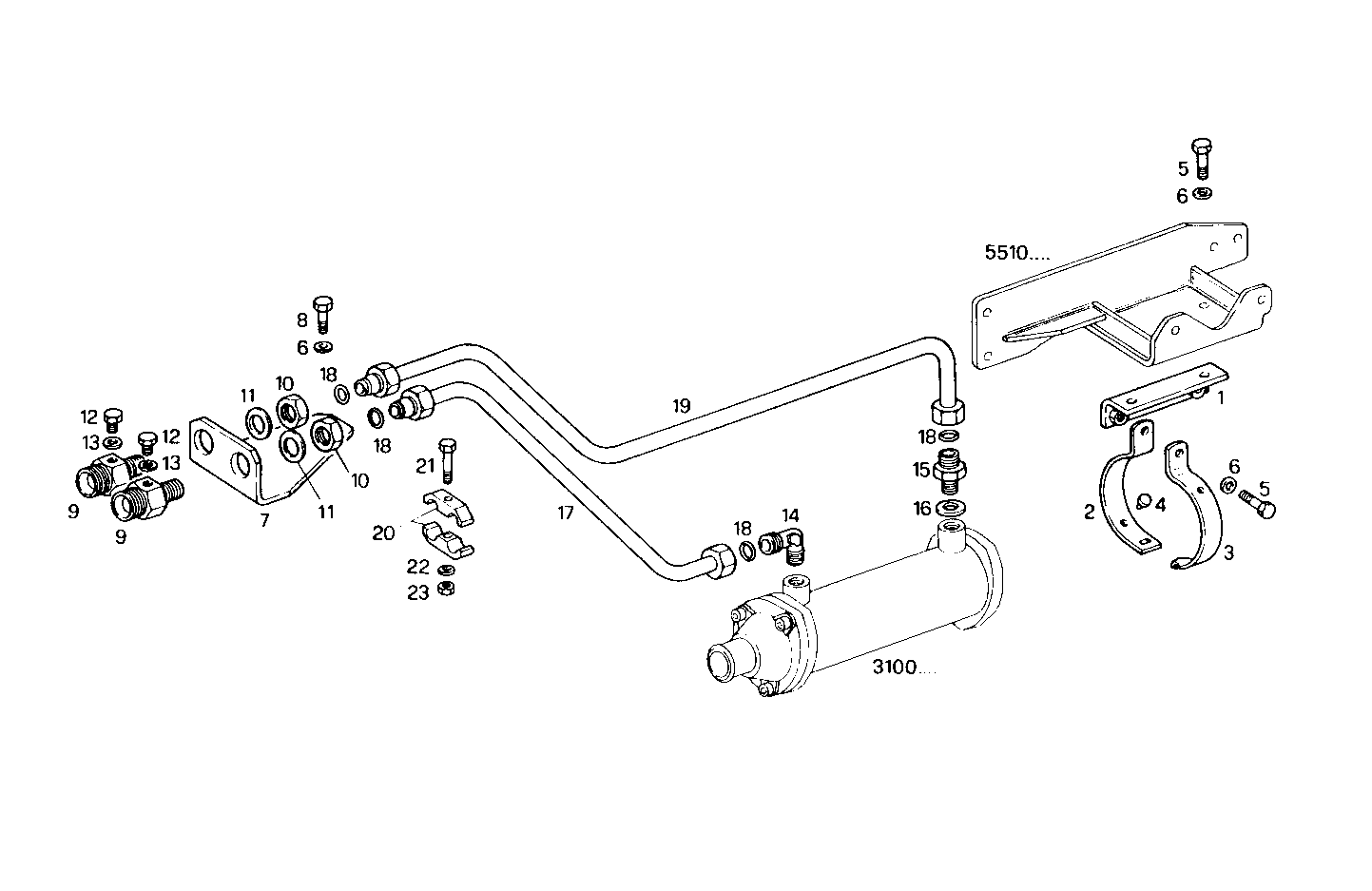

3350.009 REVERSER WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8024416 | RETAINER |
| 2 | 8017424 | CLAMP |
| 3 | 8017425 | CLAMP |
| 4 | 1366290 | RUBBER LUG |
| 5 | 16607624 | SCREW M10X25 |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 8024550 | RETAINER |
| 8 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 9 | 8111751 | PIPE SOCKET |
| 10 | 16981131 | NUT M22X1,5 |
| 11 | 17801174 | SPRING WASHER Ø22X40 MM |
| 12 | 11903111 | LOCK PLUG M10X1,25 |
| 13 | 4858606 | GASKET Ø10X14X1 MM |
| 14 | 8011456 | PIPE SOCKET |
| 15 | 8011519 | PIPE SOCKET |
| 16 | 11271460 | GASKET Ø21X26X1,5 MM |
| 17 | 8024834 | WATER PIPE L=870 MM |
| 18 | 8024649 | O-RING Ø12 MM |
| 19 | 8024835 | WATER PIPE L=1010 MM |
| 20 | 8010505 | CLAMP Ø16 MM |
| 21 | 16605824 | HEXAGON BOLT M8X35 MM |
| 22 | 17094914 | WASHER 8x16 |
| 23 | 17037931 | HEXAGON NUT M8X1,25 |
