8210SRM45.31

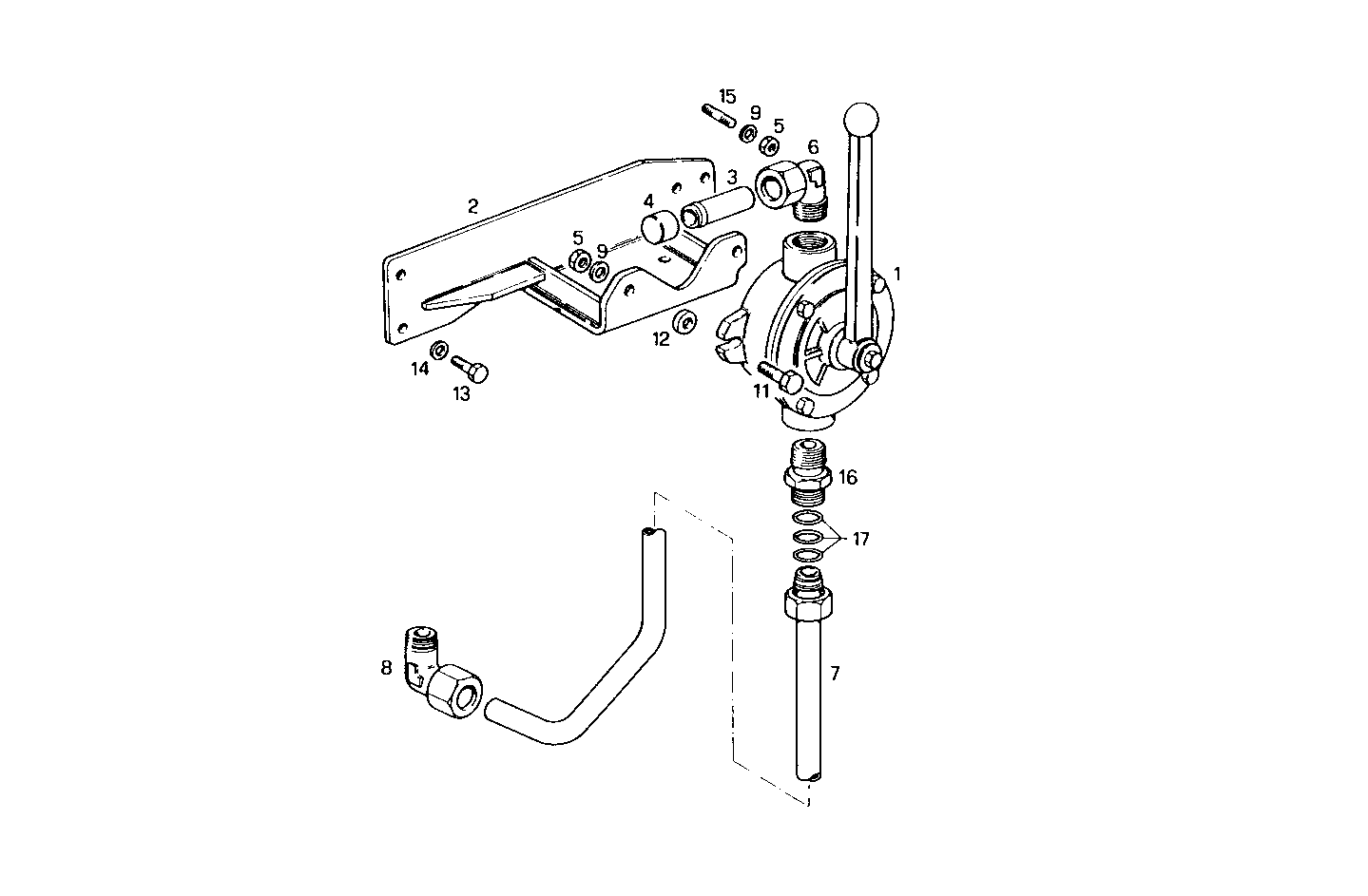

5510.035 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8012424 | MAR. ENG. SUCTION PUMP |
| 2 | 8024293 | RETAINER |
| 3 | 8104754 | OIL LINE |
| 4 | 93013662 | PLUG |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 8111456 | PIPE SOCKET |
| 7 | 8024836 | OIL LINE |
| 8 | 8111454 | PIPE SOCKET M22X1,5 |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 16605734 | HEXAGON BOLT M8X30 MM |
| 12 | 17816014 | SPACING BAR Ø8,5X18X5 MM |
| 13 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 14 | 17090174 | SPRING WASHER Ø10X20 MM |
| 15 | 16729224 | STUD M8X16 MM |
| 16 | 8011519 | PIPE SOCKET |
| 17 | 8024649 | O-RING Ø12 MM |
