8210SRM45.31

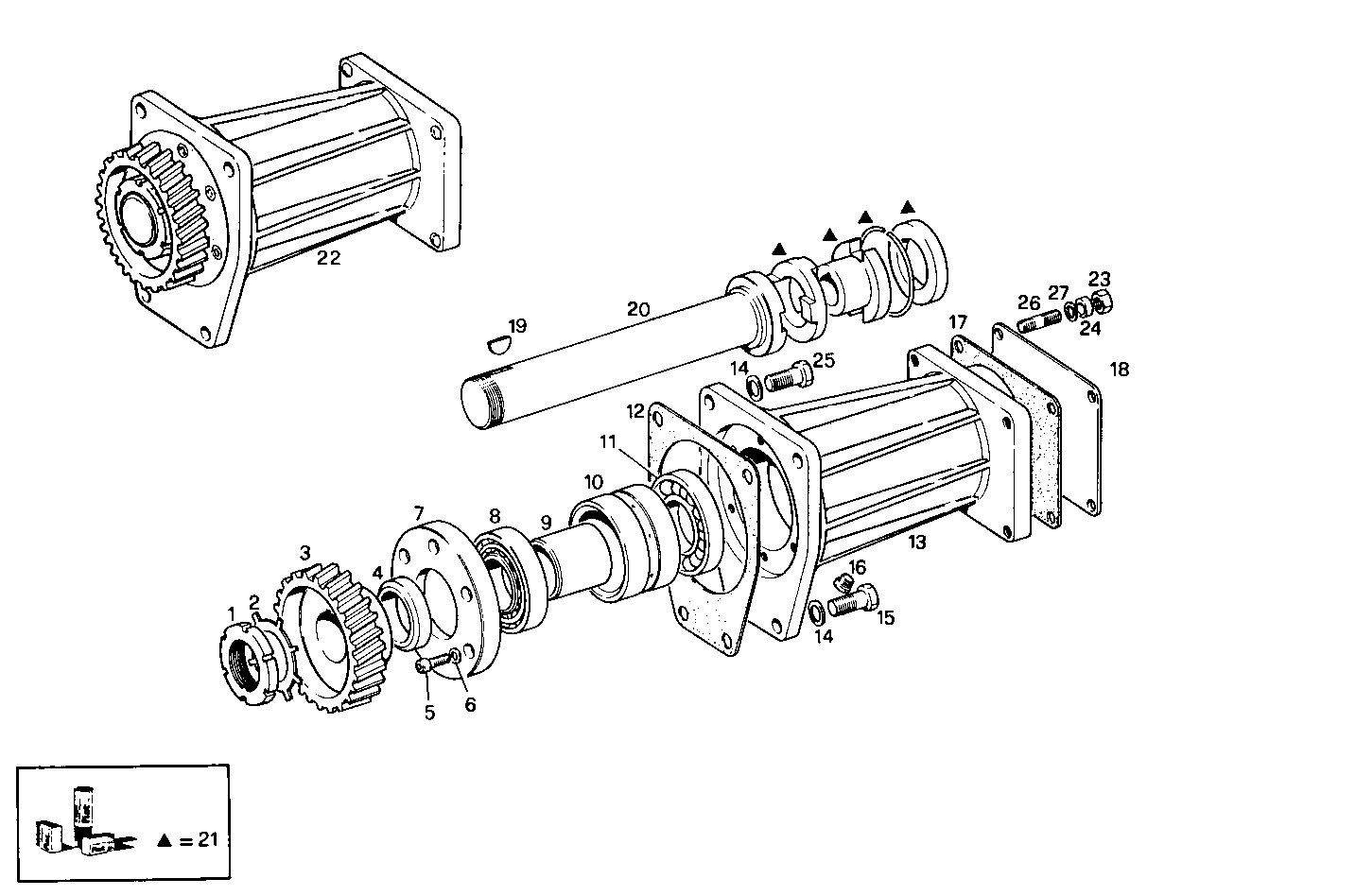

A09080020 ARRANGED FOR HYDRAULIC PUMP - left front
| Item | Part number | Description |
|---|---|---|
| 1 | 10214110 | GROOVED NUT |
| 2 | 4513025 | LOCKING PLATE |
| 3 | 8023068 | GEAR |
| 4 | 8023069 | SPACING BAR |
| 5 | 14305321 | CYLIND-HEAD SCREW M6X20 MM |
| 6 | 17088474 | WASHER Ø6X12 MM |
| 7 | 61586412 | COVER |
| 8 | 26798470 | DRIVE BEARING |
| 9 | 61586410 | SPACING BAR |
| 10 | 61586411 | SPACING BAR |
| 11 | 20705250 | DRIVE BEARING |
| 12 | 4864032 | FLAT ENGINE GASKET |
| 13 | 8007094 | SUPPORT |
| 14 | 17090174 | SPRING WASHER Ø10X20 MM |
| 15 | 11307021 | HEXAGON BOLT M10X40 MM |
| 16 | 61584412 | LOCK PLUG |
| 17 | 4863974 | FLAT ENGINE GASKET |
| 18 | 61585907 | COVER |
| 19 | 17221220 | KEY 5X9 MM |
| 20 | 61586409 | SHAFT |
| 21 | 8090978 | KIT-HYDRAULIC PUMP |
| 22 | 8023084 | SUPPORT ASSY |
| 23 | 17037931 | HEXAGON NUT M8X1,25 |
| 24 | 13605811 | SPACER SP=1,5 MM |
| 25 | 11227921 | HEXAGON BOLT M10X28 MM |
| 26 | 17364824 | STUD M6X30 MM |
| 27 | 11193879 | SPRING WASHER Ø8X16 MM |
