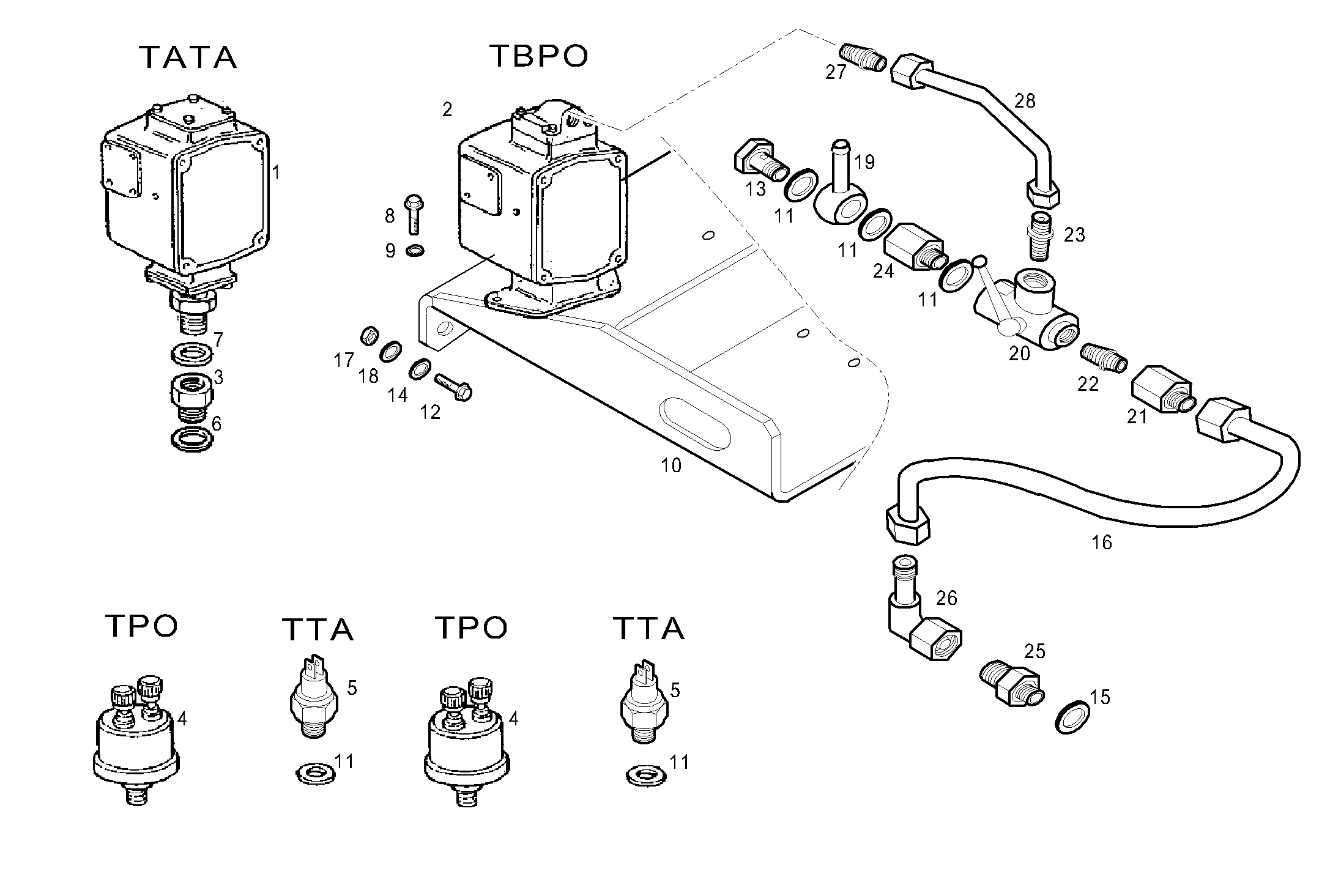

Iveco/FPT SENDER UNITS FOR GENERATOR UNIT

Item Part number Description
1 8110742 TRANSMITTER
2 8110741 TRANSMITTER TBPO
3 8021213 PIPE SOCKET
4 8100417 TRANSMITTER TPO
5 8100418 TRANSMITTER TTA
6 98429281 SEAL GASKET Ø24X31 MM SP=1,5 MM
7 11271460 GASKET Ø21X26X1,5 MM
8 16603524 SCREW M6X12 MM (8.8)
9 17088474 WASHER Ø6X12 MM
10 503110548 PLATE
11 4858608 SEAL GASKET dia.14x19,5x1,5
12 16607824 HEXAGON BOLT M10X35 MM (8.8)
13 4864082 BANJO BOLT M12X1,5X25 MM
14 16665604 WASHER Ø10X20 MM
15 4858607 WASHER Ø12X17 MM SP=1,5 MM
16 8024896 HOSE
17 17038131 HEXAGON NUT M10
18 17800574 SPRING WASHER Ø10,5X21 MM
19 98405514 PIPE SOCKET
20 503110300 RETAINER COCK
21 503110301 PIPE SOCKET
22 503110302 PIPE SOCKET
23 503110303 PIPE SOCKET
24 503110304 PIPE SOCKET
25 503110542 PIPE SOCKET
26 503110547 PIPE SOCKET
27 503110554 PIPE SOCKET
28 503110556 CONNECTION PIPE
