8210SRM45.31

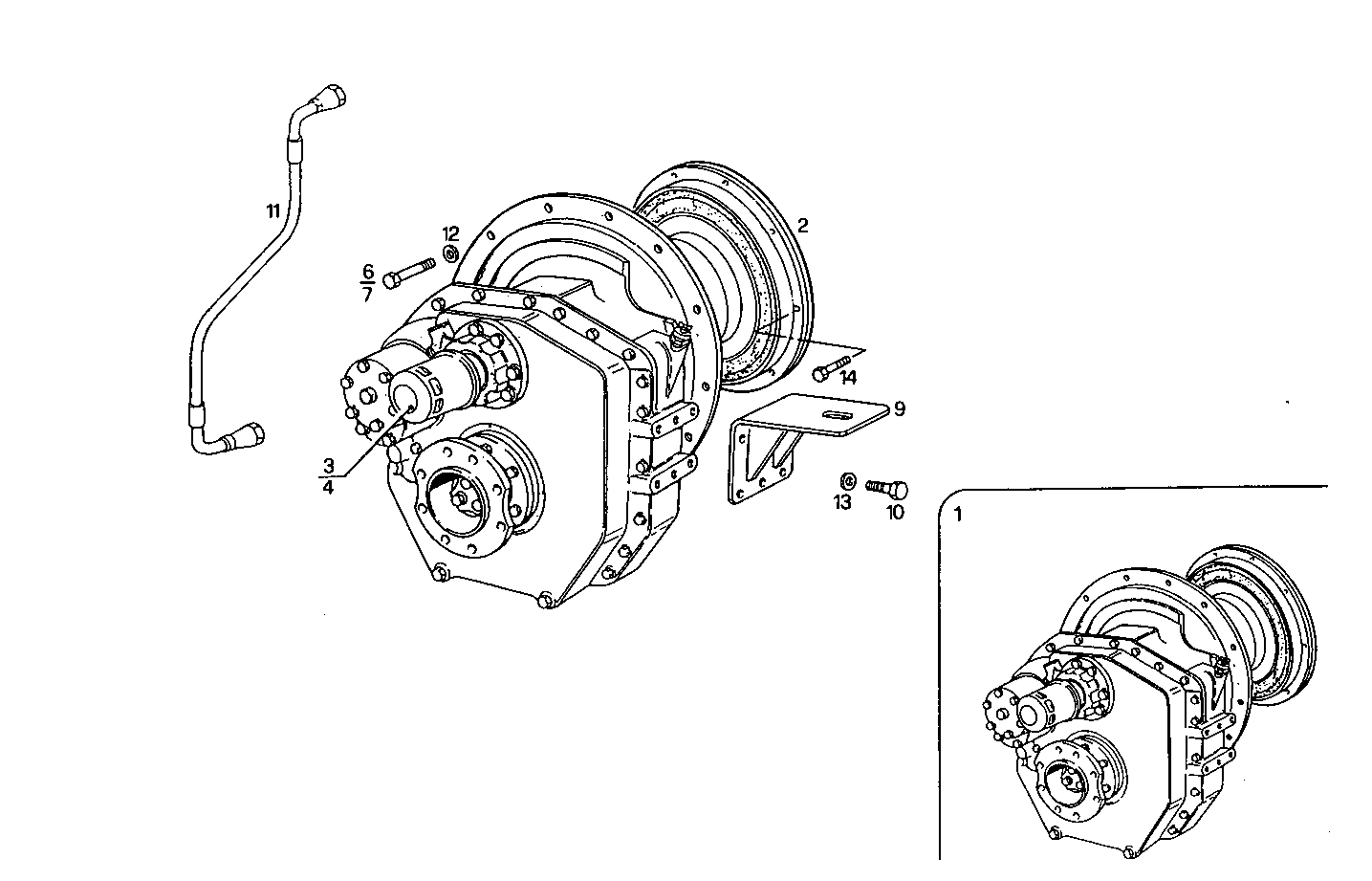

A51410027 MARINE GEAR ZF-MPM IRM 320-A1 (ang. 7º) - ratio 2.08:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8023230 | MARINE GEAR 2.08:1 |
| 2 | 8023060 | FLEXIBLE COUPLING |
| 3 | 8111320 | OIL FILTER CARTRIDGE |
| 4 | 8111321 | OIL FILTER CARTRIDGE |
| 6 | 11306921 | SCREW M10X1,25X30 |
| 7 | 10923621 | HEXAGON BOLT M10X1,25X35 MM |
| 9 | 8108819 | SUPPORT |
| 10 | 4932875 | SCREW M16X2X45 |
| 11 | 8006875 | HOSE |
| 12 | 17090174 | SPRING WASHER Ø10X20 MM |
| 13 | 11200279 | SPRING WASHER Ø17 MM |
| 14 | 14274621 | LOCKING SCREW M12X1,25X35 |
