8210SRM45.31

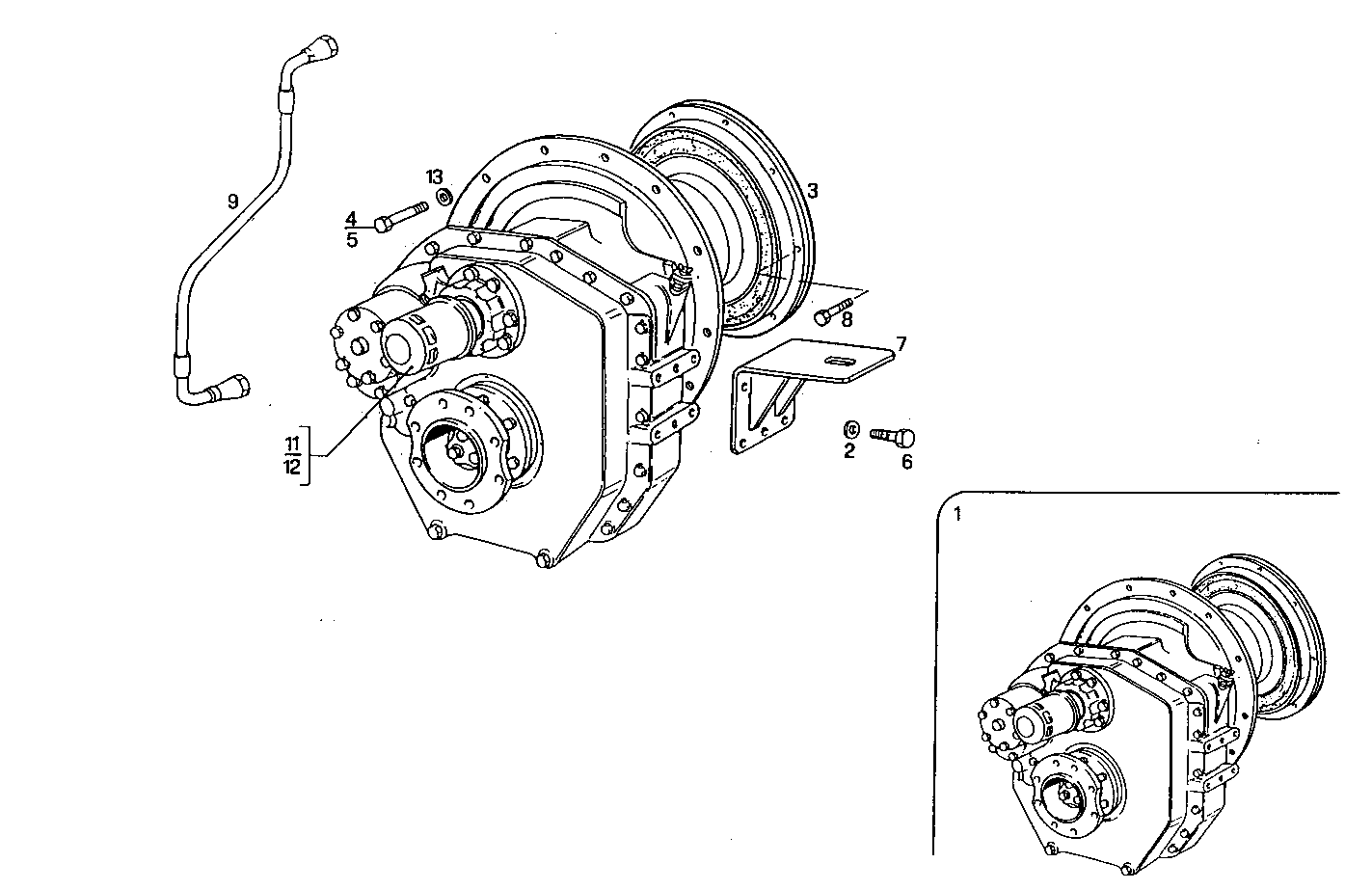

A51560033 MARINE GEAR ZF-MPM IRM 320-1 - ratio 2.96:1

Iveco/FPT MARINE GEAR ZF-MPM IRM 320-1

Item Part number Description
1 8023265 MARINE GEAR 2,96:1
2 11200279 SPRING WASHER Ø17 MM
3 8023060 FLEXIBLE COUPLING
4 11306921 SCREW M10X1,25X30
5 10923621 HEXAGON BOLT M10X1,25X35 MM
6 4932875 SCREW M16X2X45
7 8108819 SUPPORT
8 14274921 LOCKING SCREW
9 8006875 HOSE
11 8111320 OIL FILTER CARTRIDGE
12 8111321 OIL FILTER CARTRIDGE
13 17090174 SPRING WASHER Ø10X20 MM
