8210SRM45.31

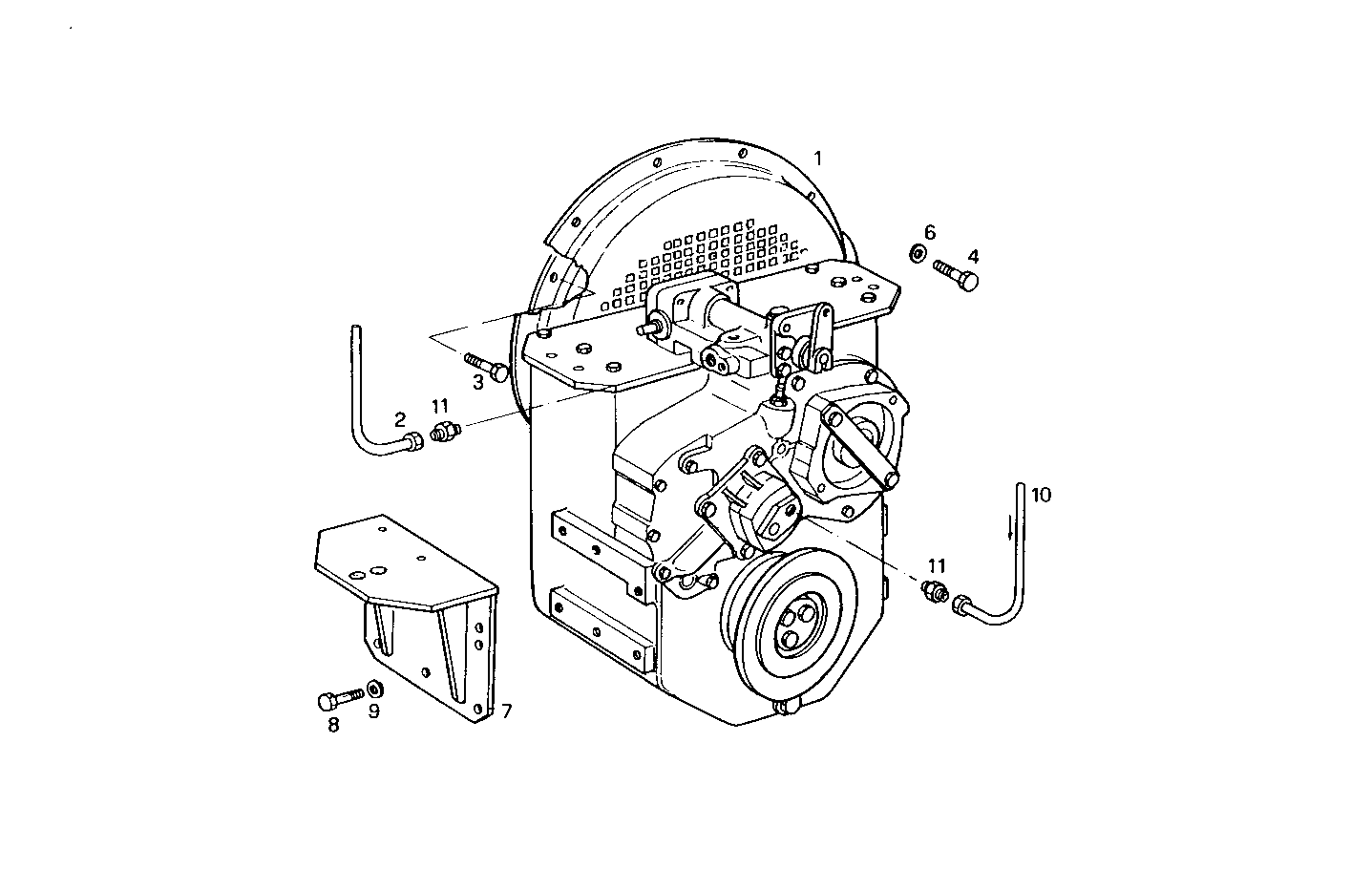

A51580007 MARINE GEAR TWIN DISC MG 5111 - ratio 3.92:1
Item | Part number | Description |
---|---|---|
1 | 8024894 | MARINE GEAR 3,92:1 |
2 | 8005840 | HOSE |
3 | 14274621 | LOCKING SCREW M12X1,25X35 |
4 | 11306921 | SCREW M10X1,25X30 |
6 | 17090174 | SPRING WASHER Ø10X20 MM |
7 | 8010464 | SUPPORT |
8 | 4933337 | SCREW |
9 | 17092374 | SPRING WASHER Ø16X34X3,6 MM |
10 | 8113774 | HOSE |
11 | 8113794 | PIPE SOCKET |
