8210SRM45.31A550

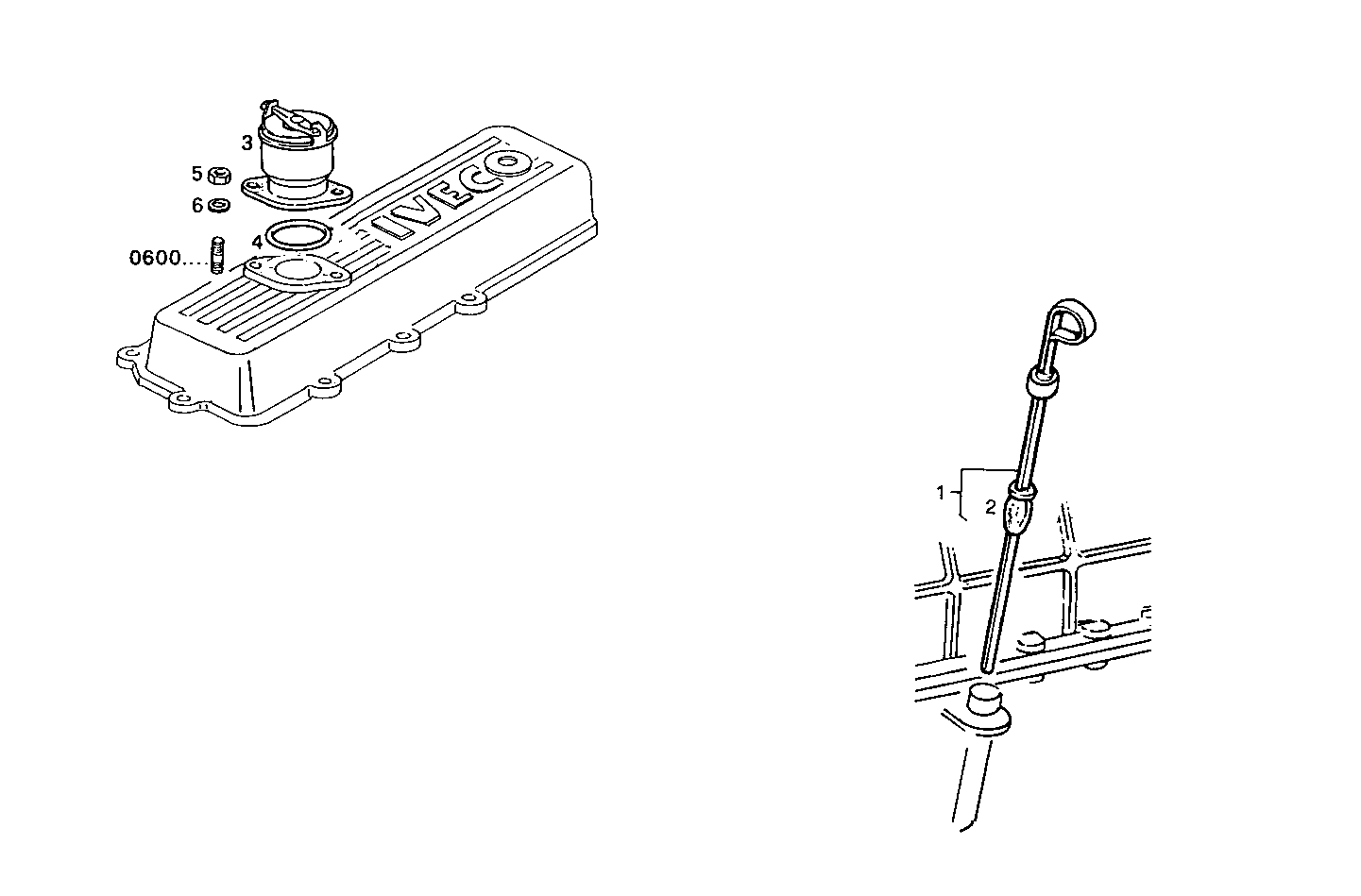

2710.084 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 4652926 | OIL DIPSTICK ASSY |
| 2 | 762035 | RUBBER PLUG |
| 3 | 8020561 | FILLER NECK |
| 4 | 17290081 | O-RING Ø56,74 MM SP=3,53 MM |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
