8210SRM45.31A550

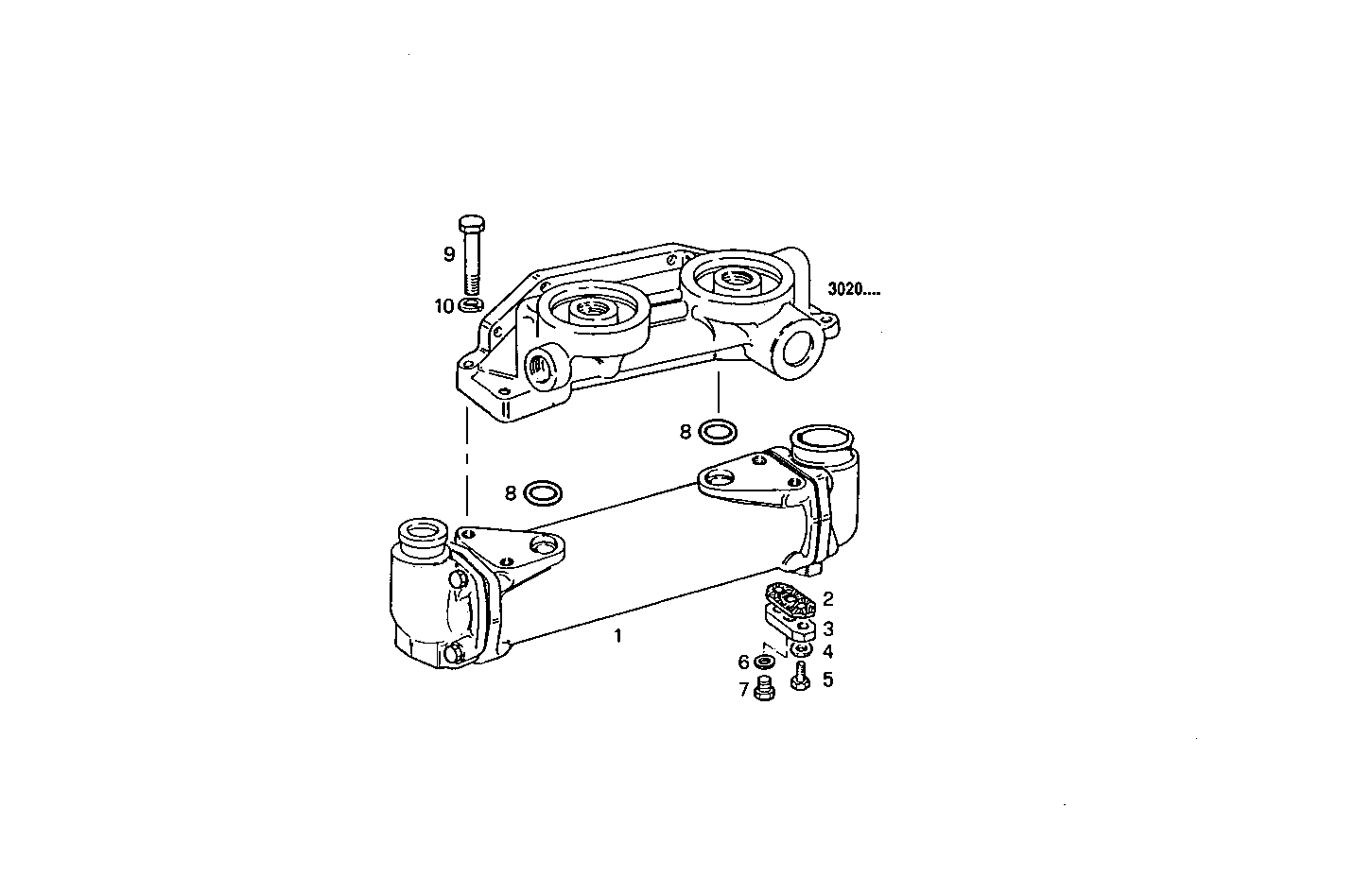

3100.102 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 4803814 | HEAT EXCHANGER ASSY MOTA |
| 2 | 4863948 | FLAT ENGINE GASKET |
| 3 | 4872744 | COVER |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 6 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 7 | 16992411 | THREADED PLUG M16X1,5 |
| 8 | 98465110 | O-RING Ø31,42 MM SP=2,62 MM |
| 9 | 11306924 | HEXAGON BOLT M10X1,25X30 MM |
| 10 | 17090274 | WASHER Ø10X20 MM |
