8210SRM45.31A550

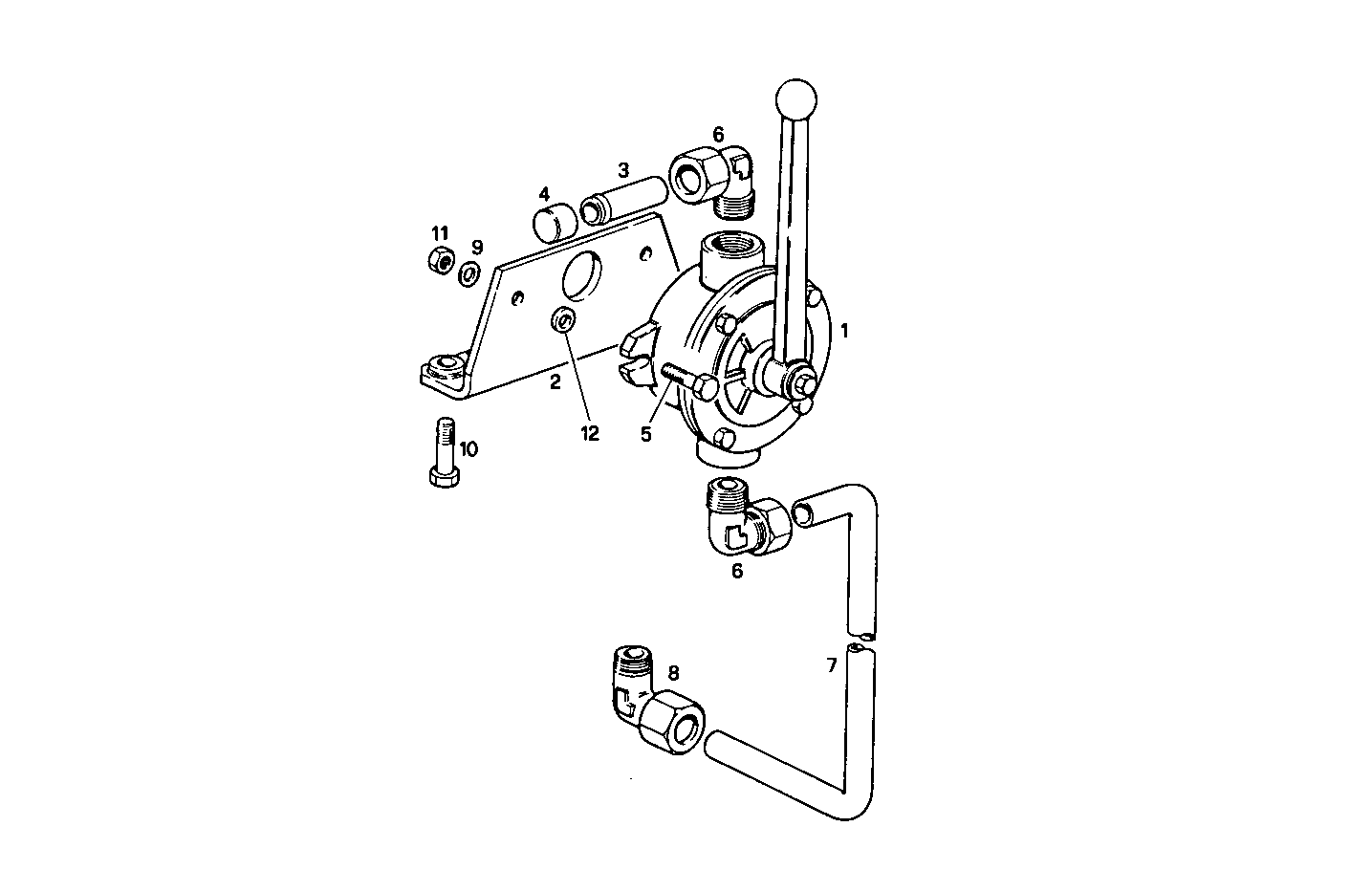

5510.047 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8012424 | MAR. ENG. SUCTION PUMP |
| 2 | 8110727 | RETAINER |
| 3 | 8104754 | OIL LINE |
| 4 | 93013662 | PLUG |
| 5 | 16605734 | HEXAGON BOLT M8X30 MM |
| 6 | 8111456 | PIPE SOCKET |
| 7 | 8012689 | OIL LINE |
| 8 | 8111454 | PIPE SOCKET M22X1,5 |
| 9 | 17089574 | WASHER Ø8X16 MM |
| 10 | 10923621 | HEXAGON BOLT M10X1,25X35 MM |
| 11 | 17037931 | HEXAGON NUT M8X1,25 |
| 12 | 13605711 | SPACER Ø8,5x18 MM |
