8280SRC20.00

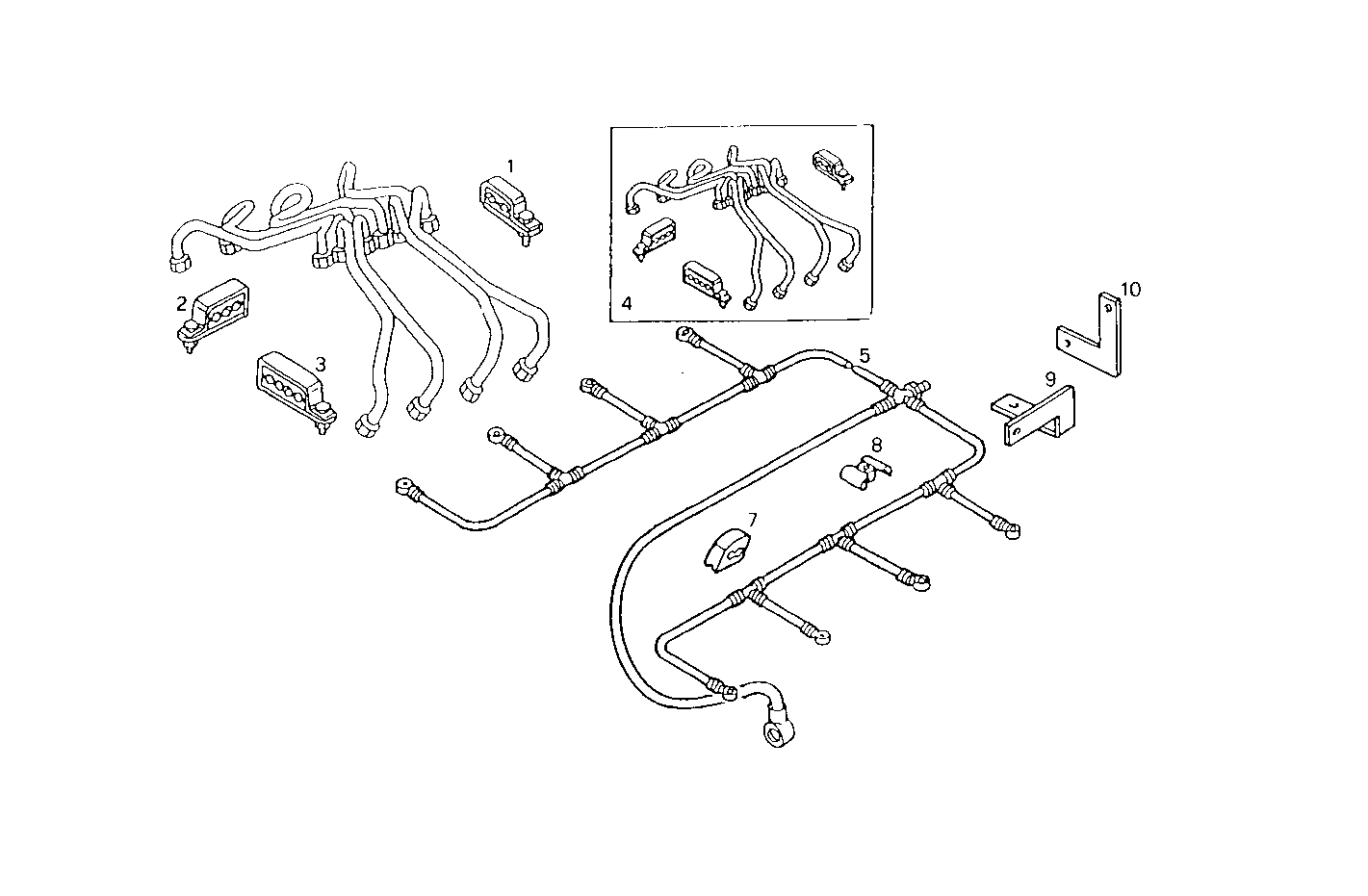

2020.111 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 4806611 | FASTENING BRACKET |
| 2 | 4806612 | FASTENING BRACKET |
| 3 | 4806613 | RETAINER |
| 4 | 98438398 | INJECTION LINE SET ASSY |
| 5 | 99486290 | FUEL LINE |
| 7 | 4696015 | RUBBER PAD |
| 8 | 99434055 | SPRING CLAMP |
| 9 | 98498472 | FASTENING BRACKET [from 116190] |
| 10 | 98498473 | FASTENING BRACKET [from 116190] |
