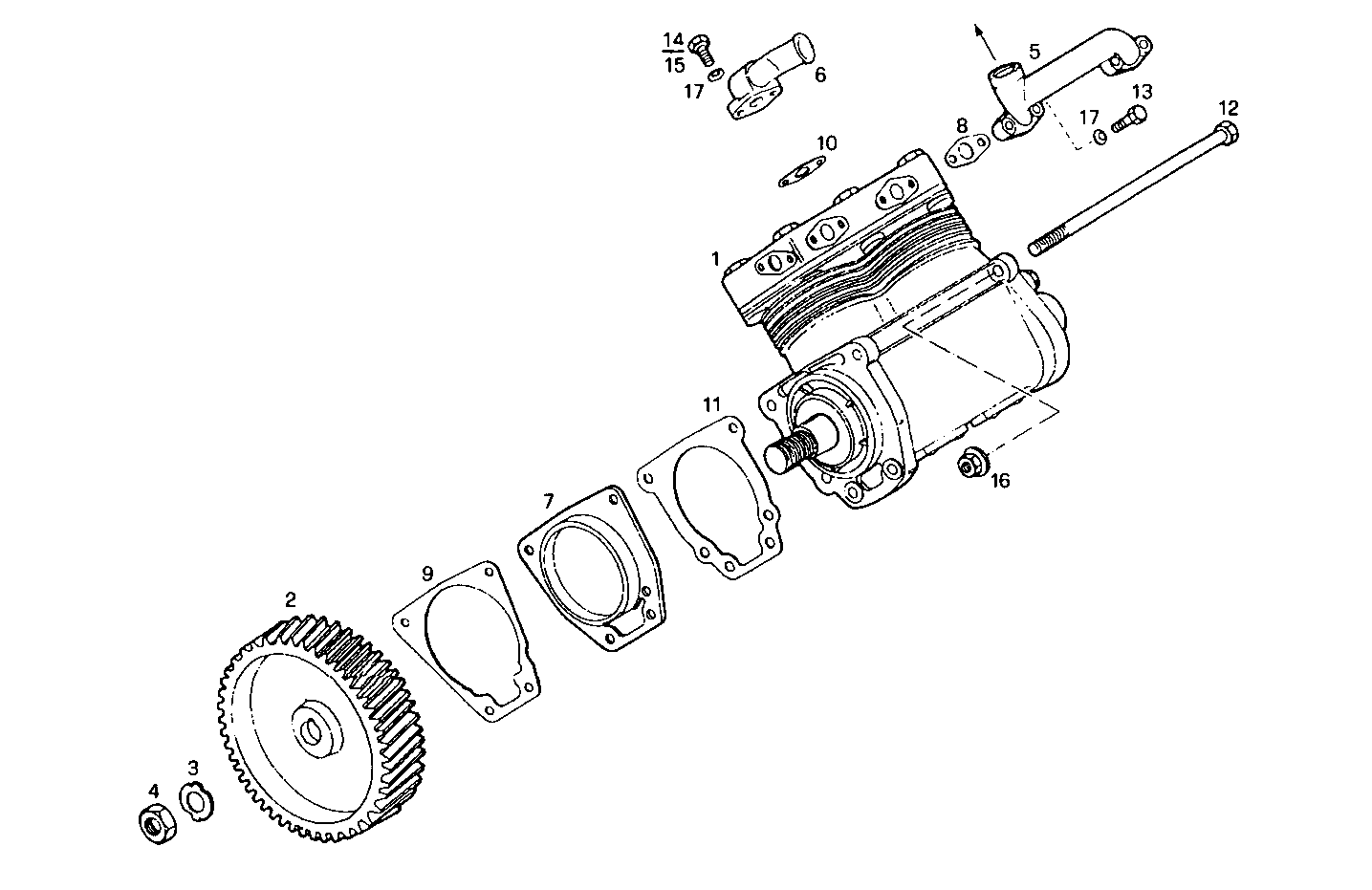

Item |
Part number |
Description |
1 |
4860565 |
AIR COMPRESSOR ASSY WABCO |
2 |
4688638 |
COMP. DRIVE GEAR |
3 |
4709364 |
LOCKING PLATE |
4 |
99471892 |
HEXAGON NUT |
5 |
4717885 |
CONNECTING PIPE |
6 |
4774579 |
SUCTION LINE |
7 |
4672628 |
SPACING BAR |
8 |
4863497 |
FLAT ENGINE GASKET |
9 |
4863515 |
FLAT ENGINE GASKET |
10 |
4863538 |
FLAT ENGINE GASKET |
11 |
4864032 |
FLAT ENGINE GASKET |
12 |
16162230 |
HEXAGON BOLT M10X1,25X290 MM |
13 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
14 |
16605924 |
SCREW M8X40 MM |
15 |
16606024 |
SCREW M8X45 MM |
16 |
14059411 |
HEXAGON NUT M10X1,25 |
17 |
17089574 |
WASHER Ø8X16 MM |
