8280SRC21.00

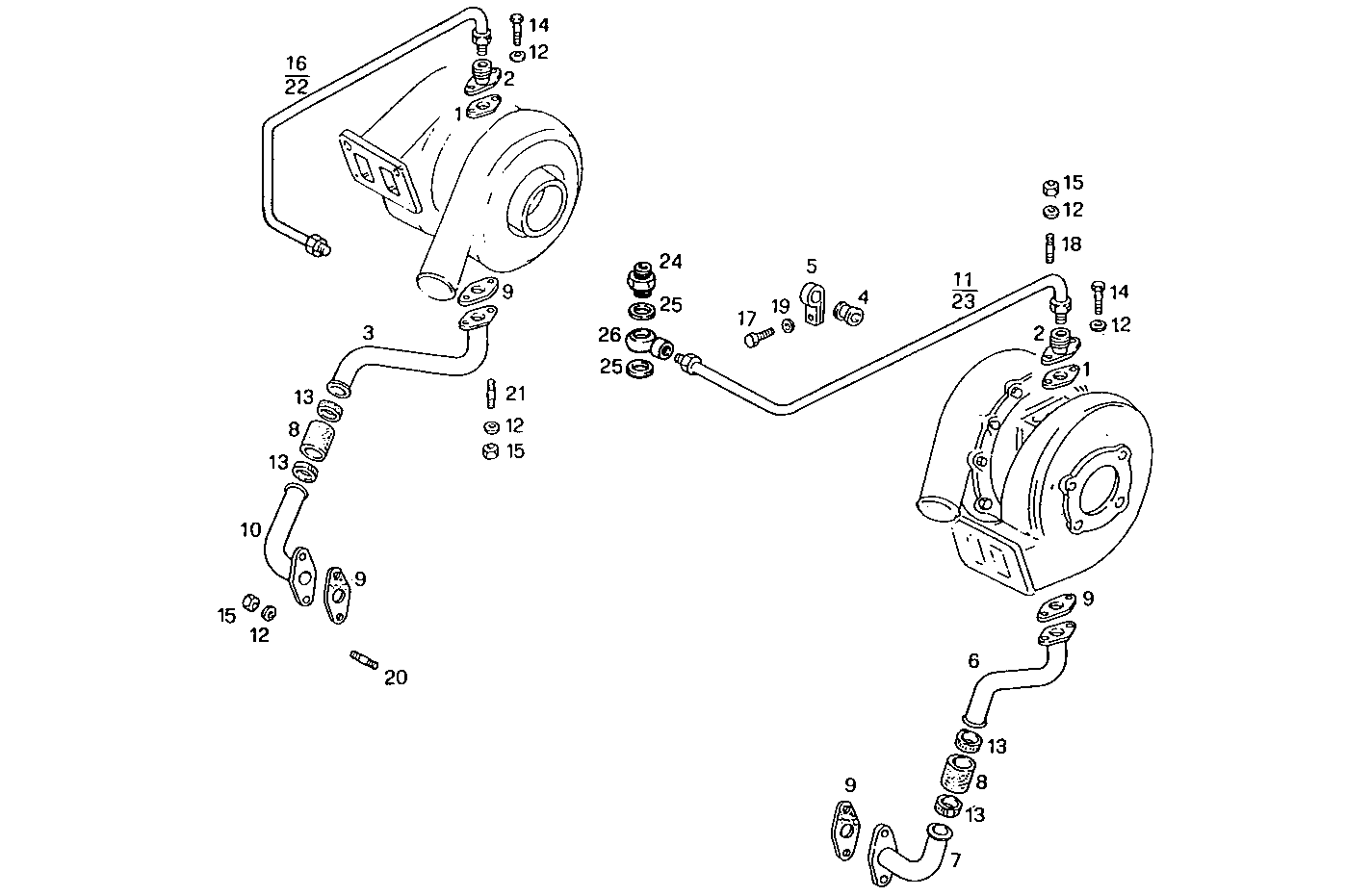

3010.162 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 98415922 FLAT ENGINE GASKET
2 4764795 THREADED UNION
3 98427651 OIL LINE RIGHT
4 4755964 RUBBER PAD
5 4755963 FASTENING BRACKET
6 98427652 OIL LINE LEFT
7 98427654 OIL LINE LEFT
8 98420478 RUBBER SLEEVE
9 98415923 FLAT ENGINE GASKET
10 98427653 OIL LINE RIGHT
11 98436050 OIL LINE [up to 307842]
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 17764691 CLIP Ø25/40 MM
14 16605524 HEXAGON BOLT M8X20 MM
15 17037931 HEXAGON NUT M8X1,25
16 98436049 OIL LINE [up to 307842]
18 16746924 STUD M8X35 MM
20 13544521 STUD M8X16X75 MM
21 16729224 STUD M8X16 MM
22 99465735 OIL LINE [from 307843]
23 99465736 OIL LINE [from 307843]
24 4821116 THREADED UNION
25 98474311 SEAL GASKET Ø18X26 MM
26 4821115 SWIVEL COUPLING
