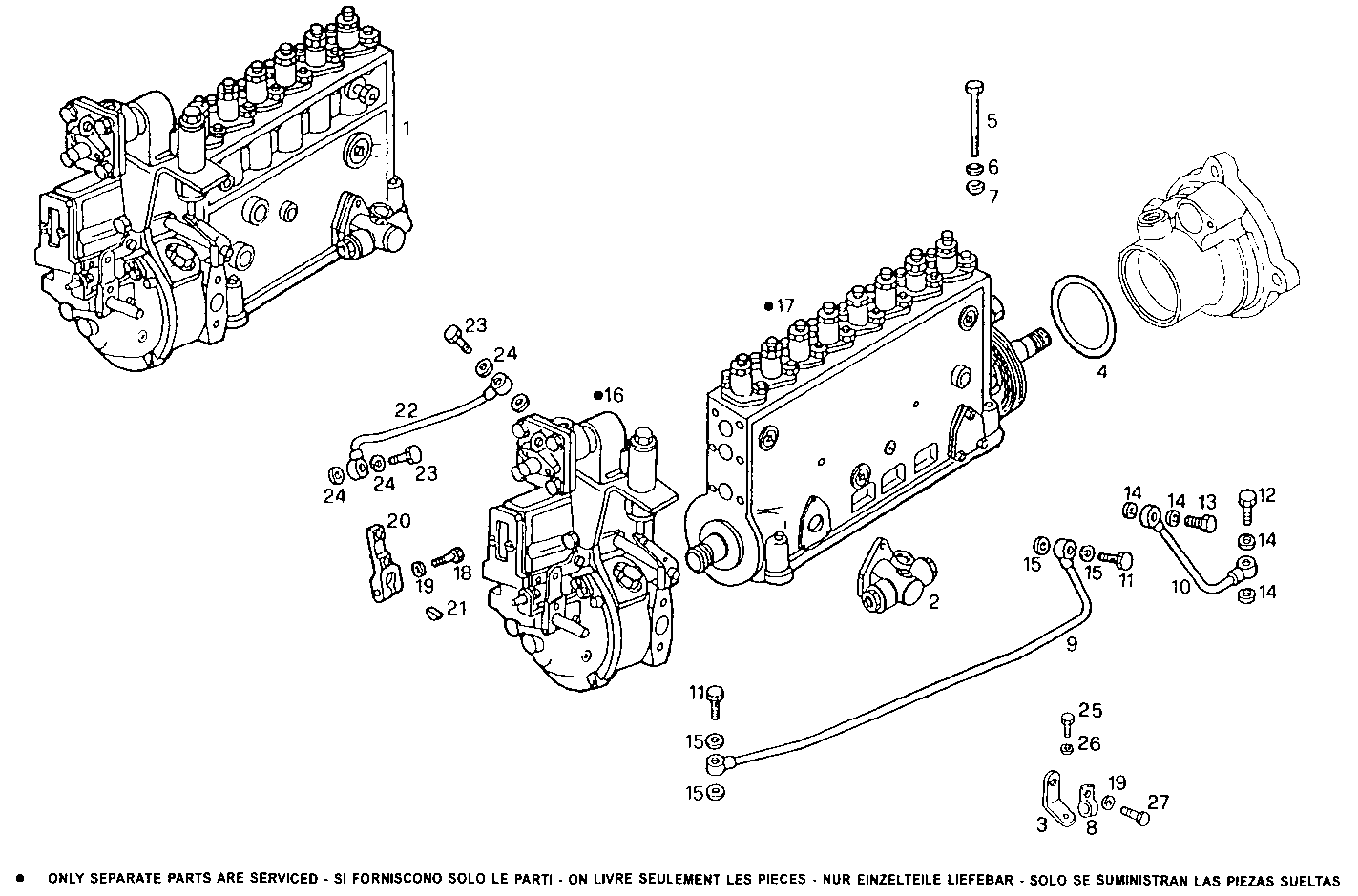

| Item |
Part number |
Description |
|
1 |
98412666 |
INLINE INJECT.PUMP ASSY |
|
2 |
93160510 |
FUEL PUMP OPT. |
|
3 |
99453158 |
FASTENING BRACKET BUNDY |
|
4 |
61317062 |
O-RING |
|
5 |
15971330 |
HEXAGON BOLT M10X75 MM |
|
6 |
17090274 |
WASHER Ø10X20 MM |
|
7 |
756671 |
WASHER |
|
8 |
17310501 |
FASTENING BRACKET Ø10 MM |
|
9 |
98420456 |
OIL LINE |
|
10 |
98420453 |
OIL LINE |
|
11 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
12 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
13 |
4864079 |
SCREW CONNECTOR M10X1 |
|
14 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
|
15 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
18 |
10902221 |
HEXAGON BOLT M6X16 MM |
|
19 |
17088474 |
WASHER Ø6X12 MM |
|
20 |
93190091 |
ARM ASSY |
|
21 |
10205720 |
KEY 3X5 MM |
|
22 |
98485351 |
PIPE LDA |
|
23 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
24 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
25 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
26 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
27 |
16603424 |
SCREW M6X10 |
