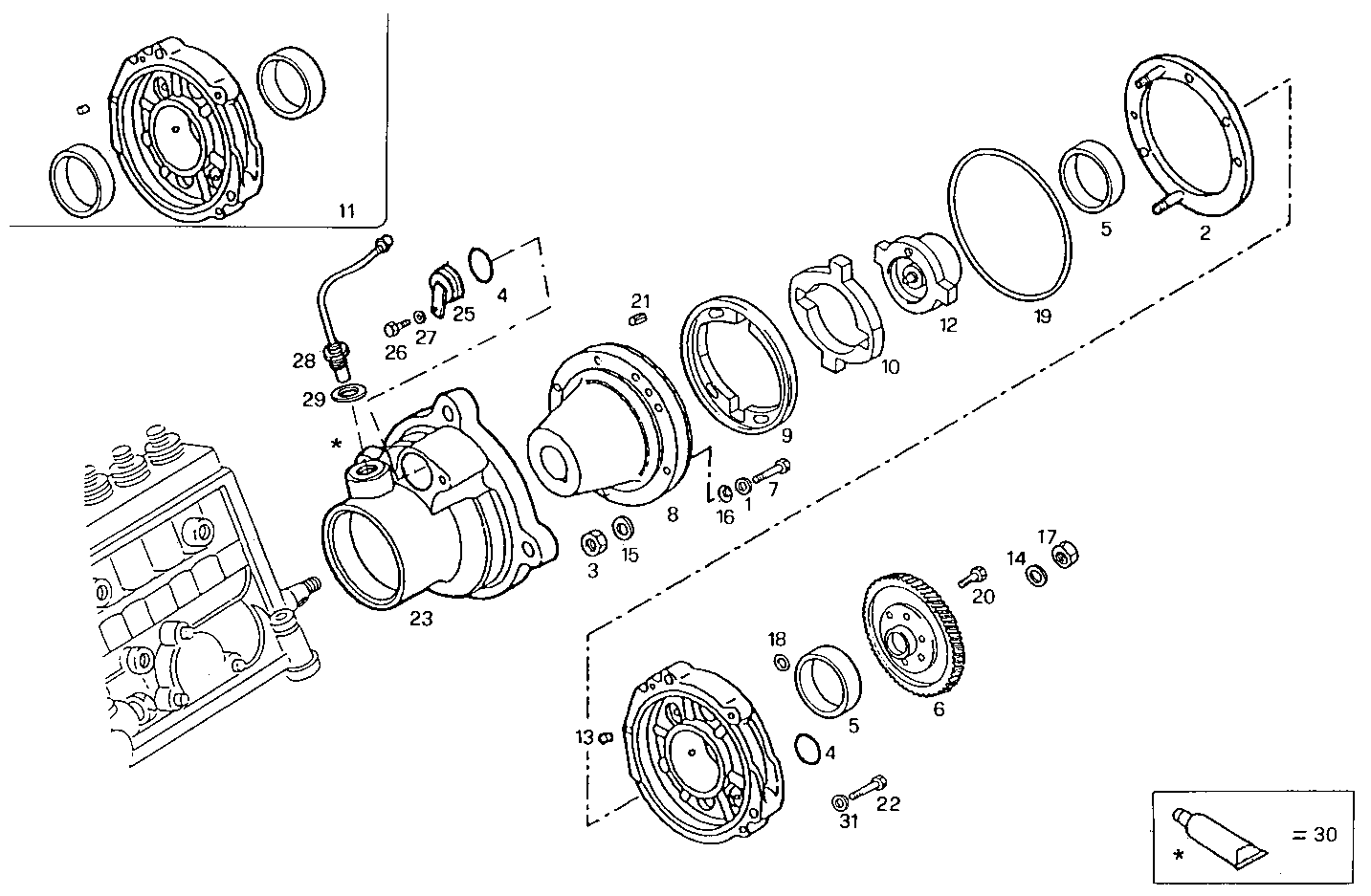

| Item |
Part number |
Description |
|
1 |
17094914 |
WASHER 8x16 |
|
2 |
4836618 |
RING |
|
3 |
17037931 |
HEXAGON NUT M8X1,25 |
|
4 |
17289281 |
O-RING Ø34,5 MM SP=3,53 MM |
|
5 |
4686615 |
BUSH |
|
6 |
4859822 |
INJ.PUMP DRIV.GEA |
|
7 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
8 |
98424120 |
INJECT.PUMP SLEEVE |
|
9 |
4797214 |
FLANGE |
|
10 |
4797215 |
FLANGE |
|
11 |
98424000 |
SUPPORT ASSY |
|
12 |
4809614 |
INJECT.PUMP SPIND |
|
13 |
10269150 |
LOCK PLUG M6X1 |
|
14 |
17096004 |
WASHER Ø20X37 MM |
|
15 |
17089574 |
WASHER Ø8X16 MM |
|
16 |
17089874 |
WASHER Ø8X22 MM |
|
17 |
16980931 |
HEXAGON NUT M20X1,5 |
|
18 |
17281481 |
O-RING Ø10,7 MM SP=2,6 MM |
|
19 |
17293481 |
O-RING Ø177,4 MM SP=3,5 MM |
|
20 |
14348934 |
HEXAGON BOLT M10X1,25X25 MM |
|
21 |
14604370 |
DOWEL PIN Ø6 MM |
|
22 |
16043321 |
HEXAGON BOLT M8X18 MM |
|
23 |
99436321 |
HOUSING |
|
25 |
4718740 |
PLUG |
|
26 |
16043324 |
HEXAGON BOLT M8X18 MM |
|
28 |
4861291 |
TRANSMITTER |
|
29 |
4864032 |
FLAT ENGINE GASKET |
|
30 |
1905683 |
ADHESIVE/STICKER LOCTITE |
