8280SRC21.10

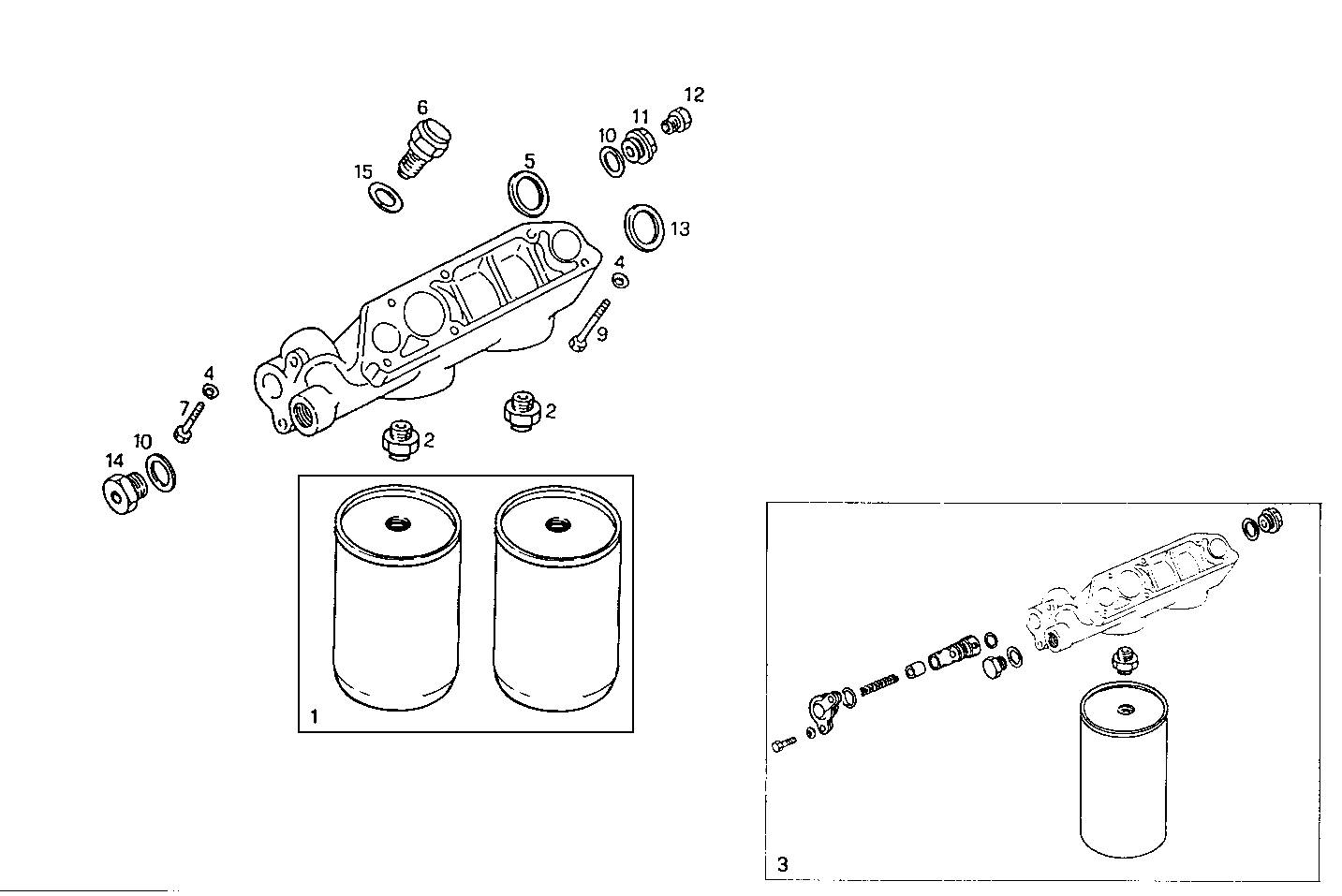

3020.059 OIL FILTERS
| Item | Part number | Description |
|---|---|---|
| 1 | 1903630 | OIL FILTER CARTRIDGE KIT |
| 2 | 4741301 | THREADED UNION ASSY |
| 3 | 98437574 | OIL FILTER SUPPORT ASSY |
| 4 | 17089874 | WASHER Ø8X22 MM |
| 5 | 17284581 | O-RING Ø59,99 x 2,62 MM |
| 6 | 4859914 | PRESSURE SWITCH BORLETTI |
| 7 | 16606324 | HEXAGON BOLT M8X60 MM |
| 9 | 16606824 | HEXAGON BOLT M8X100 MM |
| 10 | 10296260 | SEAL GASKET Ø28X36 MM SP=1,5 MM |
| 11 | 4627301 | PLUG M28X1,5/M14X1,5 |
| 12 | 4858771 | TRANSMITTER |
| 13 | 10265160 | SEAL GASKET Ø35,3 MM |
| 14 | 16993511 | LOCK PLUG M28X1,5 |
| 15 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
