8280SRC21.10

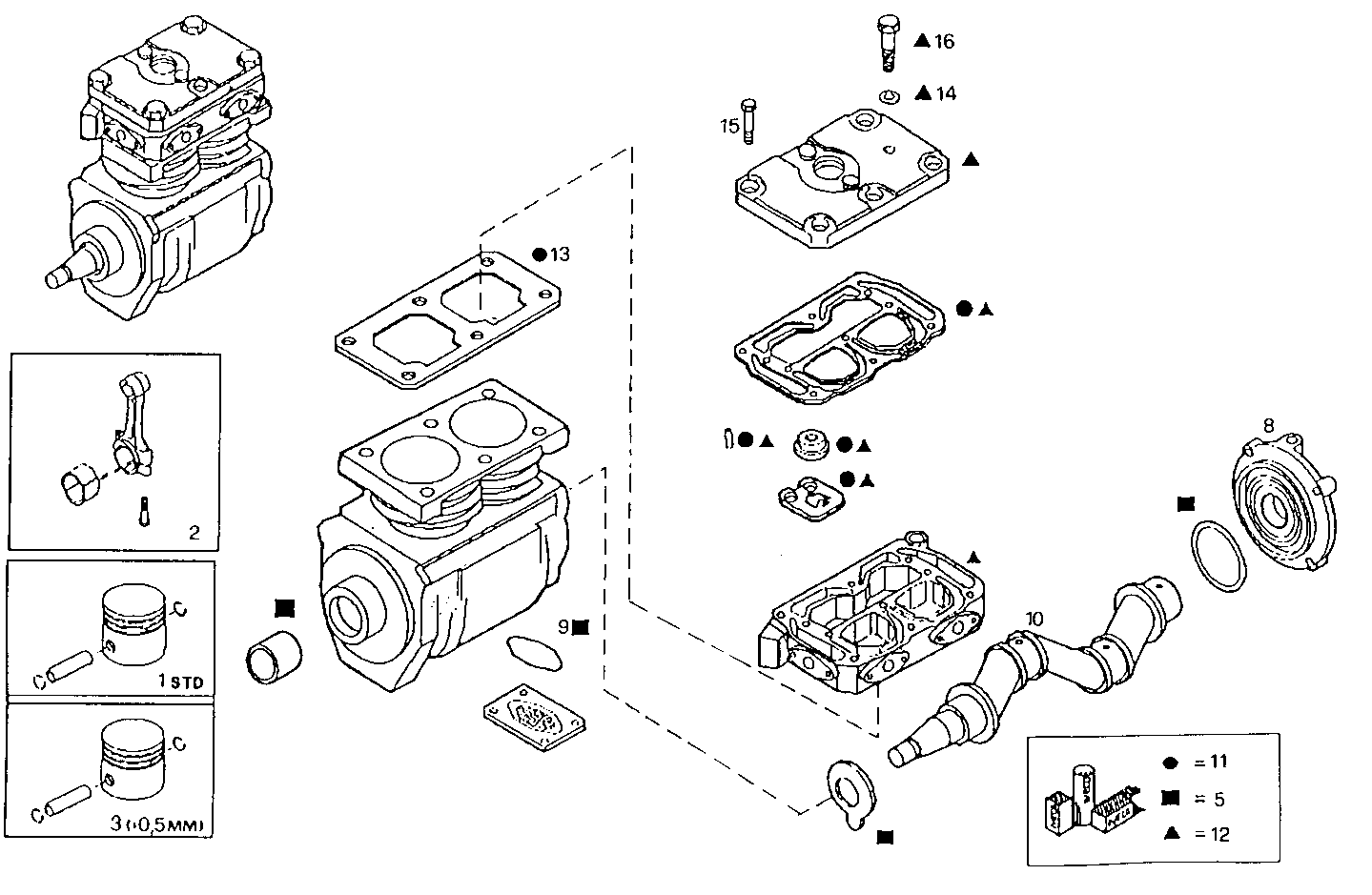

T1807001 AIR COMPRESSOR - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 8121570 | COMPRESSOR PISTON ASSY |
| 2 | 93160592 | COMPRESS.CONN.ROD ASSY |
| 3 | 93160593 | COMPRESSOR PISTON ASSY +0,5MM |
| 5 | 93161433 | KIT-AIR COMPRESSOR |
| 8 | 93190619 | FLANGE |
| 9 | 93191088 | O-RING |
| 10 | 93191089 | COMPR.CRANKSHAFT |
| 11 | 93161427 | KIT-AIR COMPRESSOR |
| 12 | 93161534 | KIT-AIR COMPRESSOR |
| 13 | 93192158 | GASKET |
| 14 | 9982640 | WASHER |
| 15 | 16592424 | HEXAGON BOLT M8X65 MM |
| 16 | 16606124 | HEXAGON BOLT M8X50 MM |
