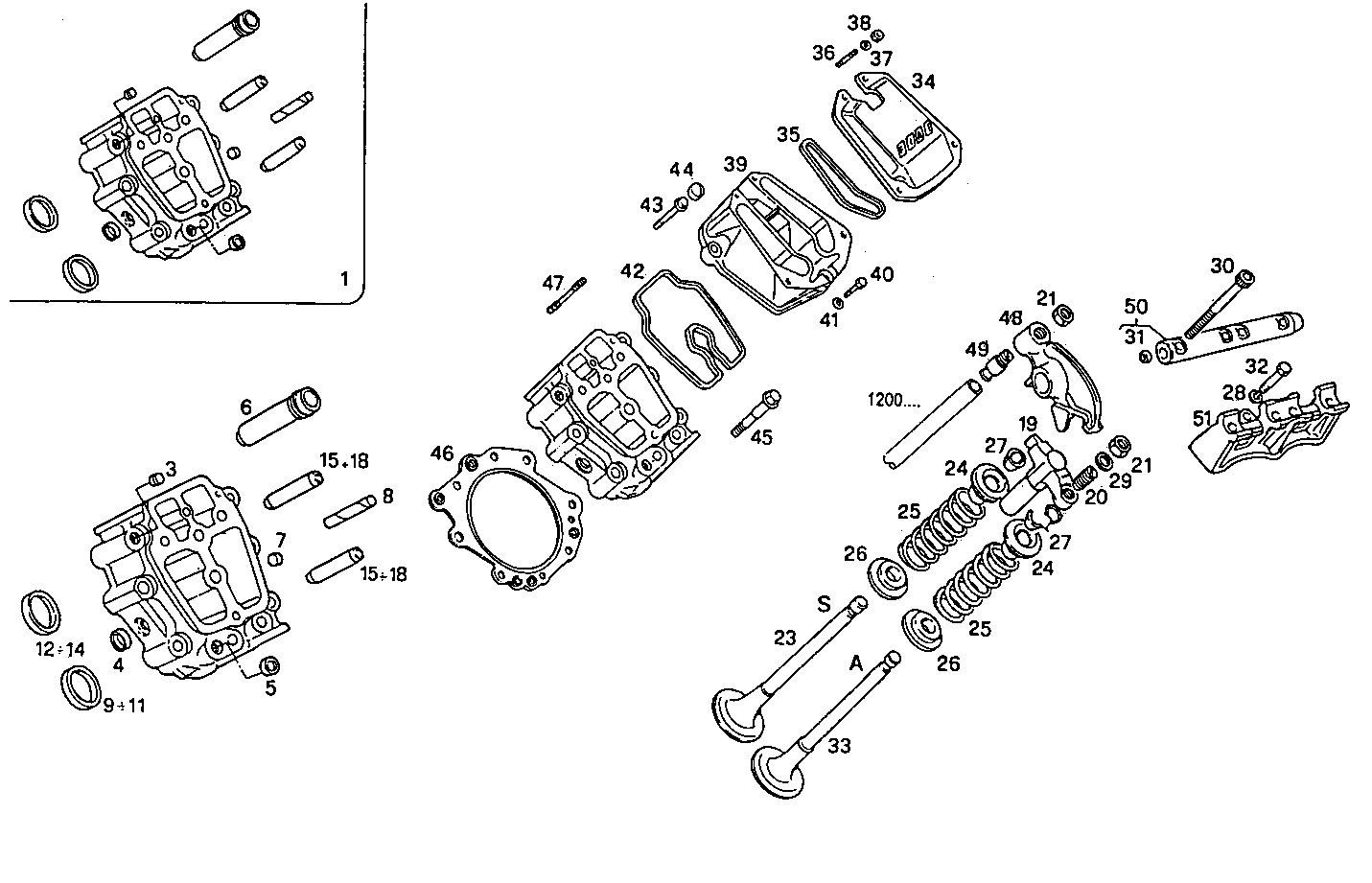

| Item |
Part number |
Description |
|
1 |
98481945 |
CYLINDER HEAD ASSY [from 114542] |
|
3 |
14326101 |
THREADED PLUG M8X1,25 |
|
4 |
14282370 |
LOCK PLUG Ø25 MM |
|
5 |
14282170 |
LOCK PLUG Ø20 MM |
|
6 |
4680583 |
NOZZLE HOLDER SEAT |
|
7 |
14281970 |
LOCK PLUG Ø12 MM |
|
8 |
4680389 |
GUIDE ROD |
|
9 |
4672517 |
VALVE SEAT STD. |
|
10 |
4694454 |
VALVE SEAT +0.20 |
|
11 |
4694455 |
VALVE SEAT +0.05 |
|
12 |
98481929 |
VALVE SEAT STD. |
|
13 |
98481931 |
VALVE SEAT +0.51 |
|
14 |
98481930 |
VALVE SEAT +0.20 |
|
15 |
4672515 |
VALVE GUIDE |
|
16 |
4694449 |
VALVE GUIDE +0.04 |
|
17 |
4694450 |
VALVE GUIDE +0,2 |
|
18 |
4694451 |
VALVE GUIDE +0.24 |
|
19 |
4717389 |
SUPPORT ASSY |
|
20 |
98470657 |
ROCKER ARM SCREW |
|
21 |
98470656 |
ADJUSTING NUT |
|
23 |
1904658 |
EXHAUST VALVE |
|
24 |
4675983 |
SPRING CAP TOP |
|
25 |
4752607 |
ENGINE VALV.SPRING |
|
26 |
98458427 |
SPRING CAP BOTTOM |
|
27 |
14196370 |
VALVE CONE Ø9,82 MM |
|
28 |
17089574 |
WASHER Ø8X16 MM |
|
29 |
13397376 |
CIRCLIP Ø8 MM |
|
30 |
14308430 |
CYLIND-HEAD SCREW M10X80 MM |
|
31 |
14328101 |
LOCK PLUG Ø8 MM |
|
32 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
33 |
4797185 |
INLET VALVE |
|
34 |
98481107 |
COVER |
|
35 |
98481106 |
HEAD COVER GASKET |
|
36 |
13543321 |
STUD M8X16X20 MM |
|
37 |
13550301 |
WASHER Ø8,15 MM |
|
38 |
17037931 |
HEXAGON NUT M8X1,25 |
|
39 |
98481108 |
CYL. HEAD COVER |
|
40 |
16606224 |
HEXAGON BOLT M8X55 MM |
|
41 |
12647101 |
WASHER Ø8X20 MM |
|
42 |
98481105 |
HEAD COVER GASKET |
|
43 |
4696012 |
HEXAGON BOLT |
|
44 |
4696013 |
CAP |
|
45 |
4802718 |
CYL.HEAD STUD |
|
46 |
1905795 |
CYL.HEAD GASKET SP=1,2 MM |
|
47 |
4700339 |
STUD |
|
48 |
4727425 |
ROCKER ARM |
|
49 |
98470655 |
ROCKER ARM SCREW |
|
50 |
4705317 |
ROCKER SHAFT ASSY |
|
51 |
4710783 |
ROCKER BRACKET |
