8281i03.00

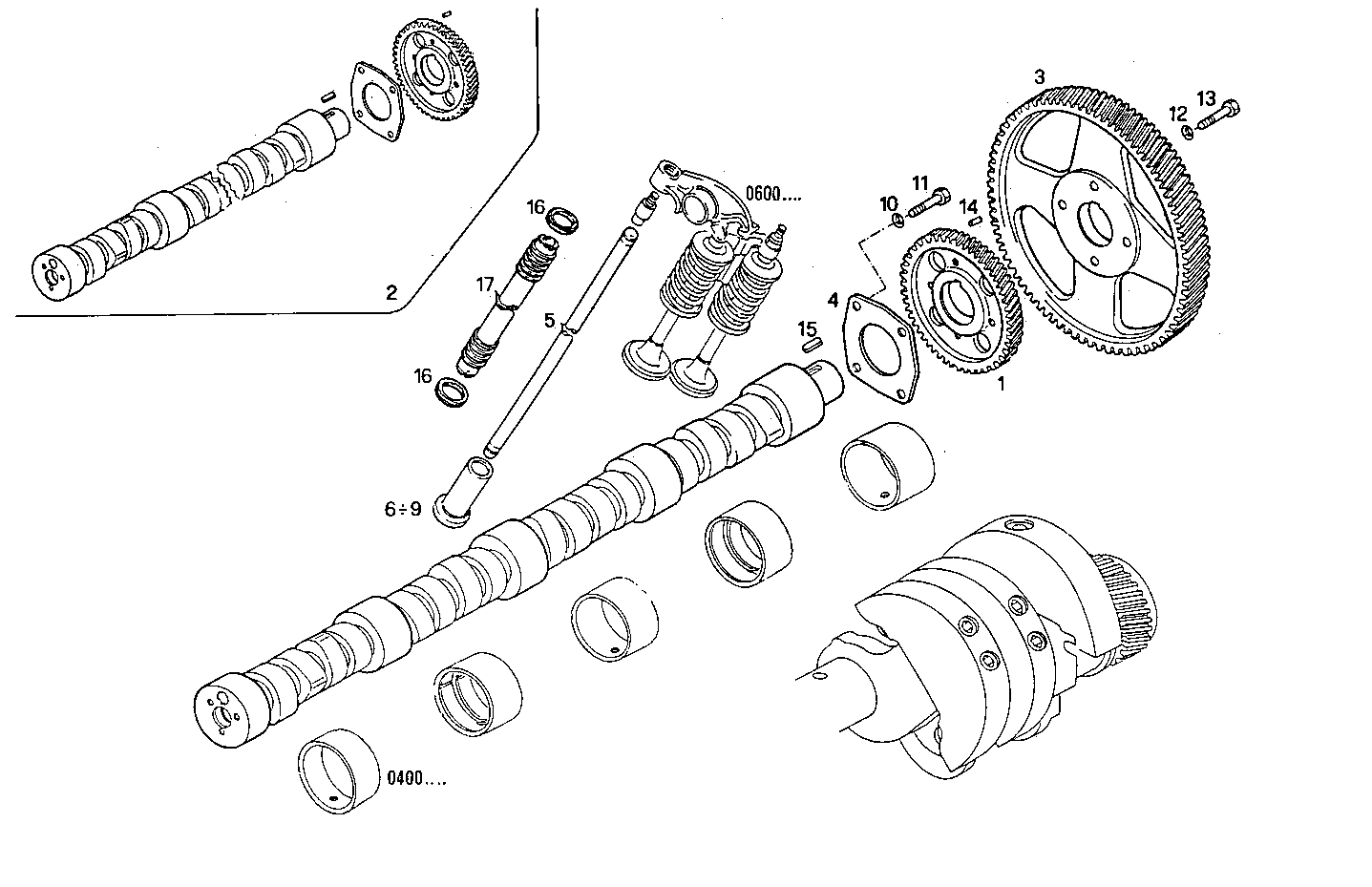

1250.041 TIMING PARTS
| Item | Part number | Description |
|---|---|---|
| 1 | 4744441 | TIMING INTERM.GEA |
| 2 | 99484838 | CAMSHAFT ASSY |
| 3 | 4744443 | TIMING DRIVE GEAR |
| 4 | 4684267 | PLATE |
| 5 | 98473330 | PUSHROD SAPES |
| 6 | 99449378 | VALVE TAPPET +0,0 MM |
| 7 | 99449379 | TAPPET +0,1 MM |
| 8 | 99449380 | TAPPET +0,2 MM |
| 9 | 99449381 | TAPPET +0,3 MM |
| 10 | 17089574 | WASHER Ø8X16 MM |
| 11 | 16605734 | HEXAGON BOLT M8X30 MM |
| 12 | 17090274 | WASHER Ø10X20 MM |
| 13 | 11306921 | SCREW M10X1,25X30 |
| 14 | 10839510 | DOWEL PIN |
| 15 | 10553920 | KEY 8X5 MM |
| 16 | 4672177 | WASHER |
| 17 | 4672175 | LINER |
