8281i03.00

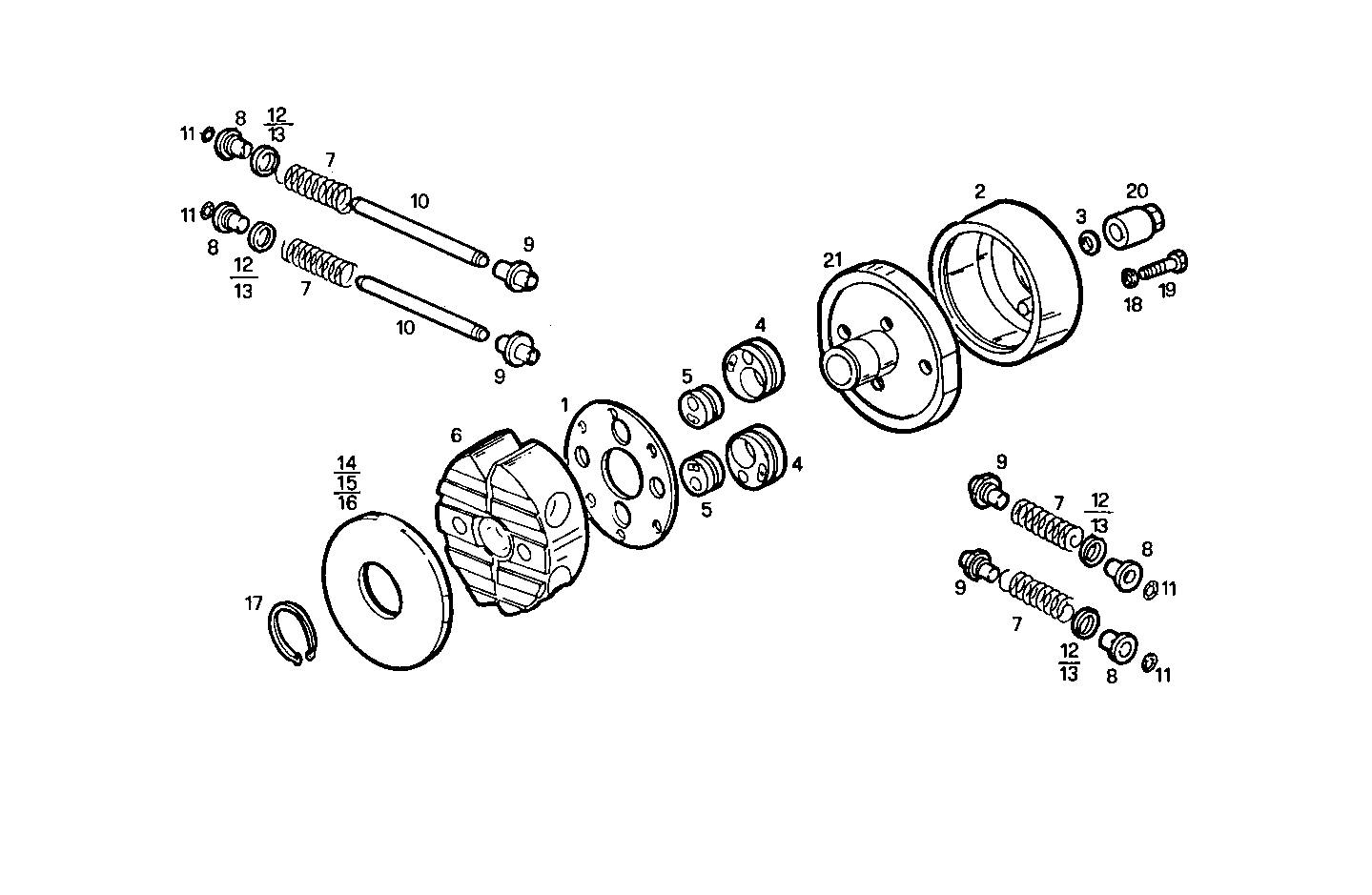

1480.003 ADVANCE VARIATOR (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 42489263 | WASHER |
| 2 | 42489270 | COVER |
| 3 | 42489264 | WASHER |
| 4 | 42489279 | ECCENTRIC |
| 5 | 42489278 | BALANCING WEIGHT |
| 6 | 42489267 | INJ.PUMP VARIAT.WEIGHT |
| 7 | 42489269 | SPRING |
| 8 | 42489266 | BUSH |
| 9 | 42489265 | BUSH |
| 10 | 42489268 | PIN |
| 11 | 42489277 | CIRCLIP |
| 12 | 42489274 | SHIM 0,50 MM |
| 13 | 42489275 | SHIM 1,00 MM |
| 14 | 42489259 | SHIM 2,00 MM |
| 15 | 42489260 | SHIM 2,10 MM |
| 16 | 42489261 | SHIM 2,20 MM |
| 17 | 42489262 | CIRCLIP |
| 18 | 9929741 | WASHER |
| 19 | 42489258 | SCREW |
| 20 | 42489276 | NUT |
