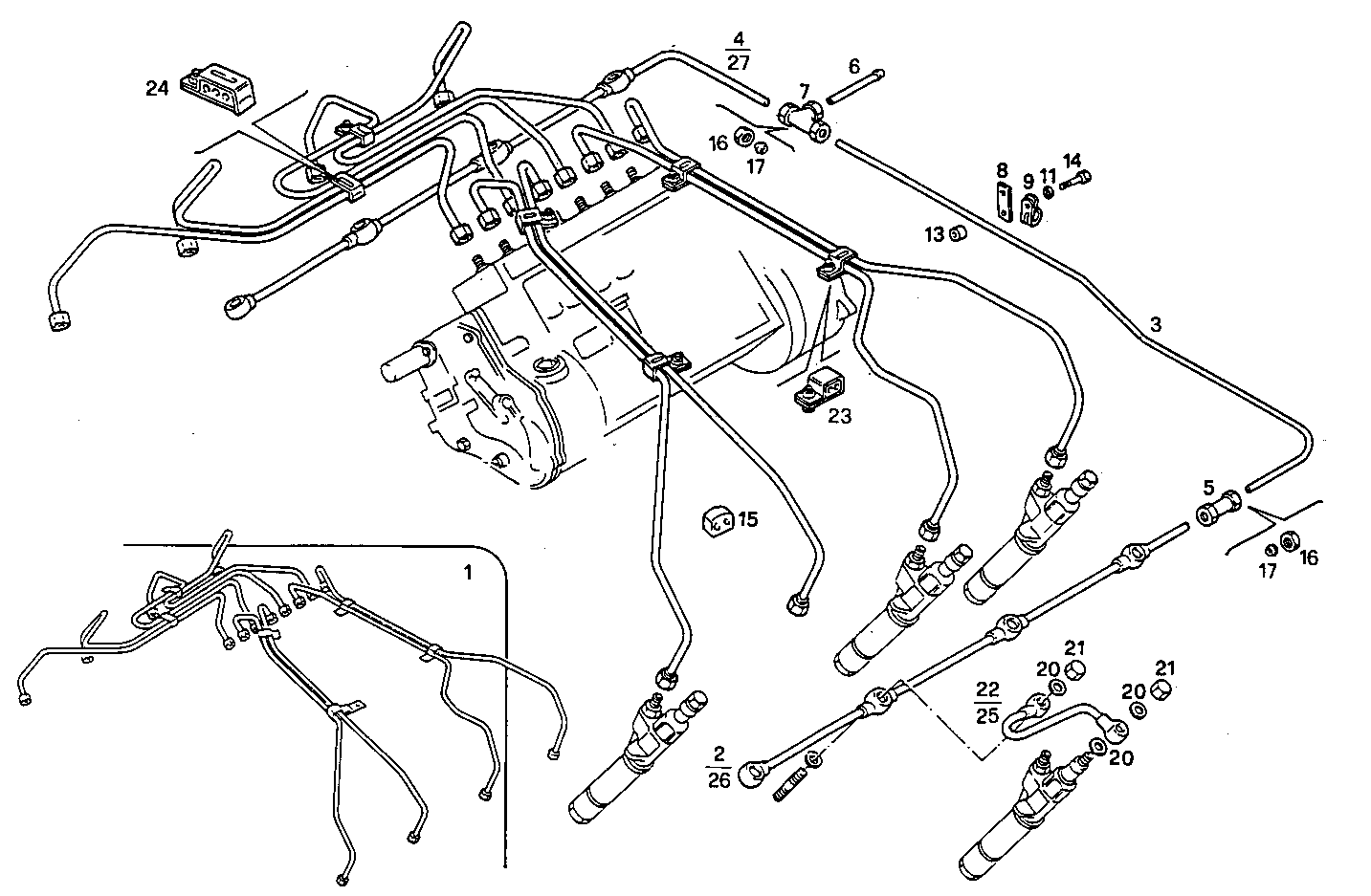

Item |
Part number |
Description |
1 |
4807620 |
INJECTION LINE SET ASSY ARMCO |
2 |
4706176 |
FUEL LINE [up to ...] |
3 |
4706181 |
INJECTION LINE |
4 |
4706179 |
INJECTION LINE [up to ...] |
5 |
4693018 |
THREADED UNION |
6 |
4706182 |
INJECTION LINE |
7 |
4677909 |
T-COUPLING |
8 |
4840311 |
RETAINER |
9 |
4656139 |
FASTENING BRACKET |
11 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
13 |
13605811 |
SPACER SP=1,5 MM |
14 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
15 |
4696015 |
RUBBER PAD |
16 |
4677910 |
NUT |
17 |
4677911 |
WASHER |
20 |
98474303 |
WASHER Ø8X14 MM SP=2,3 MM |
21 |
11902017 |
LOCK PLUG M8 |
22 |
4706186 |
INJECTION LINE [up to ...] |
23 |
4806611 |
FASTENING BRACKET |
24 |
4806612 |
FASTENING BRACKET |
25 |
98488844 |
INJECTION LINE [from ...] |
26 |
98488847 |
INJECTION LINE LEFT [from ...] |
27 |
98488846 |
INJECTION LINE RIGHT [from ...] |
