8281i03.00

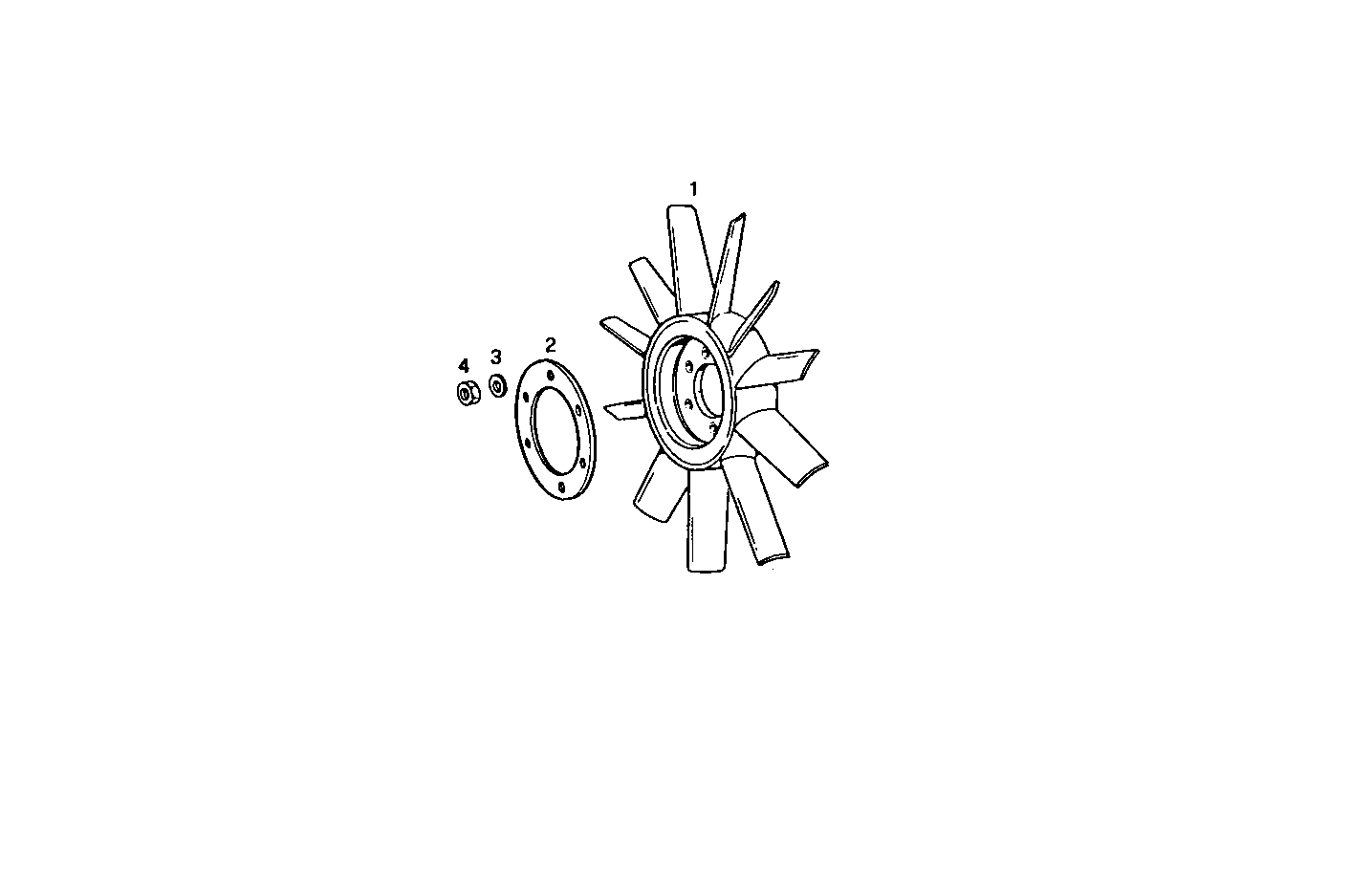

A08000019 PULLER FAN - on engine axis
Item | Part number | Description |
---|---|---|
1 | 4705583 | FAN Ø620 MM |
2 | 4629908 | SUPPORT RING |
3 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
4 | 12164711 | HEXAGON NUT M10X1,25 |
