8281i03.00

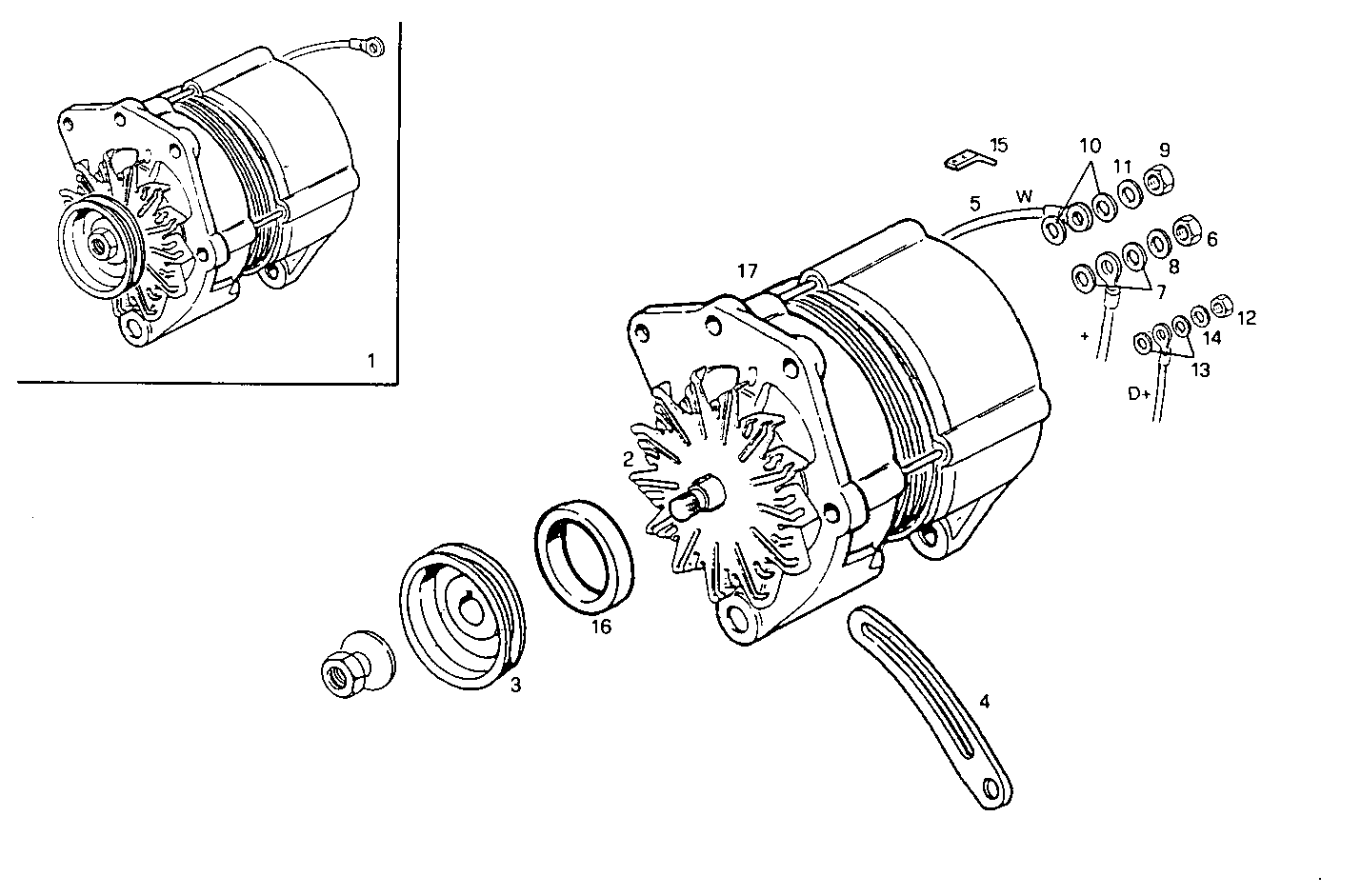

A14120011 SELF-REGULATED ALTERNATOR - 24V 55A (W)
Item |
Part number |
Description |
1 |
8019558 |
ALTERNATOR ASSY |
2 |
4757196 |
GENERATOR FAN BOSCH |
3 |
4808604 |
PULLEY |
4 |
4799775 |
BRACE/STRUT |
5 |
8019531 |
WIRE/CABLE W |
6 |
17037931 |
HEXAGON NUT M8X1,25 |
7 |
17094914 |
WASHER 8x16 |
8 |
17494834 |
WASHER Ø8 MM |
9 |
17037721 |
NUT M5X0,8 |
10 |
17094504 |
WASHER Ø5,3X10 MM |
11 |
10615379 |
TOOTHED WASHER Ø5,3 MM |
12 |
17037621 |
HEXAGON NUT M4 |
13 |
17094204 |
WASHER Ø4X8X0,8 MM |
14 |
10615279 |
WASHER Ø4 MM |
15 |
12277944 |
CONNECTION D+ |
16 |
98454516 |
SPACING BAR |
17 |
98424450 |
ALTERNATOR ASSY BOSCH |
