8281i03.00

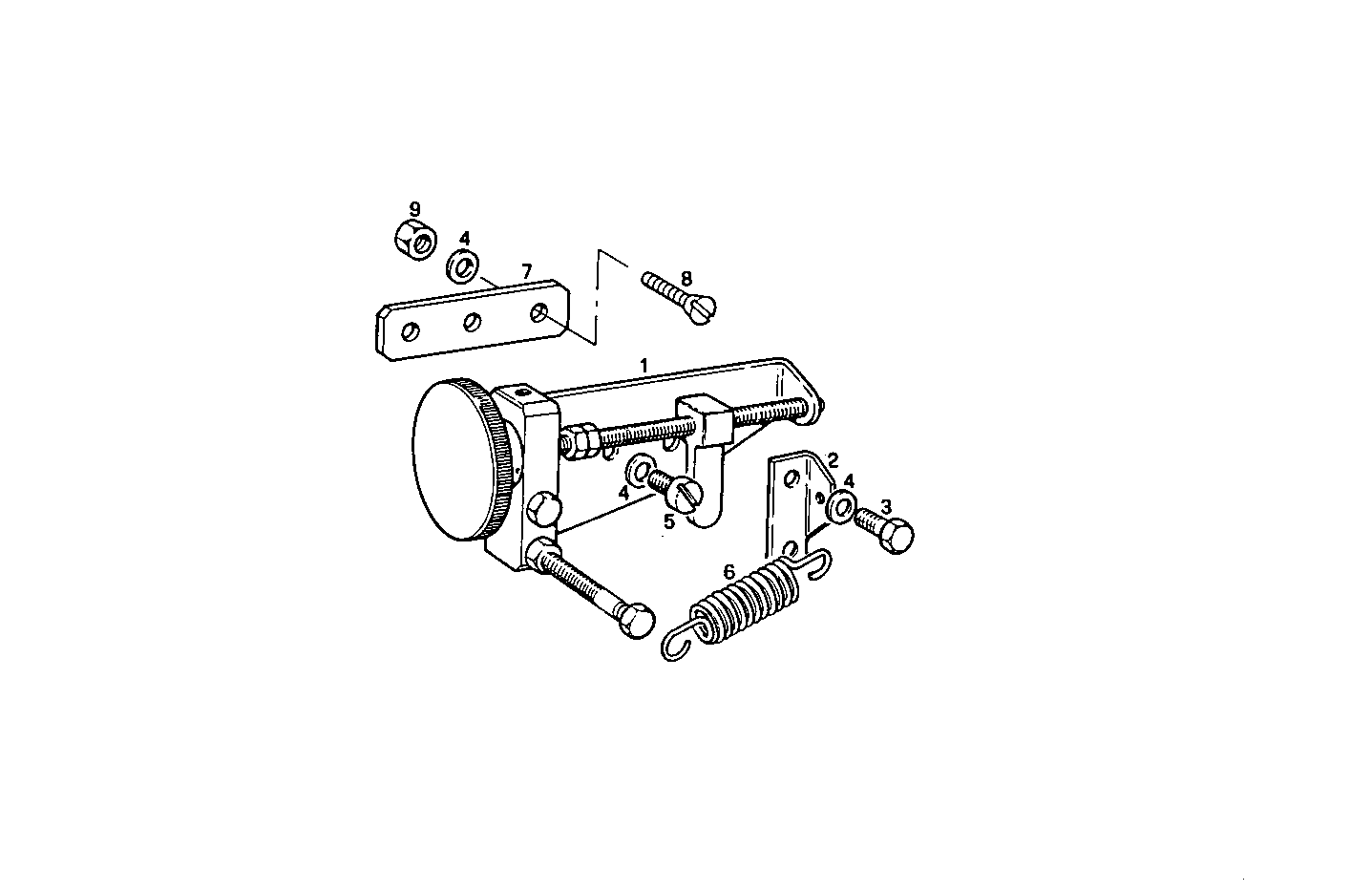

A24060007 PRECISION ADJUSTMENT ACCELERATOR - genset
| Item | Part number | Description |
|---|---|---|
| 1 | 8104878 | HAND ACCELERATOR ASSY |
| 2 | 8105825 | RETAINER |
| 3 | 10902121 | HEXAGON BOLT M6X14 MM |
| 4 | 17088474 | WASHER Ø6X12 MM |
| 5 | 10376711 | CYLIND-HEAD SCREW M6X16 MM (4.8) |
| 6 | 8104855 | SPRING |
| 7 | 8106842 | RETAINER |
| 8 | 10353411 | C'SUNK SCREW M6X12 MM |
| 9 | 15896211 | HEXAGON NUT M6 |
