8281I03.00A803

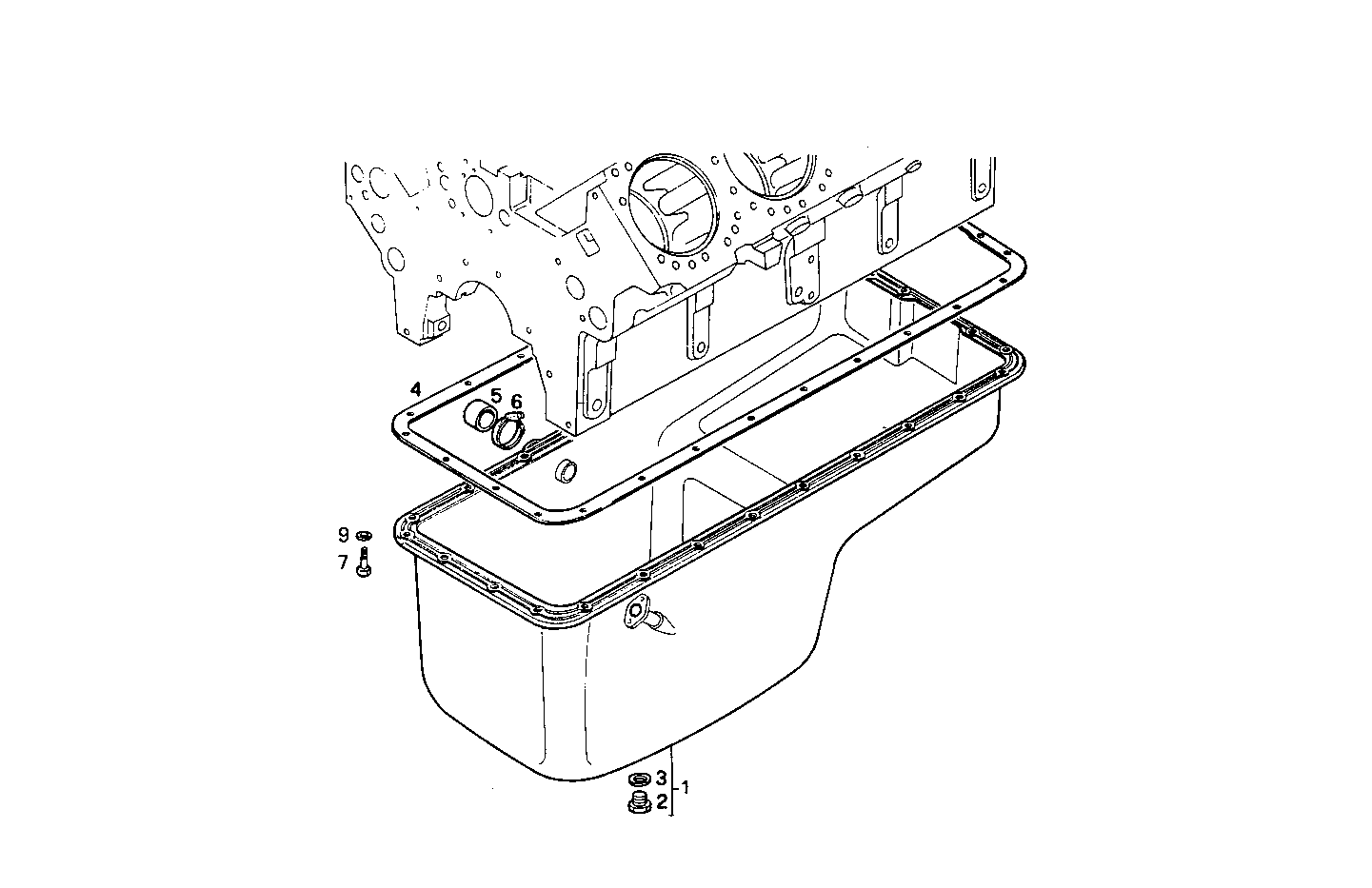

0420.040 OIL SUMP
Item | Part number | Description |
---|---|---|
1 | 4765159 | OIL SUMP ASSY |
2 | 10305111 | LOCK PLUG M22 |
3 | 10263460 | WASHER Ø22X28X1,5 MM |
4 | 99469051 | OIL SUMP GASKET |
5 | 4695740 | RUBBER SLEEVE |
6 | 17764792 | HOSE CLIP Ø32-50 MM |
7 | 10929824 | HEXAGON BOLT M10X1,25X25 MM |
9 | 17090174 | SPRING WASHER Ø10X20 MM |
