8281I03.00A803

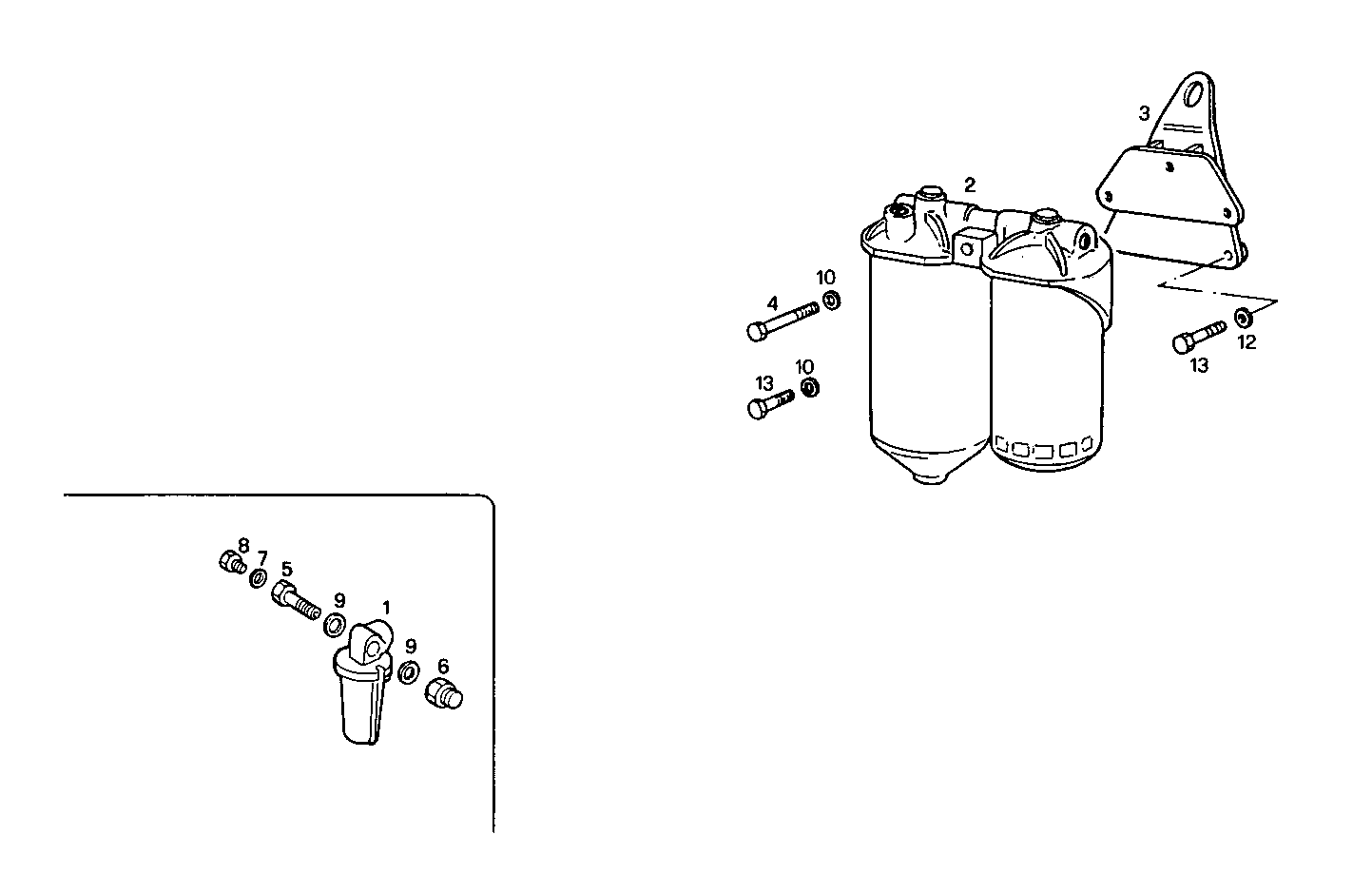

2000.030 FUEL FILTER
Item | Part number | Description |
---|---|---|
1 | 740314 | FUEL FILTER ASSY |
2 | 4690738 | FUEL FILTER ASSY |
3 | 4729852 | SUPPORT |
4 | 15972621 | HEXAGON BOLT M10X1,25X140 MM |
5 | 4721116 | SCREW CONNECTOR |
6 | 4752787 | PIPE SOCKET |
7 | 4858606 | GASKET Ø10X14X1 MM |
8 | 11903111 | LOCK PLUG M10X1,25 |
9 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
10 | 11198474 | SPRING WASHER Ø10X27 MM |
12 | 11190871 | WASHER Ø12X30X3,0 MM |
13 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
