8281I03.00A803

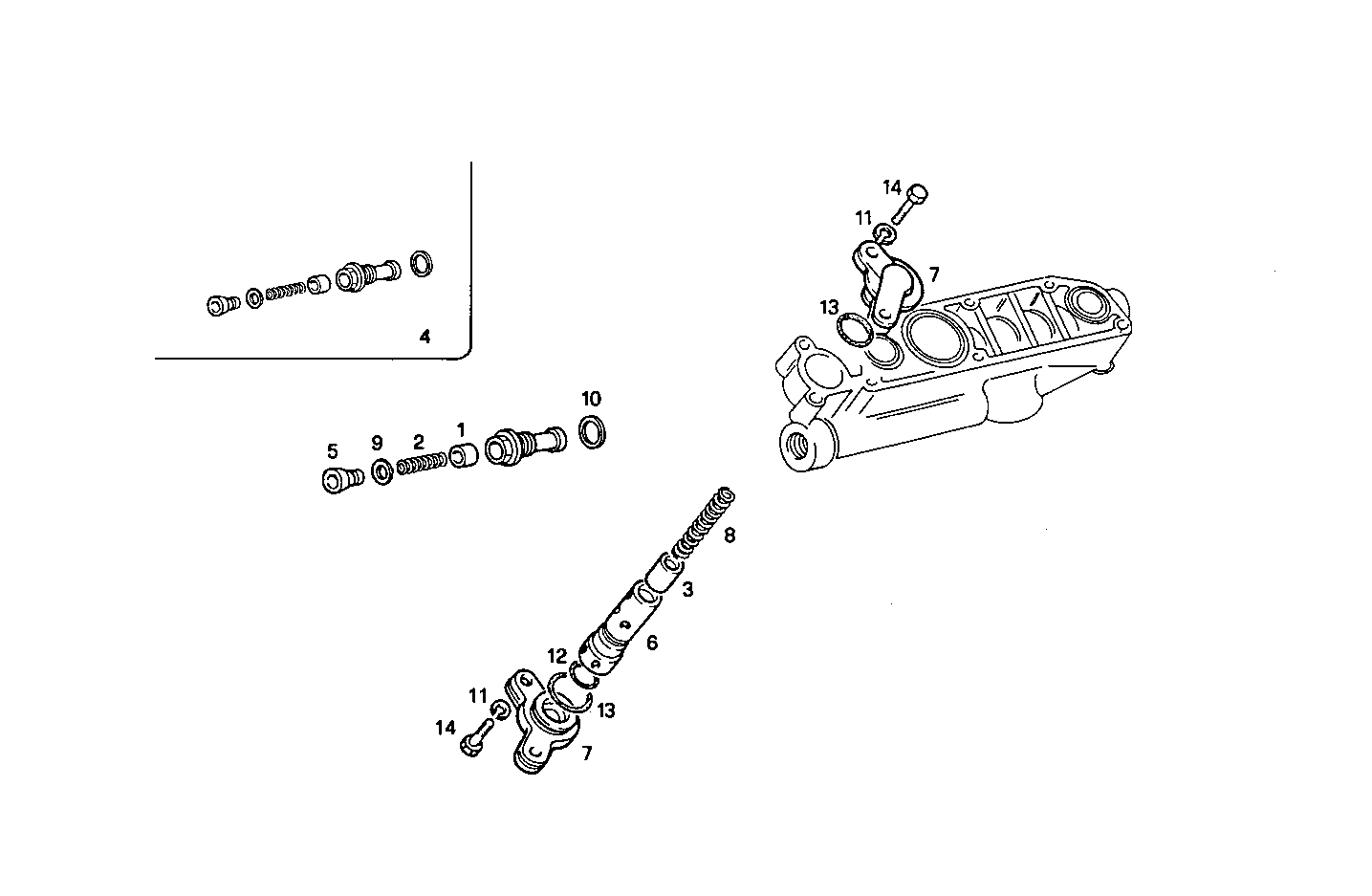

3030.017 OIL PRESSURE VALVE
Item | Part number | Description |
---|---|---|
1 | 564432 | OIL PUMP VALVE |
2 | 4750282 | SPRING |
3 | 4672842 | VALVE |
4 | 4752720 | BYPASS VALVE ASSY [up to 110430] |
5 | 4750297 | PLUG |
6 | 4676506 | VALVE HOUSING |
7 | 4676507 | COVER |
8 | 4677094 | SPRING |
9 | 10257460 | SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...] |
10 | 10265160 | SEAL GASKET Ø35,3 MM |
11 | 11198171 | SPRING WASHER Ø8,4 MM |
12 | 14457581 | O-RING Ø20,29 MM SP=2,62 MM |
13 | 14458081 | O-RING SP=2,62 MM |
14 | 16043624 | SCREW M8X25 |
