8281I03.00A803

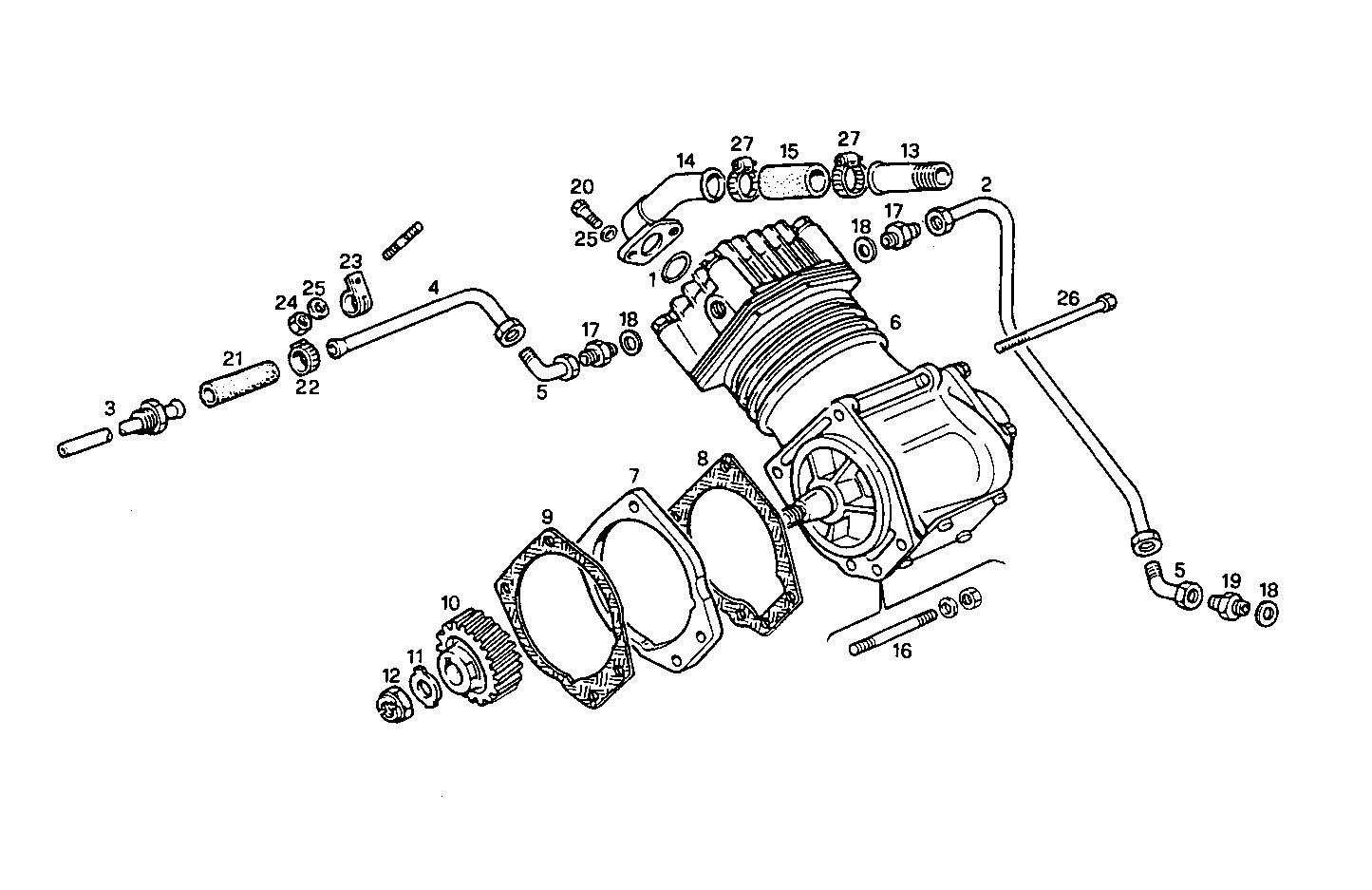

A18050003 AIR COMPRESSOR - 250cc MARELLI

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 619376 FLAT ENGINE GASKET
2 8007459 WATER PIPE
3 4685280 THREADED UNION
4 8007471 WATER PIPE
5 16512111 PIPE SOCKET
6 98421107 AIR COMPRESSOR ASSY
7 4672628 SPACING BAR
8 4864032 FLAT ENGINE GASKET
9 4715152 FLAT ENGINE GASKET
10 4688638 COMP. DRIVE GEAR
11 4709364 LOCKING PLATE
12 4709365 HEXAGON NUT
13 4709332 THREADED UNION
14 4722195 FLANGED SOCKET
15 4722197 RUBBER SLEEVE
16 13546721 STUD M10X1,25X40
17 4802309 PIPE SOCKET
18 10257060 SEAL GASKET Ø16X22 MM SP=1,5 MM
19 4741602 THREADED UNION LEFT
20 16043521 SCREW M8X22
21 10141486 RUBBER SLEEVE Ø15 MM
22 12173790 CLIP Ø18-28 MM
23 10450490 PIPE CLIP Ø16 MM
24 17037931 HEXAGON NUT M8X1,25
25 11193871 WASHER Ø8X16X1,4 MM
26 15969921 SCREW
