8281I03.00A803

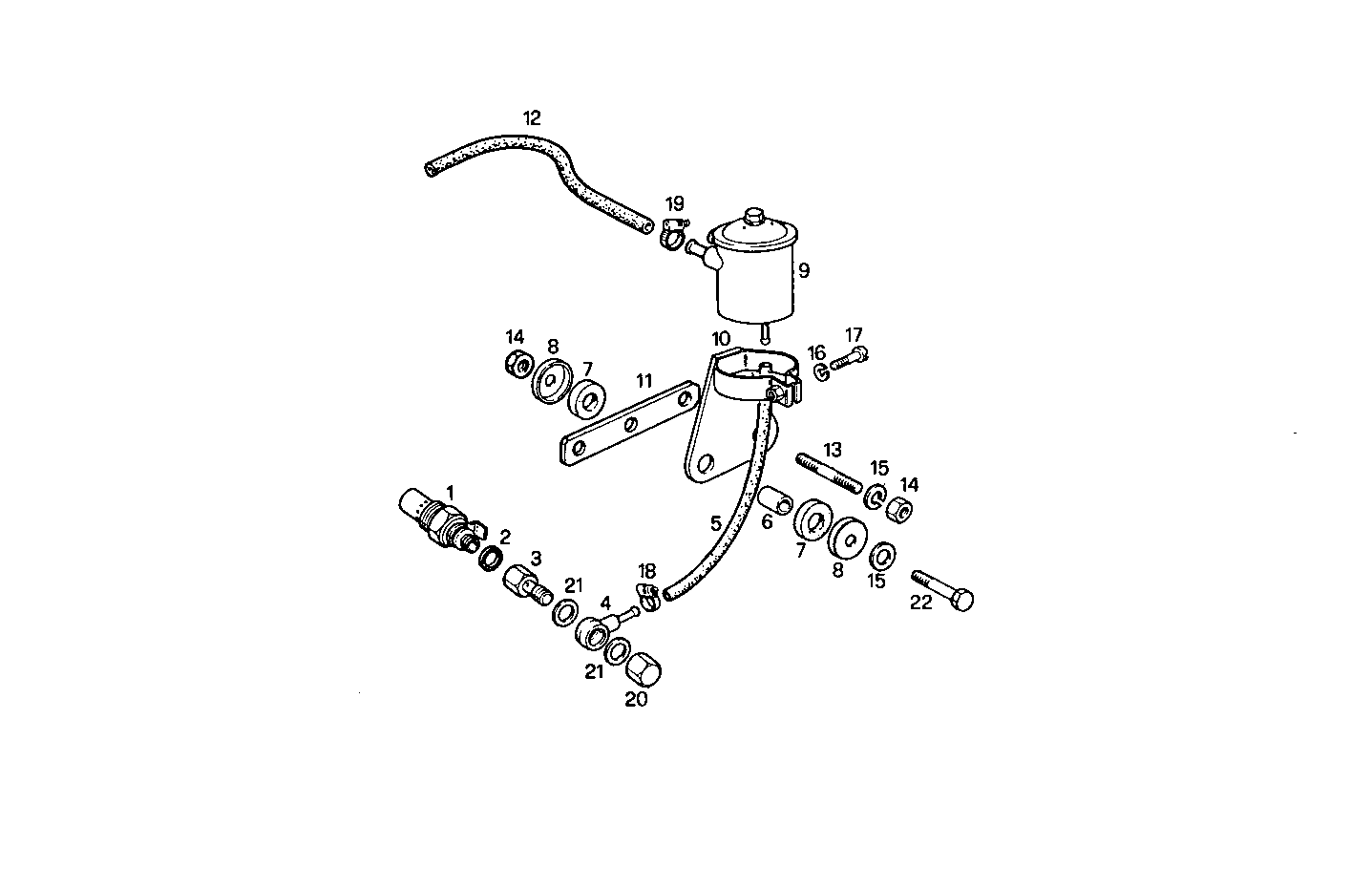

A20010009 THERMOSTARTER - 24V (till -15°C)
| Item | Part number | Description |
|---|---|---|
| 1 | 4221168 | THERMO-STARTER 24V |
| 2 | 4557649 | WASHER |
| 3 | 4551101 | SCREW CONNECTOR |
| 4 | 4551099 | SWIVEL COUPLING |
| 5 | 4636859 | FUEL LINE |
| 6 | 4617262 | SPACING BAR |
| 7 | 4023905 | DOWEL |
| 8 | 4023904 | CAP |
| 9 | 4613792 | TANK FOR PREHEATER |
| 10 | 4617260 | SUPPORT |
| 11 | 8101955 | RETAINER |
| 12 | 8101956 | FUEL LINE |
| 13 | 13543721 | STUD M8X16X35 MM |
| 14 | 17037931 | HEXAGON NUT M8X1,25 |
| 15 | 11193879 | SPRING WASHER Ø8X16 MM |
| 16 | 10389911 | CYLIND-HEAD SCREW M5X25 MM |
| 17 | 10571470 | SPRING WASHER Ø5,3 MM |
| 18 | 12179090 | CLIP Ø7-11 MM |
| 19 | 12179490 | CLIP Ø9-16 MM |
| 20 | 11902017 | LOCK PLUG M8 |
| 21 | 14330260 | SEAL GASKET Ø8X12 MM |
| 22 | 16625734 | HEXAGON BOLT M8X35 |
