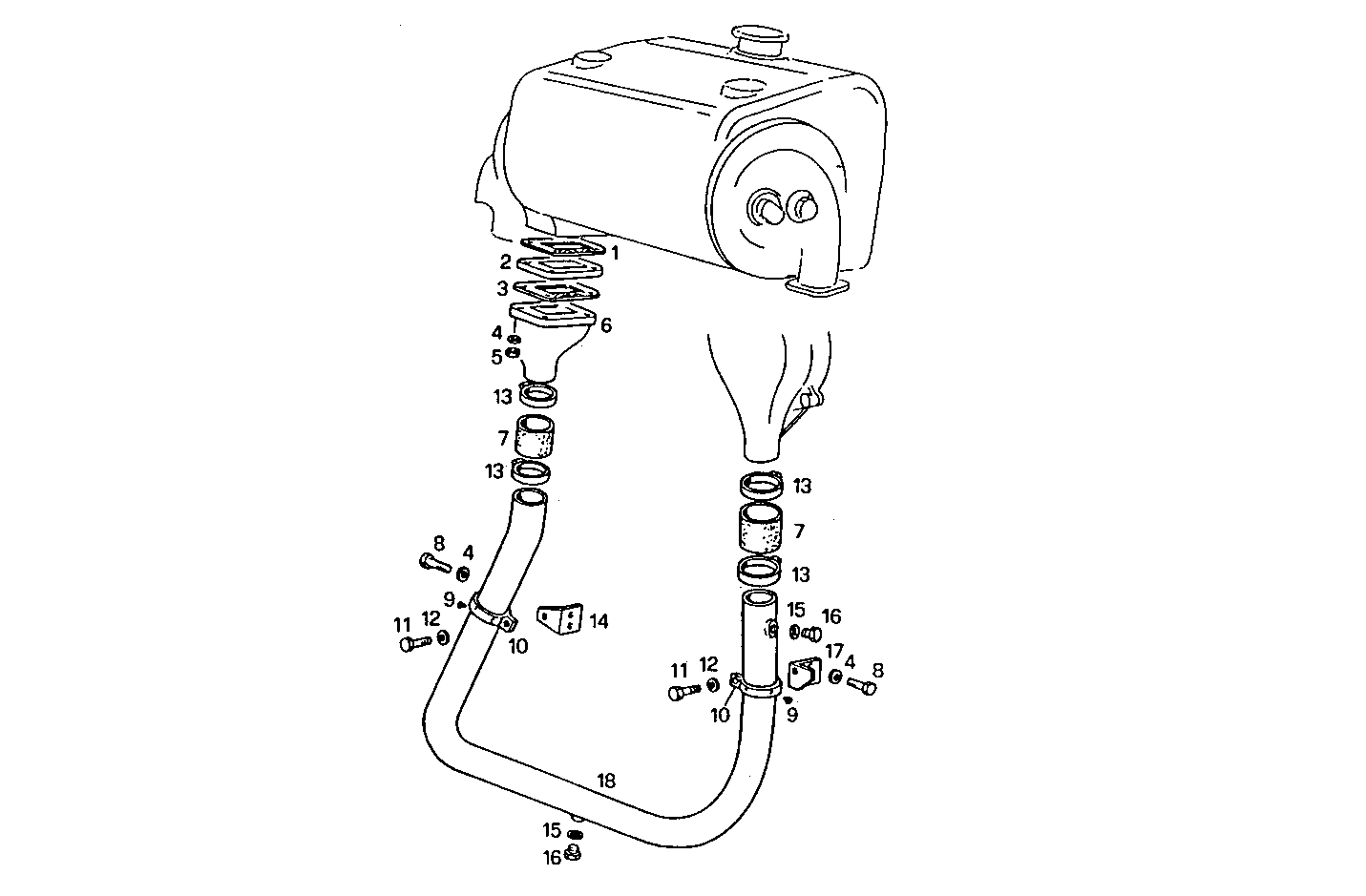

| Item |
Part number |
Description |
|
1 |
8008838 |
GASKET |
|
2 |
8102752 |
SPACING BAR |
|
3 |
8008839 |
GASKET |
|
4 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
5 |
17037931 |
HEXAGON NUT M8X1,25 |
|
6 |
4936326 |
WATER CONVEYOR |
|
7 |
8107383 |
RUBBER SLEEVE Ø60 MM |
|
8 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
9 |
1366290 |
RUBBER LUG |
|
10 |
4936328 |
CLIP ASSY |
|
11 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
12 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
13 |
17765093 |
CLIP Ø60/80 MM |
|
14 |
8009094 |
RETAINER |
|
15 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
16 |
16992440 |
THREADED PLUG M16X1,5 |
|
17 |
8009093 |
RETAINER |
|
18 |
8009092 |
WATER PIPE |
