8281M32.10

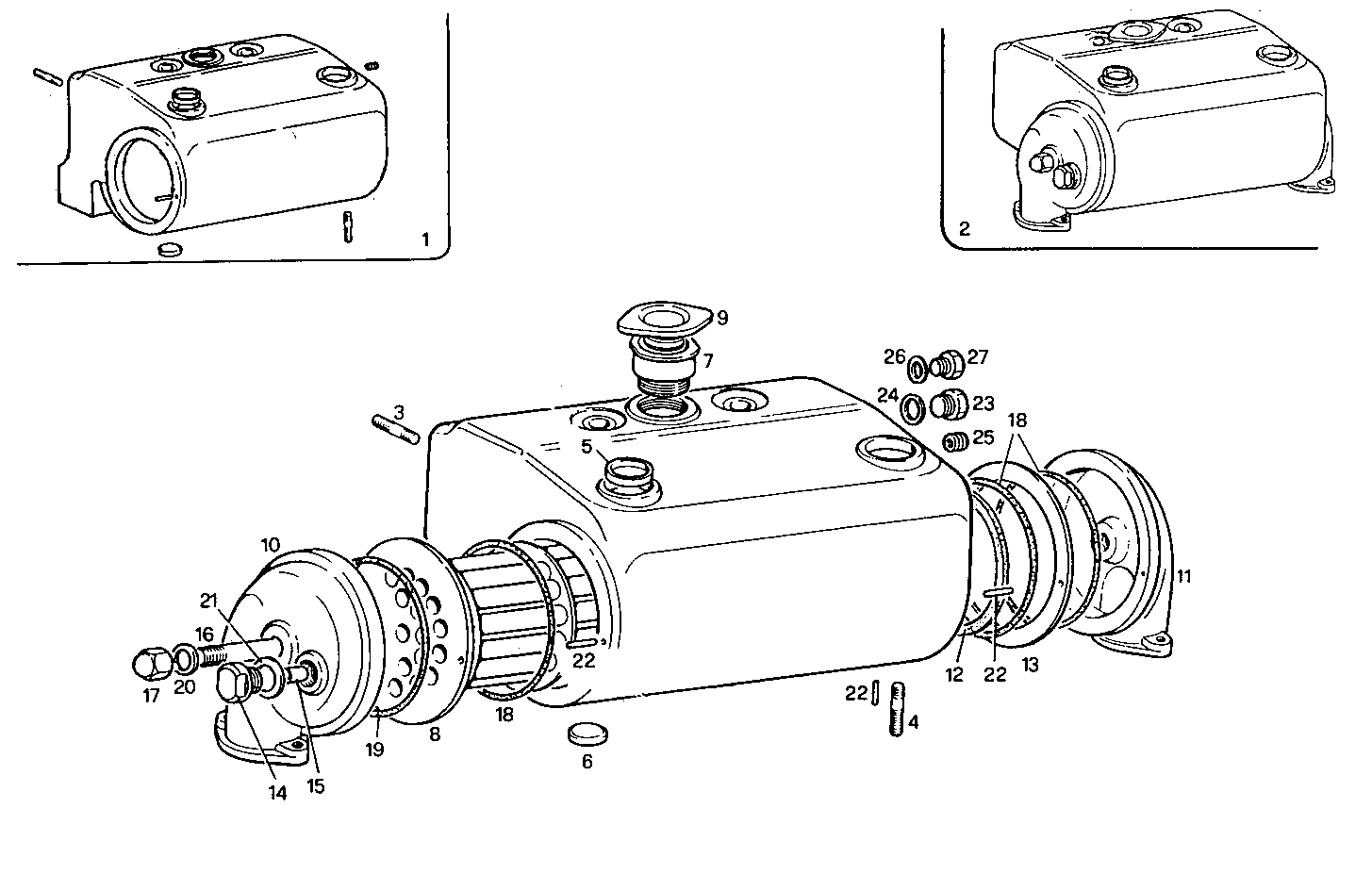

3370.019/02 FRESH WATER - SEA WATER HEAT EXCHANGER

Iveco/FPT FRESH WATER - SEA WATER HEAT EXCHANGER

Item Part number Description
1 8005324 HEAT EXANGER BODY ASSY
2 8005323 WATER/SEA WATER HEAT EXCH ASSY
3 13543521 STUD M8X16X25 MM
4 13543621 STUD M8X16X30 MM
5 14282970 LOCK PLUG Ø45 MM
6 14282770 LOCK PLUG Ø36 MM
7 4934521 PIPE SOCKET
8 4932010 TUBE STACK
9 4927808 PLUG 0,5 BAR
10 8109337 HEAT EXCHANG.COVER
11 8103480 HEAT EXCHANG.COVER
12 8005302 GASKET
13 8103454 SPACING BAR
14 8101771 PLUG M28
15 8101772 SACRIFICAL ANODE Ø20 MM
16 4918894 TIE ROD
17 4918893 NUT
18 14467381 O-RING Ø3,53X142,5 MM
19 14467581 O-RING SP=3,53 MM
20 10280060 WASHER Ø14X20 MM SP=1,5 MM
21 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
22 14163770 PIN
23 4595833 THREADED PLUG M20X1,5
24 10257460 SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...]
25 13582211 THREADED INSERT M8X1,25
26 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
27 10300540 PLUG M12X1,5
