8281M32.10

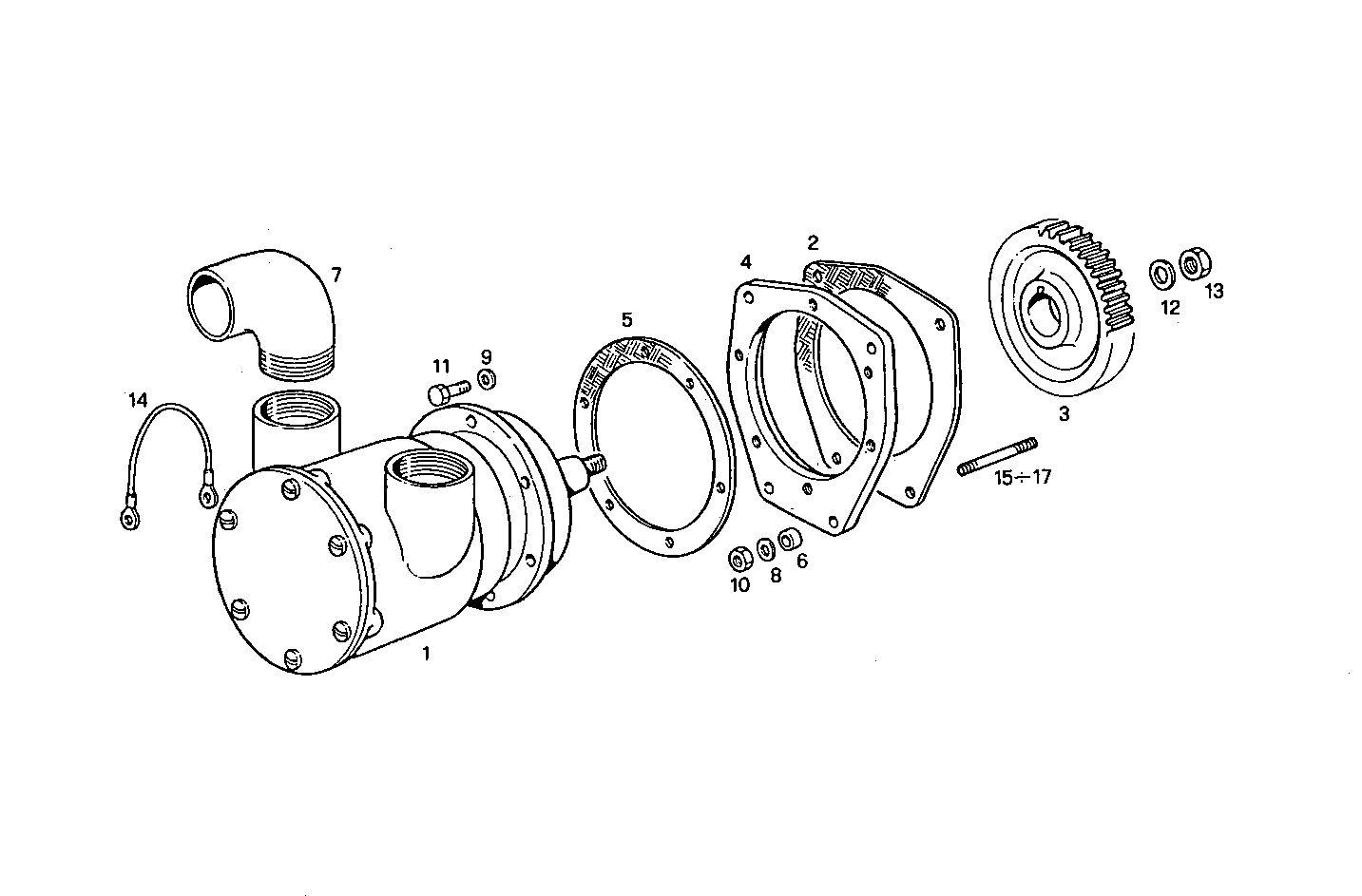

3380.008/01 SEA WATER PUMP - JABSCO
| Item | Part number | Description |
|---|---|---|
| 1 | 8107337 | SEA WATER PUMP ASSY JABSCO |
| 2 | 4863515 | FLAT ENGINE GASKET |
| 3 | 8107141 | GEAR |
| 4 | 8103037 | SPACING BAR |
| 5 | 8008952 | GASKET |
| 6 | 8101556 | SPACING BAR SP=13,00 MM |
| 7 | 8109665 | SEA WATER PIPE INLET |
| 8 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 9 | 11193879 | SPRING WASHER Ø8X16 MM |
| 10 | 12164711 | HEXAGON NUT M10X1,25 |
| 11 | 16043821 | HEXAGON BOLT M8X30 MM |
| 12 | 4709364 | LOCKING PLATE |
| 13 | 4709365 | HEXAGON NUT |
| 14 | 8109924 | ENGINE HARNESS GND |
| 15 | 13971921 | STUD M10X1,25X125 |
| 16 | 13953921 | STUD |
| 17 | 13546721 | STUD M10X1,25X40 |
