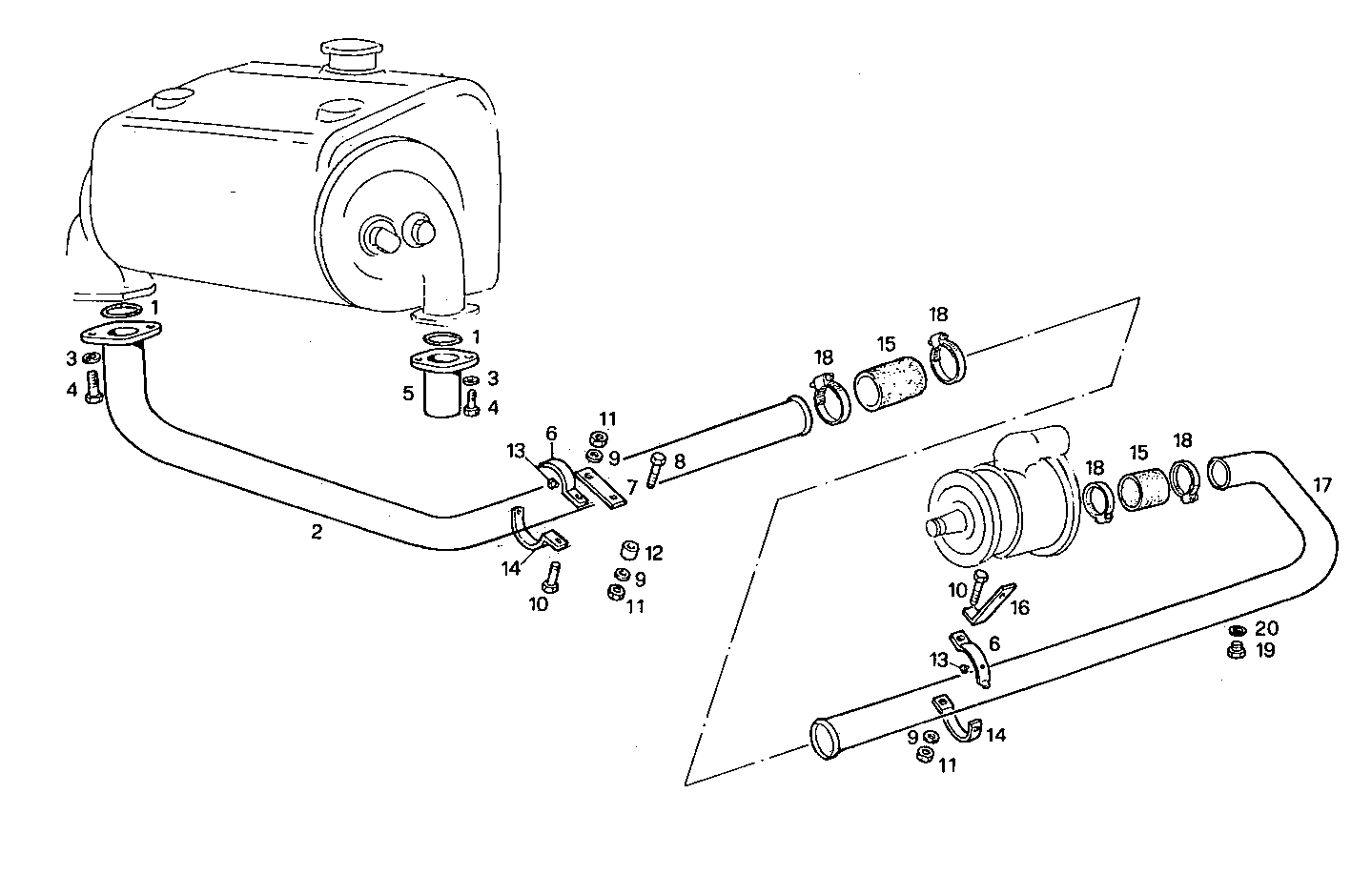

| Item |
Part number |
Description |
|
1 |
17289981 |
O-RING Ø53,57X3,53 MM |
|
2 |
8005730 |
WATER PIPE |
|
3 |
11190779 |
SPRING WASHER Ø12X24 SP=2,8 MM |
|
4 |
15540421 |
SCREW M12X1,25X30 |
|
5 |
8110995 |
WATER PIPE |
|
6 |
8113296 |
CLAMP Ø50 MM |
|
7 |
8108086 |
RETAINER |
|
8 |
16044021 |
HEXAGON BOLT M8X1,25X40 MM |
|
9 |
11193879 |
SPRING WASHER Ø8X16 MM |
|
10 |
16043621 |
HEXAGON BOLT M8X25 MM |
|
11 |
17037931 |
HEXAGON NUT M8X1,25 |
|
12 |
13605811 |
SPACER SP=1,5 MM |
|
13 |
1366290 |
RUBBER LUG |
|
14 |
8113295 |
CLAMP Ø50 MM |
|
15 |
4863962 |
WATER HOSE |
|
16 |
8100819 |
RETAINER |
|
17 |
8005732 |
WATER PIPE |
|
18 |
17764993 |
CLIP Ø50/70 MM |
|
19 |
11903140 |
PLUG M10X1,25 |
|
20 |
10260160 |
SEAL GASKET Ø10X14 MM SP=1 MM |
