8281M32.10

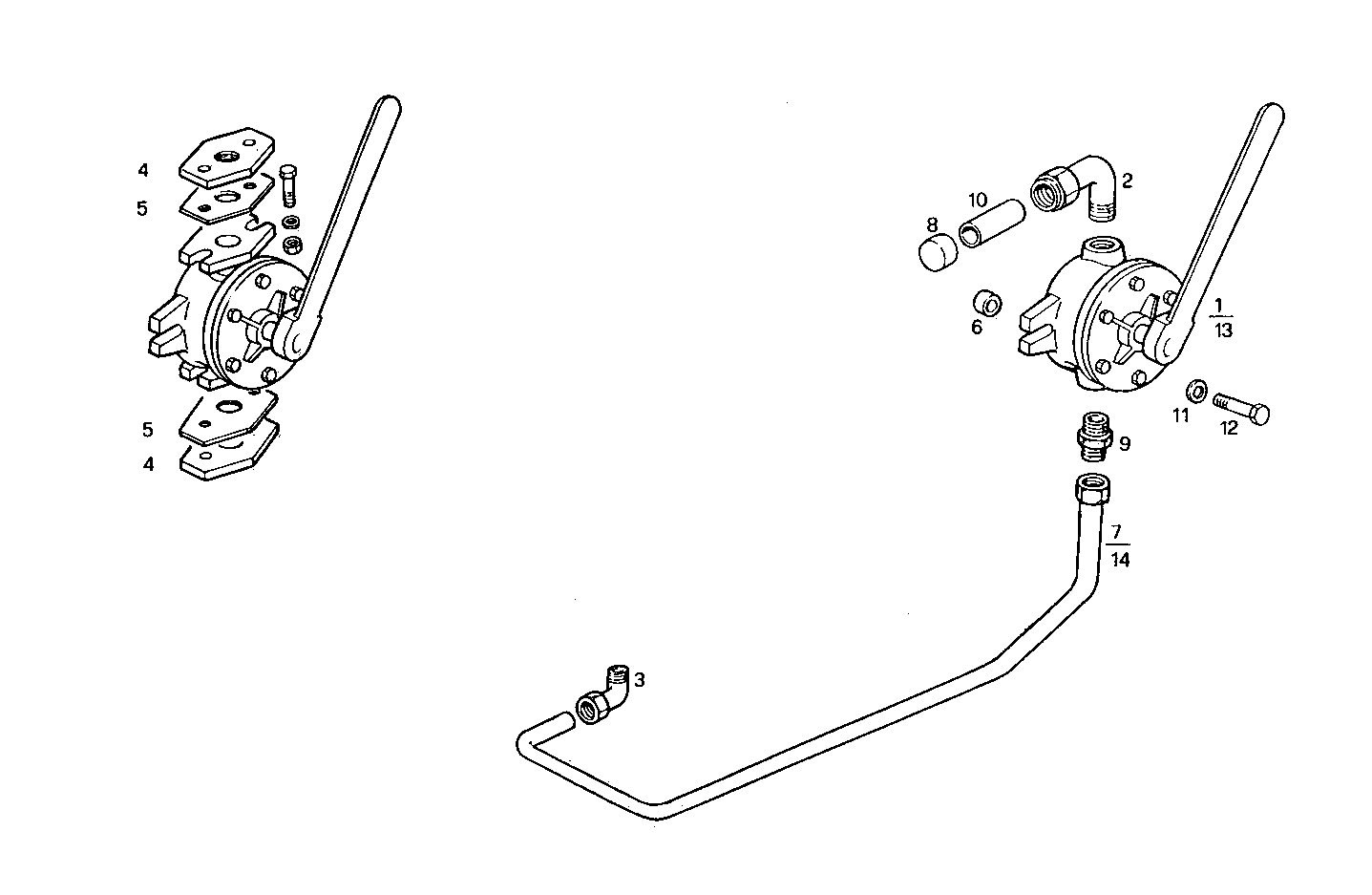

5510.016 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8103366 | HAND PUMP [up to 05-93] |
| 2 | 8111456 | PIPE SOCKET |
| 3 | 8111454 | PIPE SOCKET M22X1,5 |
| 4 | 8103585 | FLANGE |
| 5 | 8105075 | GASKET |
| 6 | 4932695 | WASHER |
| 7 | 8005455 | OIL LINE [up to 05-93] |
| 8 | 93013662 | PLUG |
| 9 | 8005782 | PIPE SOCKET |
| 10 | 8104754 | OIL LINE |
| 11 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 12 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 13 | 8012424 | MAR. ENG. SUCTION PUMP |
| 14 | 8015973 | OIL LINE [from 05-93] |
