8281M32.10

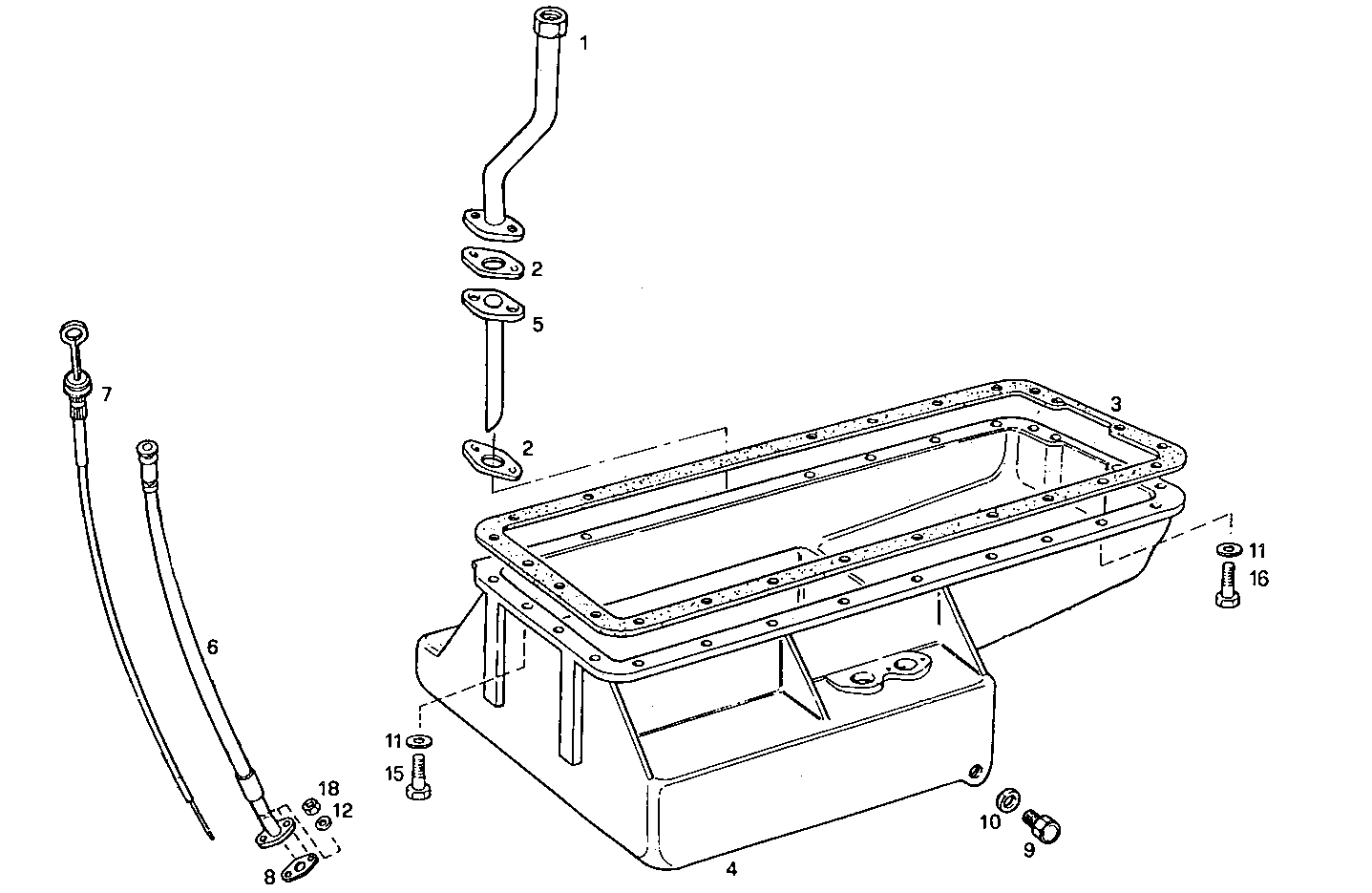

A01060002/01 OIL SUMP OVERSIZE - max longitudinal inclination 16°
| Item | Part number | Description |
|---|---|---|
| 1 | 8005456 | OIL LINE |
| 2 | 4863361 | GASKET |
| 3 | 98414700 | FLAT ENGINE GASKET |
| 4 | 4936329 | MARINE ENGINE OIL SUMP ASSY |
| 5 | 8105462 | OIL LINE |
| 6 | 8006838 | ROD GUIDE |
| 7 | 8006839 | OIL DIPSTICK |
| 9 | 14326540 | LOCK PLUG M22X1,5 |
| 10 | 10263460 | WASHER Ø22X28X1,5 MM |
| 11 | 17800574 | SPRING WASHER Ø10,5X21 MM |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 15 | 16288724 | SCREW |
| 16 | 16288524 | HEXAGON BOLT M10X1,25X30 MM |
| 18 | 17037931 | HEXAGON NUT M8X1,25 |
