8281M32.10

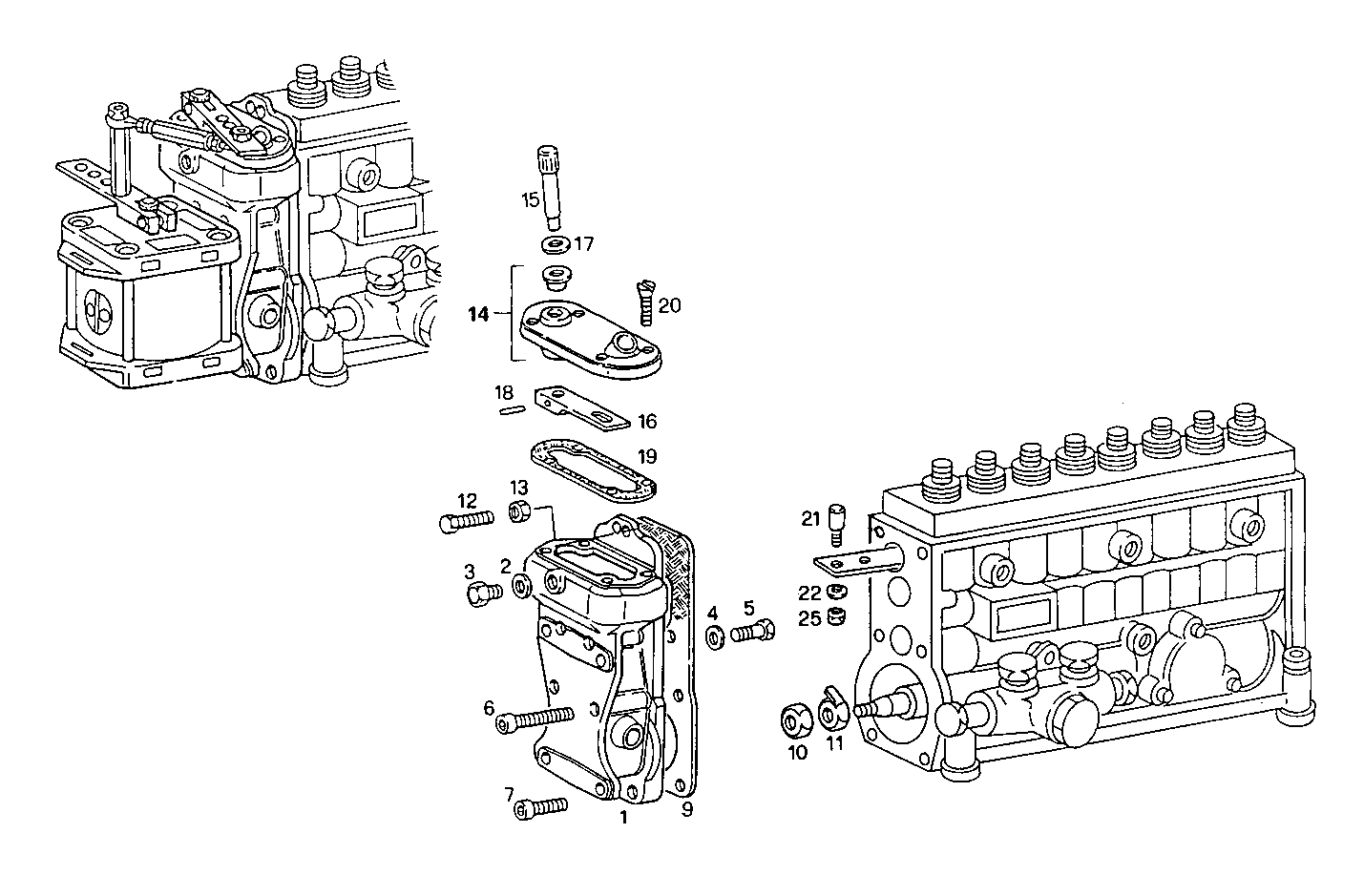

A28010038/01 ELECTRONIC GOVERNOR WOODWARD - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8007450 | TIMINGGEAR HOUSIN |
| 2 | 10278660 | SEAL GASKET Ø16X22 MM SP=1 MM |
| 3 | 16992411 | THREADED PLUG M16X1,5 |
| 4 | 17088474 | WASHER Ø6X12 MM |
| 5 | 4934404 | SCREW |
| 6 | 14309221 | SCREW M6X65 |
| 7 | 16689177 | SOCKET-HEAD SCREW M6X16 MM |
| 9 | 772578 | GASKET |
| 10 | 10717311 | NUT M12 |
| 11 | 8108716 | NUT |
| 12 | 8108715 | SCREW |
| 13 | 15896411 | HEXAGON NUT M5 |
| 14 | 8007452 | COVER ASSY |
| 15 | 8109731 | PIN |
| 16 | 8108601 | LEVER |
| 17 | 8109732 | WASHER |
| 18 | 14158570 | DOWEL PIN Ø2,3 MM |
| 19 | 8009910 | GASKET |
| 20 | 8109360 | SCREW M5X12 |
| 21 | 8108604 | PIN |
| 22 | 14497801 | WASHER Ø5X9,5 MM |
| 25 | 12574011 | NUT M4 |
