8281M32.10

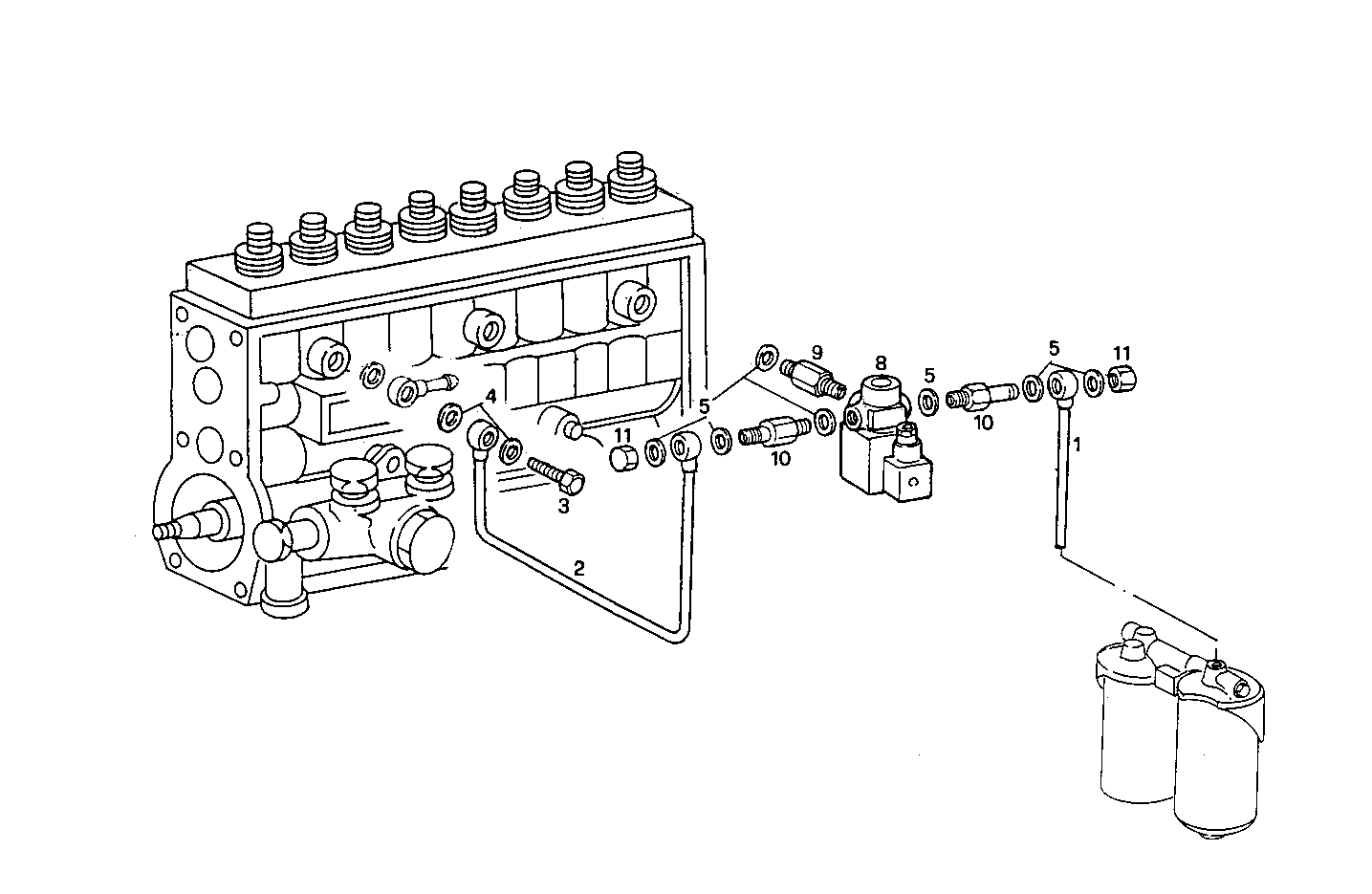

A28010038/03 ELECTRONIC GOVERNOR WOODWARD - 24V
Item | Part number | Description |
---|---|---|
1 | 8019850 | FUEL LINE |
2 | 8019849 | FUEL LINE |
3 | 61608319 | SCREW CONNECTOR |
4 | 98474308 | SEAL GASKET Ø14X22 MM |
5 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
8 | 8010441 | BUSH |
8 | 8108944 | ELECTROVALVE |
9 | 4929626 | PIPE SOCKET |
10 | 4929627 | PIPE SOCKET |
11 | 10182811 | PLUG |
