8281M32.10

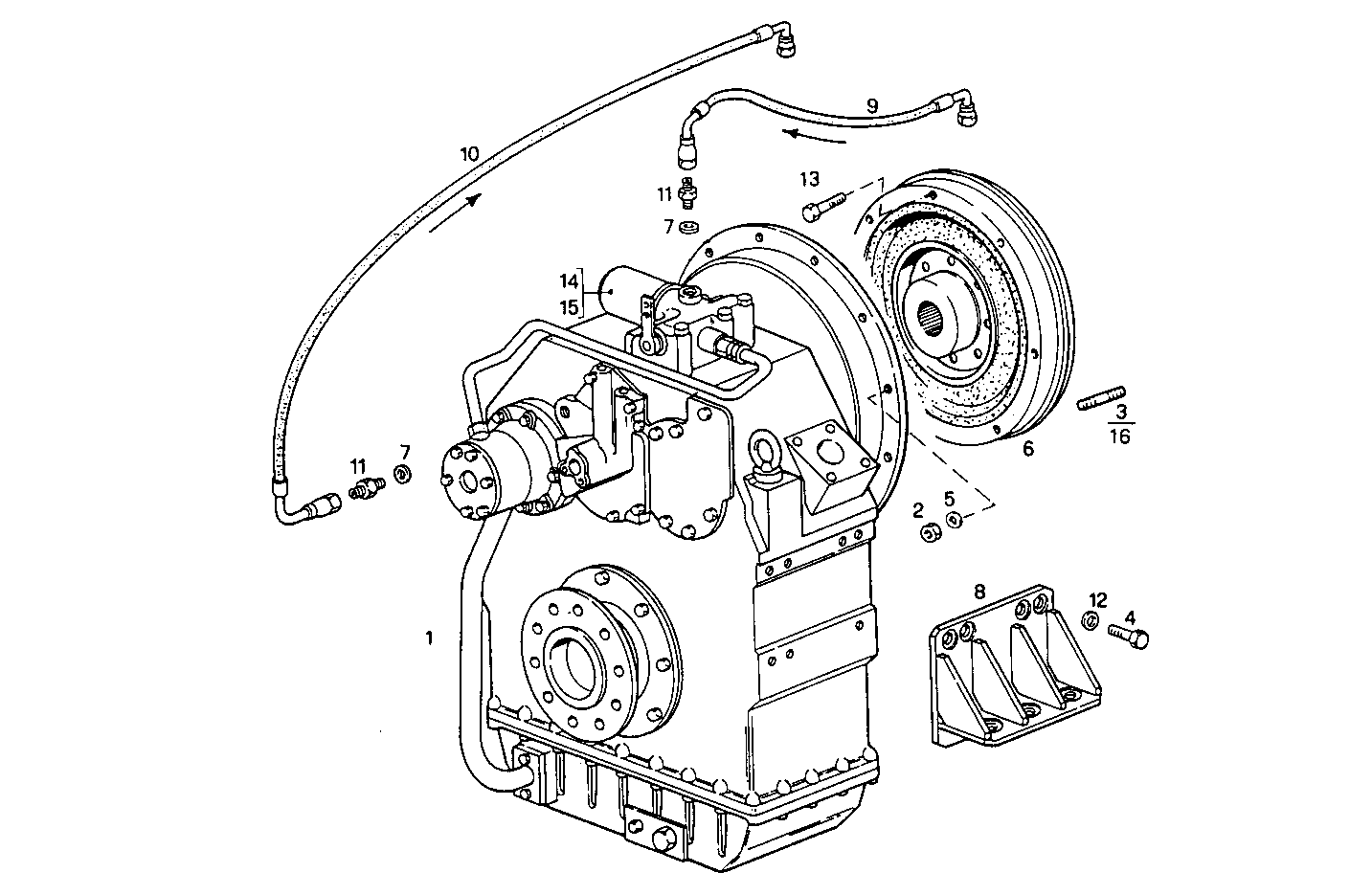

A51870020/01 MARINE GEAR ZF-MPM IRM 350 - ratio 3.968:1

Iveco/FPT MARINE GEAR ZF-MPM IRM 350

Item Part number Description
1 8026509 MARINE GEAR 3.968:1 [from 05-98]
2 17038221 HEXAGON NUT M10
3 13454021 STUD M10X25X45 MM
4 4932875 SCREW M16X2X45
5 17090174 SPRING WASHER Ø10X20 MM
6 8024603 FLEXIBLE COUPLING [from 06-97]
7 10303360 SEAL GASKET Ø27,3 MM [up to 15-12-03]
8 8110996 SUPPORT
9 8006875 HOSE
10 8013774 HOSE
11 8015111 PIPE SOCKET
12 11194279 SPRING WASHER Ø17,4 MM
13 14274421 LOCKING SCREW M8X60 MM
14 8007794 OIL FILTER CARTRIDGE ALTERNATIVE USE
15 8007795 OIL FILTER CARTRIDGE ALTERNATIVE USE
16 13454321 STUD M10X25X60
