8281M32.30

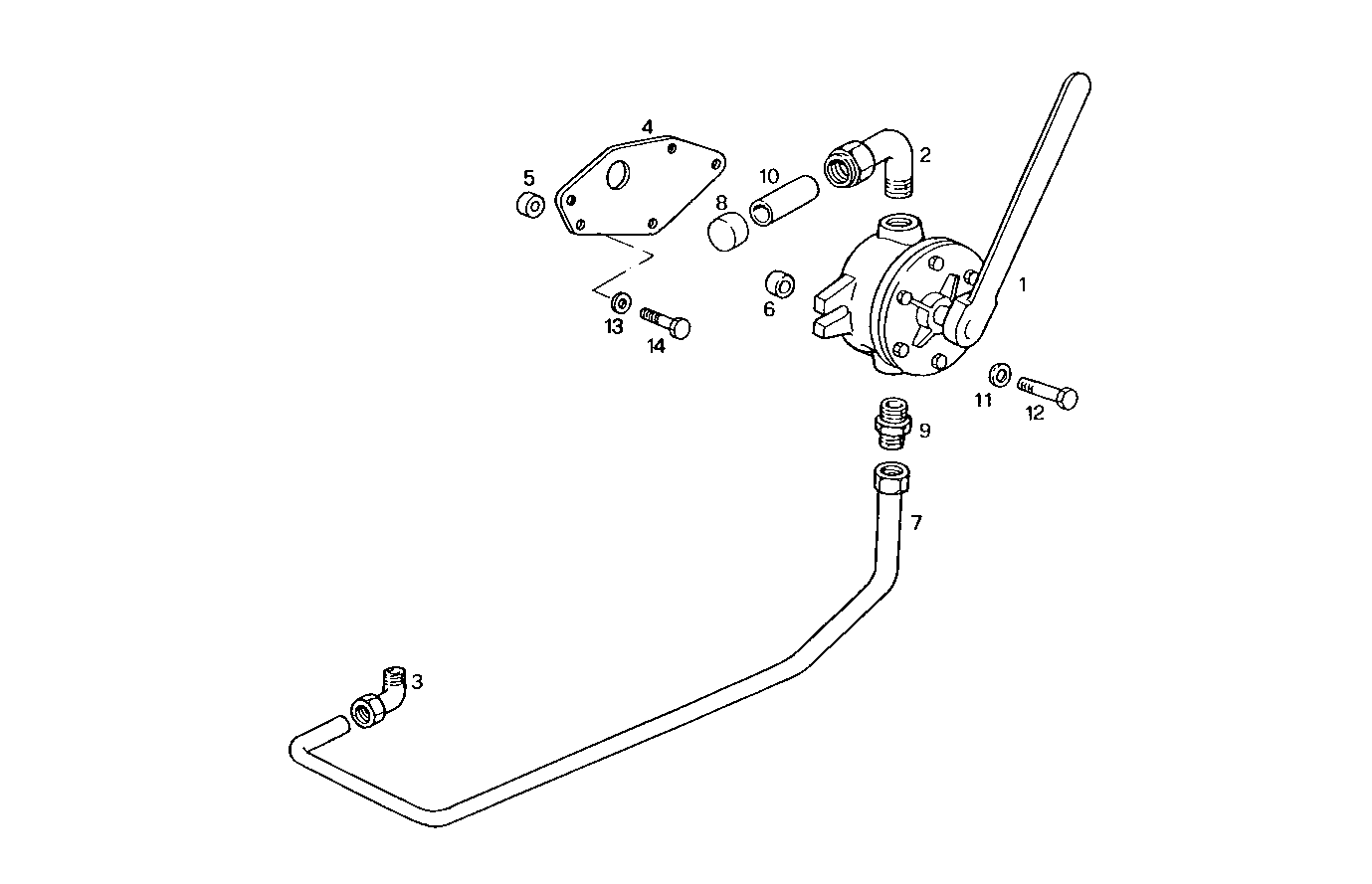

5510.040 OIL OUTLET PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8012424 | MAR. ENG. SUCTION PUMP |
| 2 | 8111456 | PIPE SOCKET |
| 3 | 8111454 | PIPE SOCKET M22X1,5 |
| 4 | 8025395 | RETAINER |
| 5 | 17816314 | SPACING BAR Ø8,5X18 MM SP=15 MM |
| 6 | 4932695 | WASHER |
| 7 | 8025425 | OIL LINE |
| 8 | 93013662 | PLUG |
| 9 | 8005782 | PIPE SOCKET |
| 10 | 8104754 | OIL LINE |
| 11 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 12 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 14 | 16045821 | HEXAGON BOLT M8X130 MM |
