8281M32.30

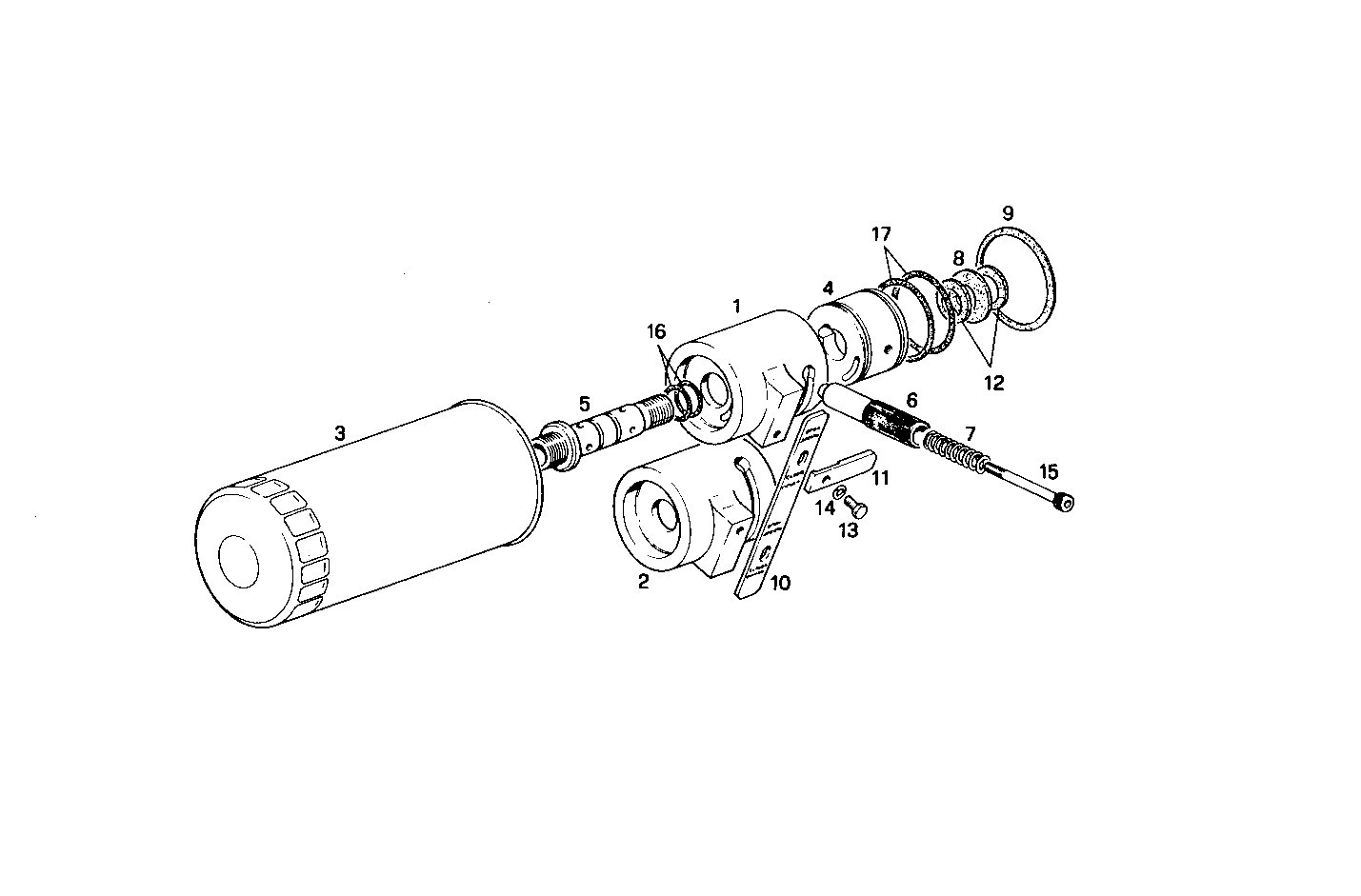

A17040001 DOUBLE OIL FILTER - remov. with eng. running from down-side
| Item | Part number | Description |
|---|---|---|
| 1 | 8100280 | OIL FILTER SUPPORT |
| 2 | 8100281 | OIL FILTER SUPPORT |
| 3 | 1907570 | OIL FILTER CARTRIDGE |
| 4 | 8100282 | VALVE HOUSING |
| 5 | 8100283 | SCREW CONNECTOR |
| 6 | 8101890 | HANDLE BALL |
| 7 | 8100285 | SPRING |
| 8 | 8100286 | SPRING |
| 9 | 8009899 | O-RING |
| 10 | 8100288 | PLATE |
| 11 | 8100289 | PLATE |
| 12 | 4544153 | SHIM SP=0,2 MM |
| 13 | 10902221 | HEXAGON BOLT M6X16 MM |
| 14 | 11197771 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
| 15 | 14309020 | CYLIND-HEAD SCREW M8X70 MM |
| 16 | 17282081 | O-RING Ø20,2 MM SP=2,62 MM |
| 17 | 14460081 | O-RING SP=2,62 MM |
