8281Si10.00

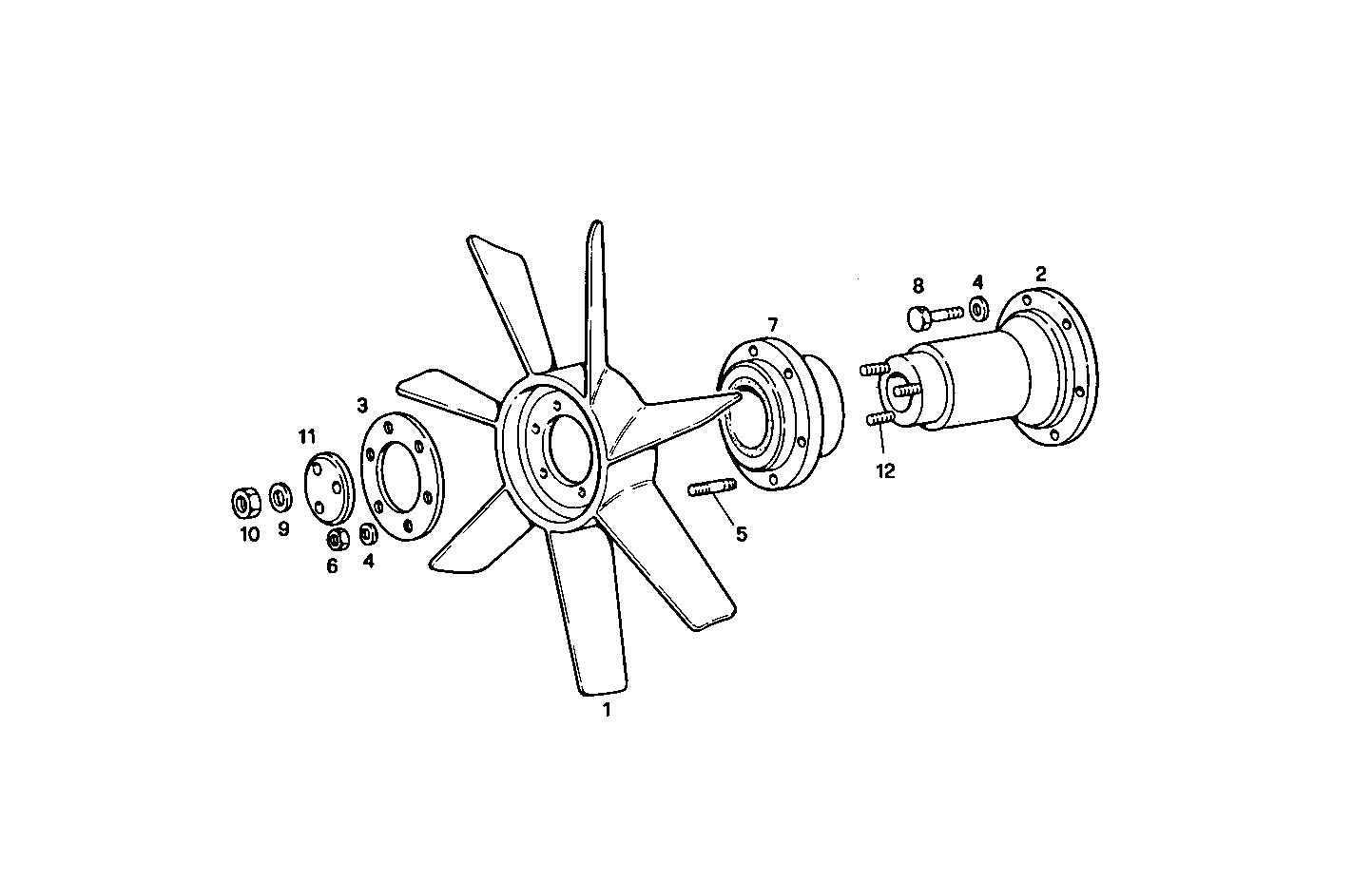

A08000021 PULLER FAN - on engine axis

Iveco/FPT PULLER FAN

Item Part number Description
1 4936057 FAN Ø700 MM
2 8108874 HUB
3 4933279 RING
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 16729224 STUD M8X16 MM
6 17037931 HEXAGON NUT M8X1,25
7 8108850 FLEXIBLE COUPLING
8 16043721 HEXAGON BOLT M8X28 MM
9 11190579 SPRING WASHER Ø10X20 MM SP=2,3
10 17038221 HEXAGON NUT M10
11 8108876 SPACING BAR
12 13546421 STUD M10X1,25X48 MM
