8281Si10.00

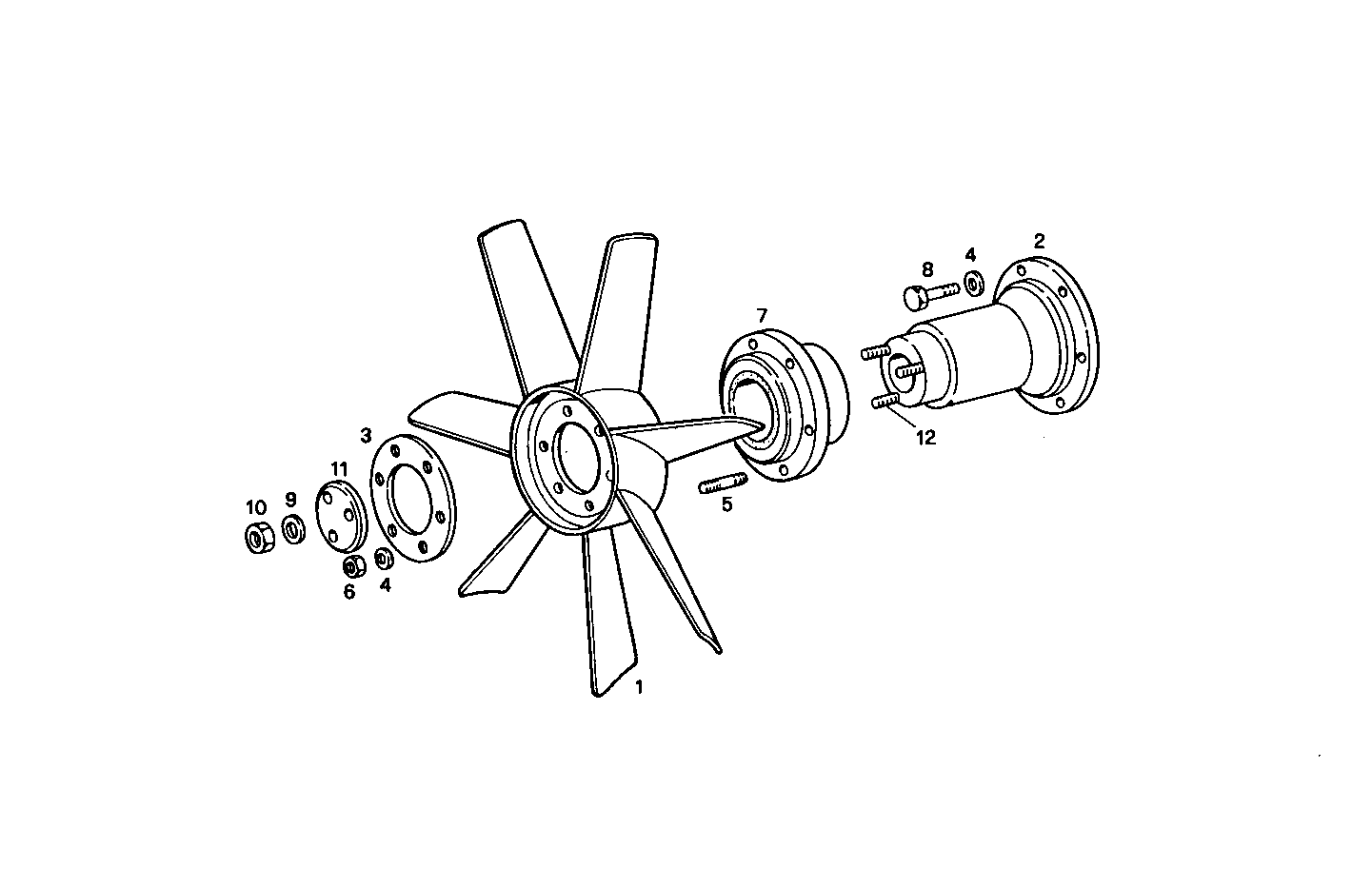

A08010019 PUSHER FAN - on engine axis
Item | Part number | Description |
---|---|---|
1 | 8021733 | FAN Ø700 MM |
2 | 8108874 | HUB |
3 | 4933279 | RING |
4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
5 | 16729224 | STUD M8X16 MM |
6 | 17037931 | HEXAGON NUT M8X1,25 |
7 | 8108850 | FLEXIBLE COUPLING |
8 | 16043721 | HEXAGON BOLT M8X28 MM |
9 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
10 | 17038221 | HEXAGON NUT M10 |
11 | 8108876 | SPACING BAR |
12 | 13546421 | STUD M10X1,25X48 MM |
