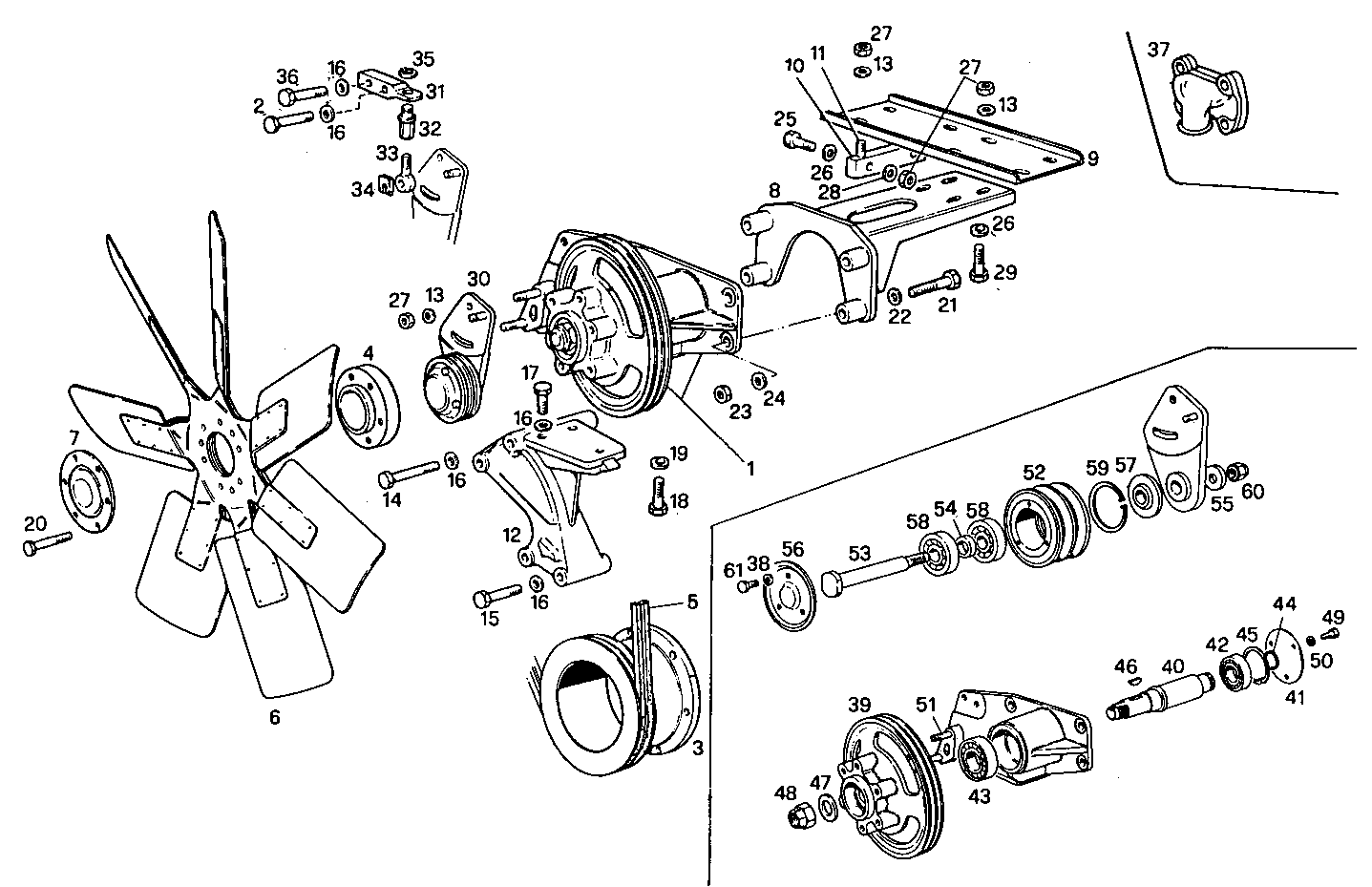

| Item |
Part number |
Description |
|
1 |
8106873 |
SUPPORT ASSY |
|
2 |
11307021 |
HEXAGON BOLT M10X40 MM |
|
3 |
8106657 |
PULLEY |
|
4 |
8106900 |
SPACING BAR |
|
5 |
8106898 |
V-BELT KIT |
|
6 |
8106871 |
FAN Ø914 MM |
|
7 |
4722298 |
COVER |
|
8 |
8110117 |
SUPPORT |
|
9 |
8110118 |
SUPPORT |
|
10 |
8110119 |
SUPPORT |
|
11 |
13449521 |
STUD M10X15X25 |
|
12 |
8106666 |
SUPPORT |
|
13 |
4513436 |
SUPPORT RING Ø10X21X2 MM |
|
14 |
15972621 |
HEXAGON BOLT M10X1,25X140 MM |
|
15 |
15972021 |
HEXAGON BOLT M10X1,25X110 MM |
|
16 |
11190579 |
SPRING WASHER Ø10X20 MM SP=2,3 |
|
17 |
11306921 |
SCREW M10X1,25X30 |
|
18 |
15541021 |
HEXAGON BOLT M12X1,25X60 MM |
|
19 |
11190879 |
SPRING WASHER Ø12X30X3,0 MM |
|
20 |
14234121 |
LOCKING SCREW |
|
21 |
15541421 |
HEXAGON BOLT M12X1,25X80 MM |
|
22 |
11190779 |
SPRING WASHER Ø12X24 SP=2,8 MM |
|
23 |
16105011 |
HEXAGON NUT M12X1,25 |
|
24 |
10730701 |
WASHER Ø12,2 MM |
|
25 |
15888821 |
HEXAGON BOLT M10X1,25X70 MM |
|
26 |
11190679 |
SPRING WASHER Ø10X27 MM SP=2,5 |
|
27 |
12574511 |
NUT M10X1,25 |
|
28 |
10730501 |
WASHER Ø10,2 MM |
|
29 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
30 |
8106872 |
BELT TENSIONER ASSY |
|
31 |
8110133 |
SUPPORT |
|
32 |
4699000 |
NUT |
|
33 |
4699001 |
TIE ROD |
|
34 |
4699549 |
CLIP |
|
35 |
13397576 |
CIRCLIP |
|
36 |
11343821 |
HEXAGON BOLT M10X1,25X50 MM |
|
37 |
4777115 |
THERM.BODY COVER [up to 264992] |
|
38 |
11193879 |
SPRING WASHER Ø8X16 MM |
|
39 |
8106869 |
PULLEY |
|
40 |
8102948 |
SHAFT |
|
41 |
8105907 |
COVER |
|
42 |
28996680 |
DRIVE BEARING |
|
43 |
28996690 |
BALL BEARING |
|
44 |
11067876 |
CIRCLIP |
|
45 |
11061576 |
CIRCLIP Ø76,5 MM |
|
46 |
10206420 |
KEY |
|
47 |
10731301 |
WASHER |
|
48 |
14044471 |
CASTLE NUT M24X1,5 |
|
49 |
10977721 |
HEXAGON BOLT M5X14 MM |
|
50 |
12601171 |
WASHER |
|
51 |
13546521 |
STUD M10X1,25X20X30 MM |
|
52 |
4606783 |
PULLEY |
|
53 |
4606786 |
CENTERING PIN |
|
54 |
4684446 |
RING |
|
55 |
4606789 |
WASHER |
|
56 |
4627792 |
COVER |
|
57 |
4684447 |
SPACING BAR |
|
58 |
28996660 |
BALL BEARING |
|
59 |
11060576 |
CIRCLIP Ø56,2 MM |
|
60 |
14043971 |
CASTLE NUT M14X1,5 |
|
61 |
16043124 |
SCREW M8X14 MM |
